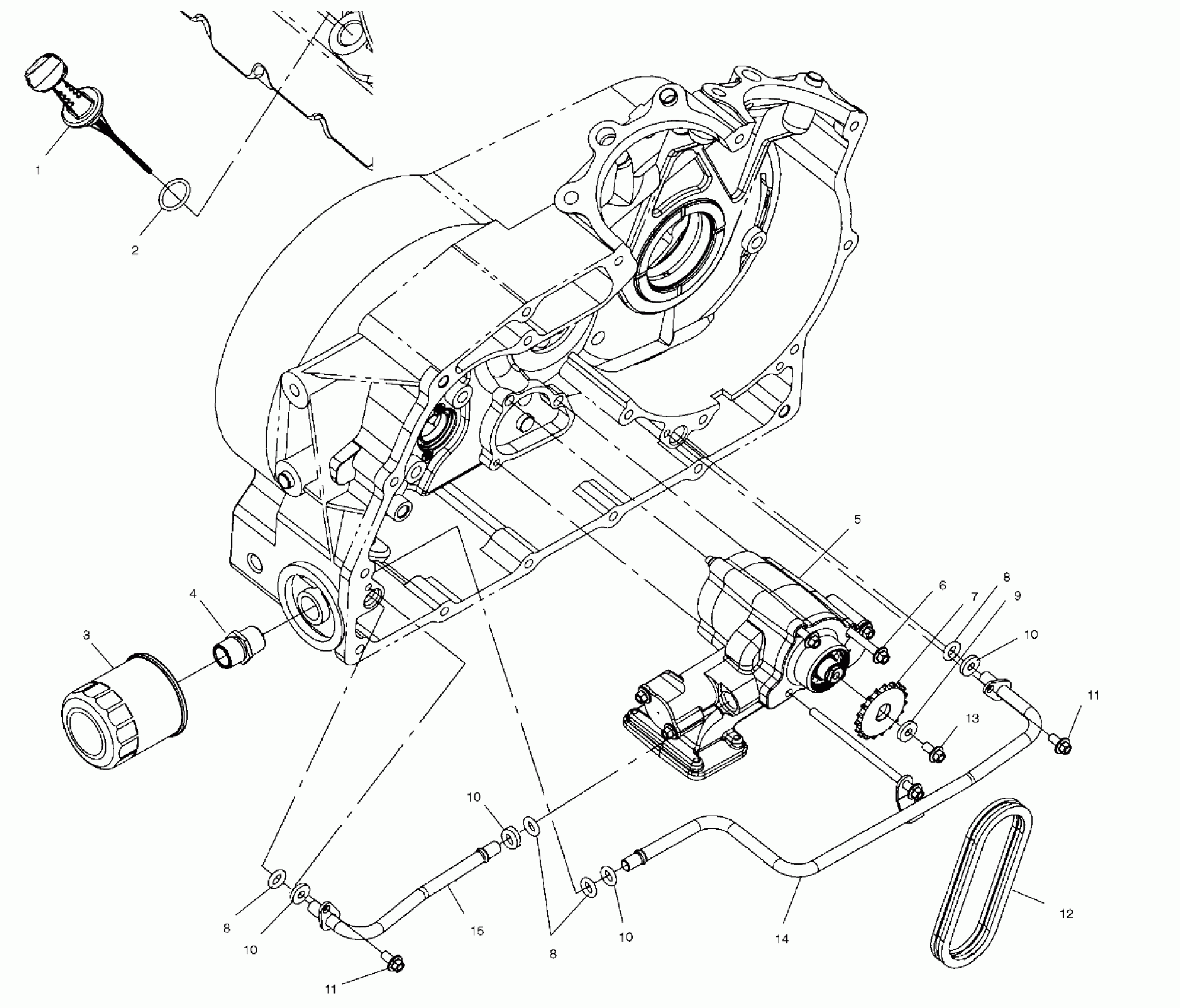

Polaris STANDARD CRUISER - V00CB15DC ENGINE, OIL PUMP MOUNTING - V00CB15LE (4952565256C010) Diagram

#

Description
Price

1

CAP-OIL FILL/DIPSTICK(PLASTIC)

5433327

$12.30

2

O-RING-17.12X2.62,0600083

5411331

$1.60

3

FILTER, OIL(10)

3084963

$11.90

4

NIPPLE,OIL FILTER

2540023

$27.78

5

Asm., Oil Pump (See Footnote) (See Oil Pump Pg. C11 for Details)

----

Unavailable

6

SCREW,HXFLHD,M6X115

7517256

$10.32

7

SPKT,19T,4W,OILPUMP

3221082

$35.08

8

O-RING

5411231

$1.98

8

O-RING

5411231

$1.98

8

O-RING

5411231

$1.98

9

WASHER,FLAT(10)

7556032

Unavailable

10

WASHER [No Longer Available]

7556026

$10.46

10

WASHER [No Longer Available]

7556026

$10.46

10

WASHER [No Longer Available]

7556026

$10.46

10

WASHER [No Longer Available]

7556026

$10.46

11

SCREW,HXFLGHD,M6X12

7517257

$9.52

11

SCREW,HXFLGHD,M6X12

7517257

$9.52

12

CHAIN,OILPUMPDRIVE,8X42 LINK

3224062

Unavailable

13

SCREW

7517633

$5.92

14

TUBE,OIL,FILTER/CRANKCASE

5242222

$26.98

15

TUBE,OIL,PUMP/FILTER

5242223

$36.03
