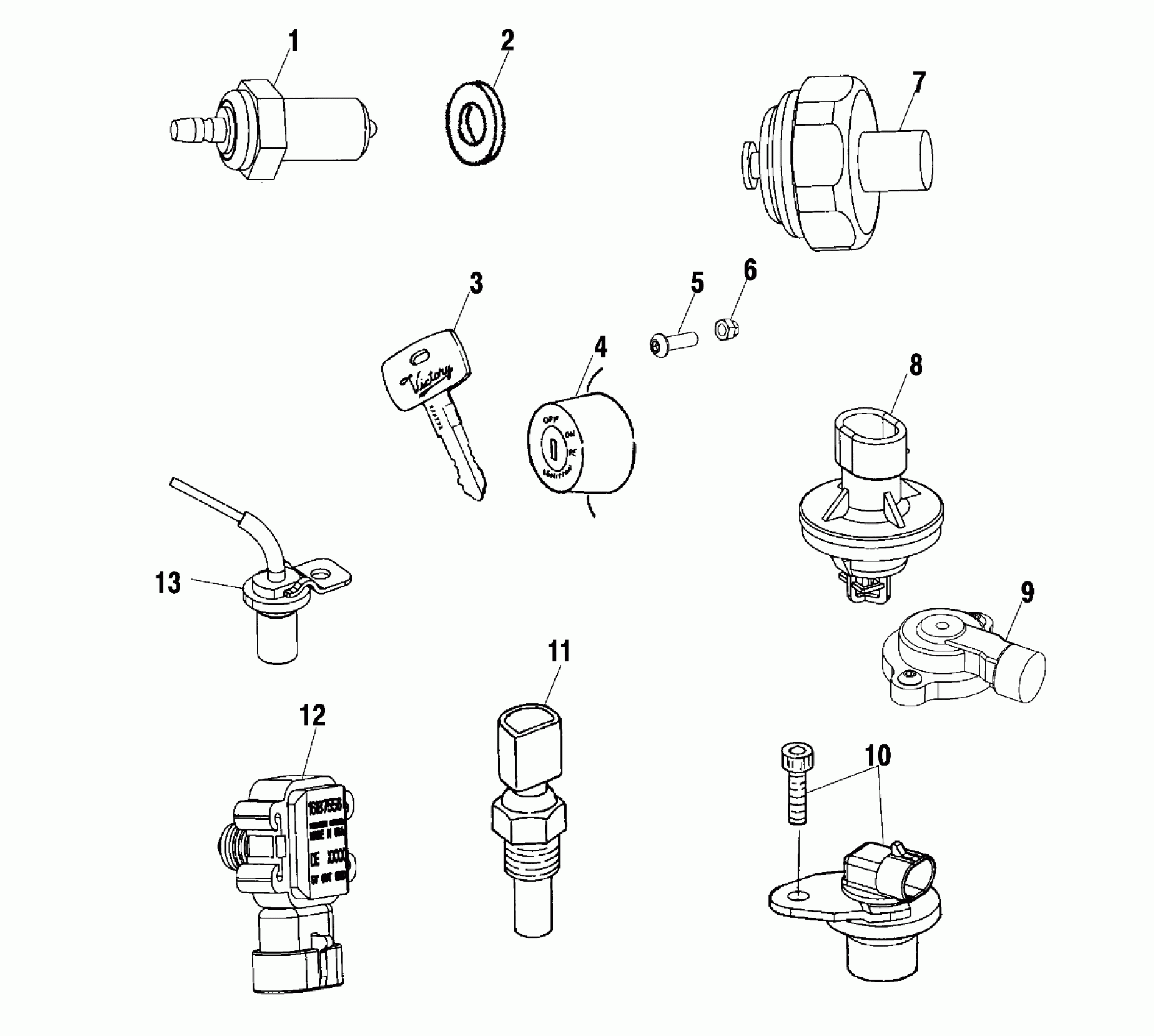

Polaris STANDARD CRUISER - V00CB15DC ELECTRICAL, SENSORS and SWITCHES - V00CB15DC (4952565256B011) Diagram

SWITCH,NEUTRAL INDIC.

4110235

Unavailable

WHSR,FL,.562X.402X.050

7556154

$2.87

KEY,IGNITION(10)BLANK

4110239

Unavailable

LOCK,FR.FORK Substituted by 4110253

7010085

Unavailable

LOCK,SEAT [No Longer Available]

7010088

Unavailable

SWITCH&KEY ASM,IGNITION Substituted by 4010135 (Incl. Seat Lock, Fork Lock, Ignition Switch, Seat Lock Latch)

4110253

Unavailable

LOCK,ASM,SWITCH,KEY

4010270

Unavailable

LATCH-SEAT LOCK

7080856

$63.71

SCREW (10)

7517516

$6.98

NUT, HEXHD(10)

7547119

$0.90

SENSOR,OIL PRESSURE

4110211

Unavailable

SENSOR,AIR TEMP

4040077

Unavailable

SENSOR-THROTTLE POSITION,V92C Substituted by 1253233

4010225

Unavailable

O-RING,THROTTLE POSITION [No Longer Available]

1500201

$2.87

SCREW,SOCHD,M6X15

7517272

$7.19

SENSOR,CRANKSHAFT POSITION

4110217

Unavailable

SENSOR,ENG.TEMP

4040076

Unavailable

SENSOR,MAP

4040078

Unavailable

SENSOR,VEHICLE,SPEED

4010268

$147.62
