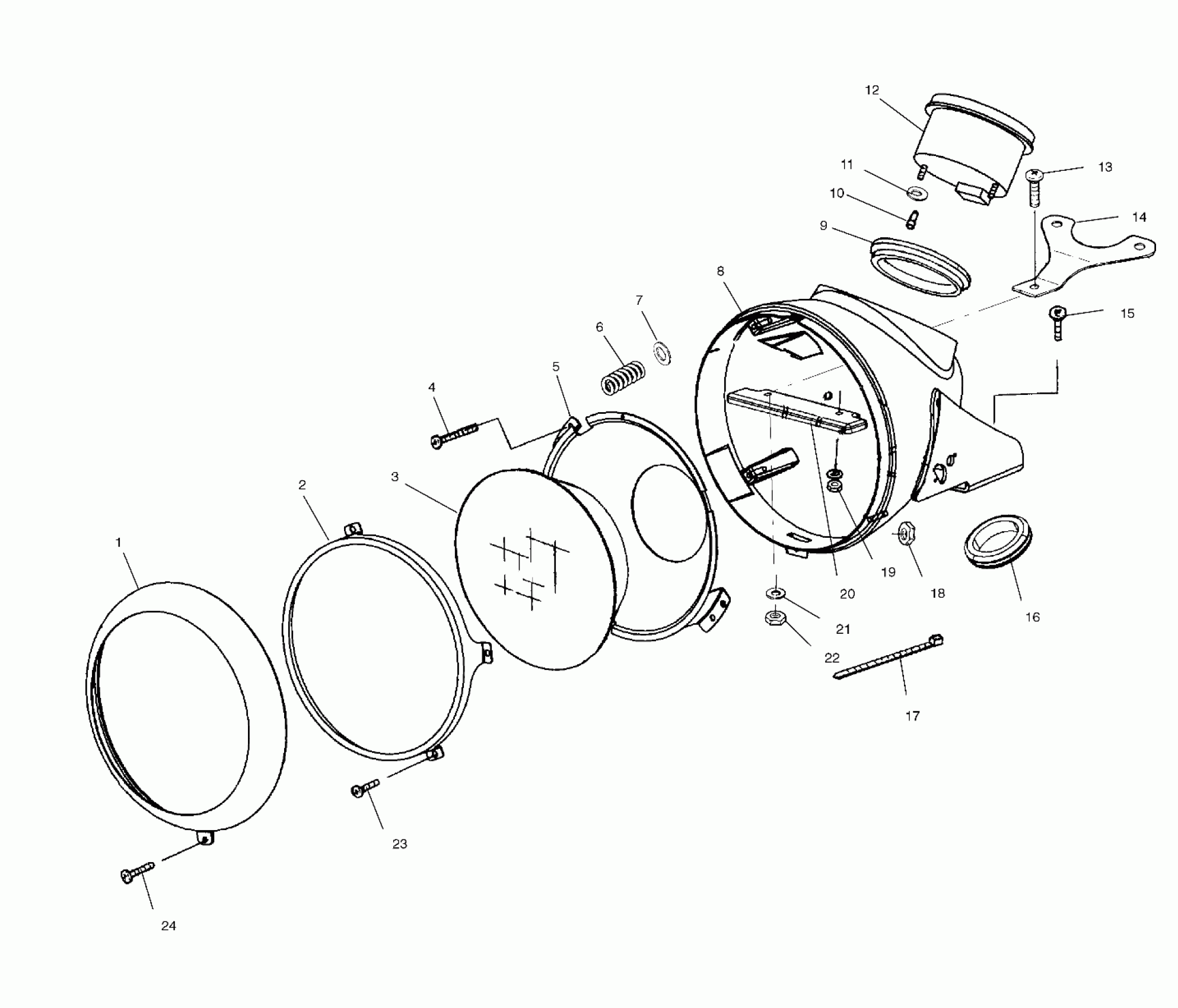

Polaris STANDARD CRUISER - V00CB15DC ELECTRICAL, HEADLIGHT - V00CB15DC (4952565256B001) Diagram

#

Description
Price

1

BEZEL,HEADLAMP

1080019

Unavailable

2

RING,H/L.RETAINING

5241850

$90.99

3

HEADLIGHT,SEALEDBEAM,7 1/4"

4010160

Unavailable

4

SCREW,(10)SOCHD,M5X30

7517728

$5.40

5

MNT,HOUSING,INNER,HD.LAMP

5244505

$118.08

6

SPRING-ADJUSTER HEADLIGHT(10)

7041871

Unavailable

7

WSHR,M5X.8,(10)RTNR,PLSTC

7556127

$2.17

8

HEADLIGHT HOUSING,ASM. (Incl. 18)

1013103

Unavailable

9

Gasket, Speedometer

5811529

$17.94

10

LAMP,INDICATOR(10) Substituted by 2410102

2410195

Unavailable

11

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

12

SPEEDO/TACH GAUGE ASM. Substituted by 3280381

3280261

Unavailable

12

GAUGE,SPEEDO/TACH,CAN Substituted by 3280384 (Can.)

3280346

$434.99

13

SCREW,BTNHD,M6X20

7517504

$2.60

14

BRKT,HEADLIGHT STIFFENING

5243286

$27.94

15

SCR-SOCHD,M8X16,0600084

7517523

Unavailable

16

GROMMET,H/L HSG/WIRE

5411350

$4.37

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

NUT (10)

7547126

$3.19

19

NUT,NYLOC,M6,0600110

7547106

$3.19

20

RETAINER,SPEEDO,BLK.

5211872-067

$58.33

21

WASHER (10)

7556088

$4.79

22

NUT,FLEXLOC,M6 Substituted by 7547120

7547079

Unavailable

23

SCREW

7517681

$2.60

24

SCREW,SS.

7517368

$1.30
