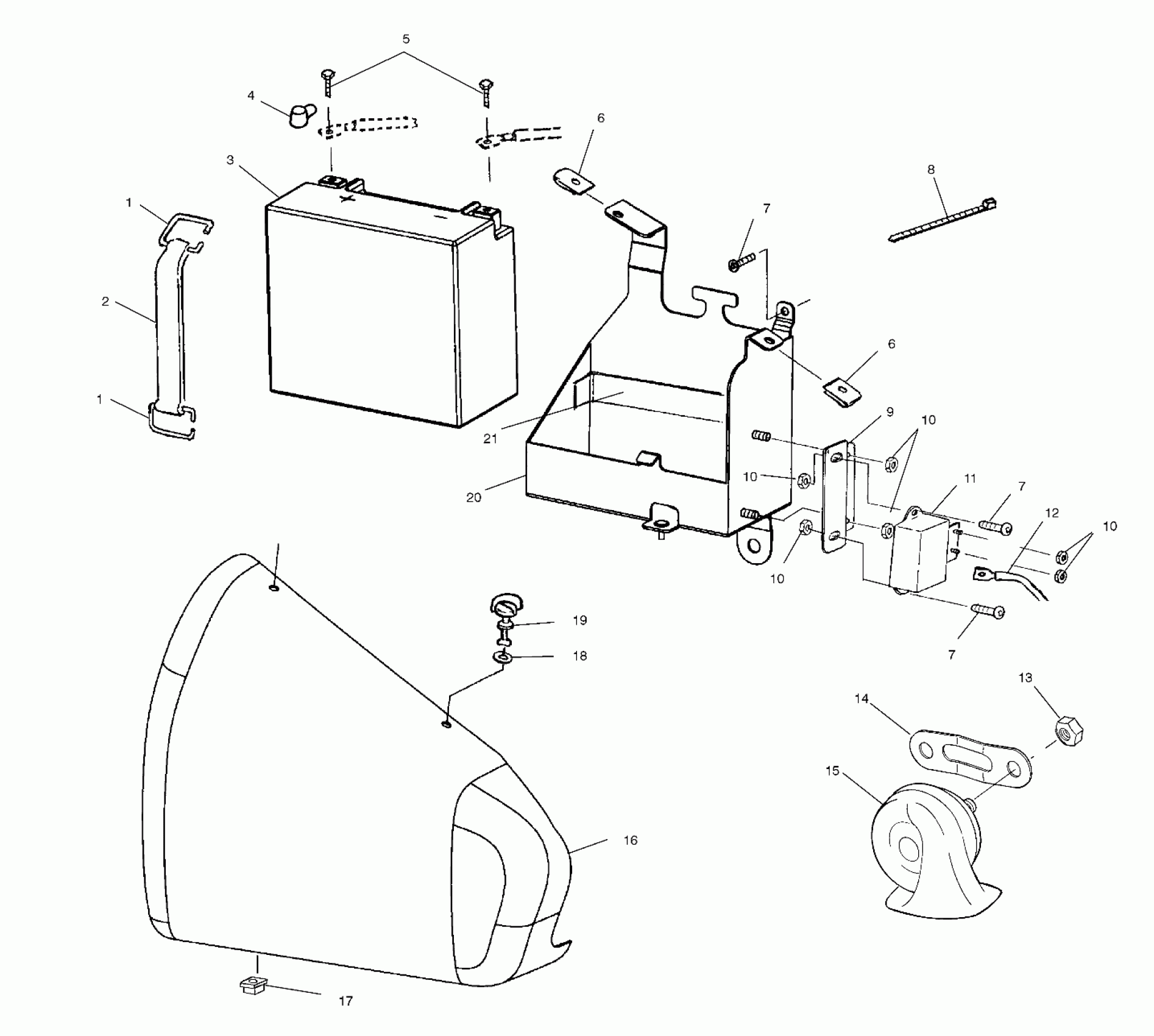

Polaris STANDARD CRUISER - V00CB15DC ELECTRICAL, BATTERY BOX - V00CB15DC (4952565256B006) Diagram

#

Description
Price

1

HOOK,'D',SST/SS,(10)

5224472

$2.19

1

HOOK,'D',SST/SS,(10)

5224472

$2.19

2

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

3

BATTERY,(2)

4140011

Unavailable

4

BOOT,BTTRY CABLE,RED,POS

5411570

$7.19

5

BATTERY BOLT KIT

2201357

$11.19

6

RECEPTACLE,1/4 TURN(10)

7080783

Unavailable

6

RECEPTACLE,1/4 TURN(10)

7080783

Unavailable

7

SCREW

7517704

$7.19

7

SCREW

7517704

$7.19

7

SCREW

7517704

$7.19

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

9

DESC NOT_AVAILABLE

5244277

Unavailable

10

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

10

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

10

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

10

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

11

RELAY,STARTER,SEIMENS

2410181

Unavailable

12

CABLE,STARTER/RELAY

4010309

$49.21

13

NUT (10)

7547121

Unavailable

14

BRKT,HORN,BLK.

5311055-067

$57.14

15

HORN

4040072

$86.51

16

CVR,SIDE,LH,'00 CRUSR,BLK

5244461-266

Unavailable

17

GROMMET-NYLON(10)

5433510

Unavailable

18

WASHER,SEALING,1/4 TURN(10)

7556067

Unavailable

19

STUD,1/4 TURN

7080784

Unavailable

20

BATTERY BOX,BLK

1013163-067

$48.24

21

PAD,BATTERY BOX

5210868

$1.05
