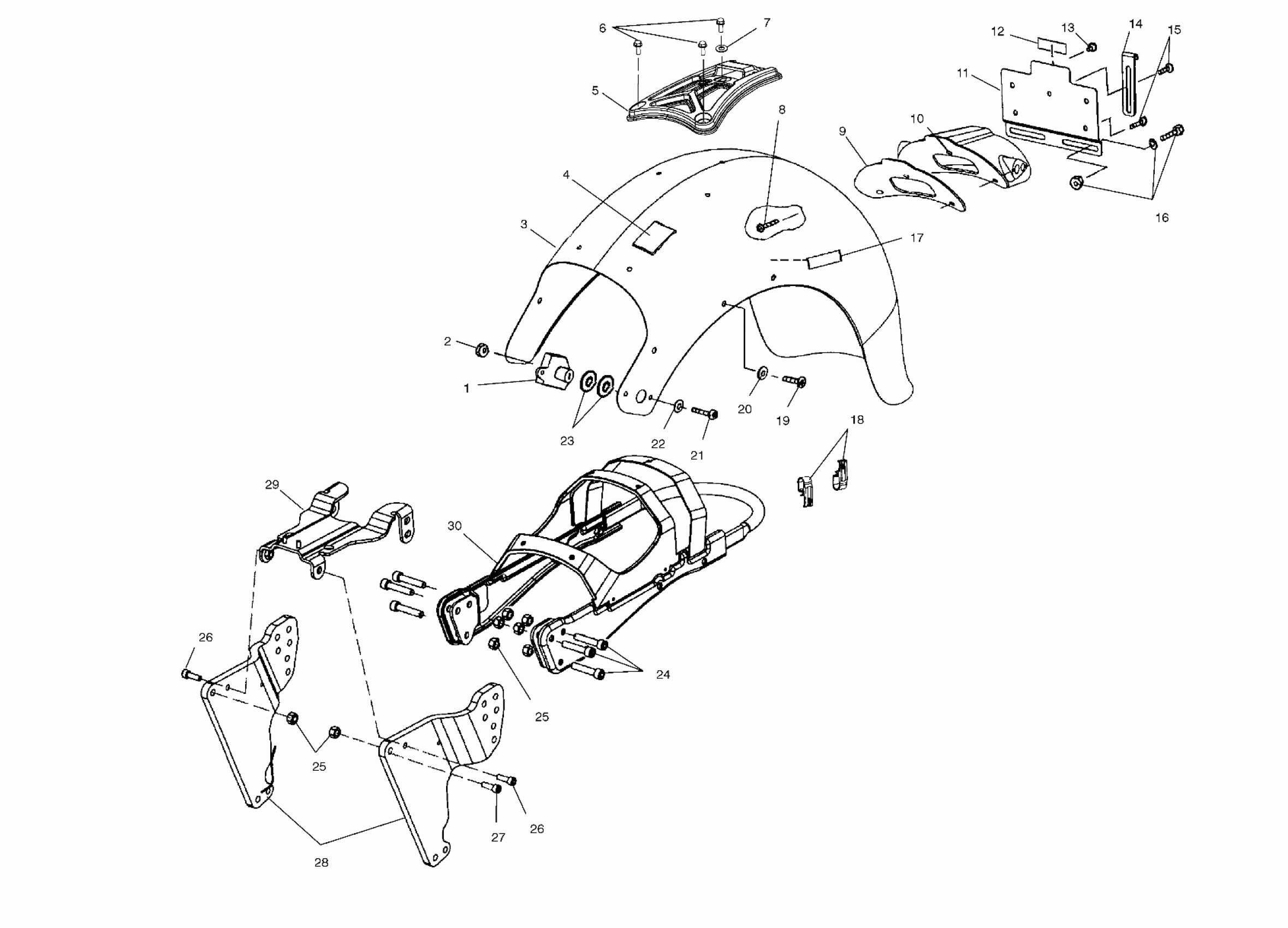

Polaris STANDARD CRUISER - V00CB15DC CHASSIS, SUBFRAME and REAR FENDER - V00CB15DC (4952565256A006) Diagram

#

Description
Price

1

LOCK,SEAT [No Longer Available]

7010088

$154.76

2

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

3

FENDER,REAR,CRSR.BLK

1013025-266

Unavailable

3

FENDER,REAR,WELD,P-266 ON P-302

1013025A6

$869.99

3

FENDER,REAR,P-301ONP266 Substituted by 1013025-1111

1013025A4

$345.24

4

PAD,RUBBER,TANDEM SEAT

5811941

$6.59

5

BRACKET-TANDEM SEAT MTG

5433482

$15.56

6

SCR,HXFLGHD,M6X20

7517750

$10.32

7

WASHER,FLAT,.250X.063(10)

7556148

Unavailable

8

SCREW (10) Substituted by 7517705

7517370

$6.79

9

PAD,SIGNAL/LICENSE BRKT.

5811539

$4.39

10

BRKT,SIGNAL,MACH

5131819

$308.99

11

BRKT,LICENSE PLATE

5242249

$77.78

12

REFLECTOR,REAR,RED

5432992

Unavailable

13

BUMPER,GROMMET

5411323

$3.17

14

RETAINER,LIC.PLATE

5241885

$22.62

15

SCREW (10)

7517494

$8.99

16

LICENSE PLATE HARDWARE,KIT

2201394

Unavailable

17

REFLECTOR,SIDE,RED

5432965

$1.83

18

CLIP,ELECTRICAL

7080737

$4.76

19

SCR,BTNHD,M8X16

7517767

$6.10

20

BUSHING,R.FENDER

5131943

Unavailable

21

Screw

7517355

$7.84

22

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

23

SPACER,SEAT LOCK REL

5132374

Unavailable

24

SCREW,SOCHD,M10X50

7517526

$3.02

25

NUT (10)

7547039

$4.76

25

NUT (10)

7547039

$4.76

26

SCREW,SOCHD,M8X25

7517524

$4.35

26

SCREW,SOCHD,M8X25

7517524

$4.35

27

SCREW

7517367

$13.99

28

SUBFRAME,FORMED,LH Substituted by 1013149-067

1013149

Unavailable

28

SUBFRAME,FORMED,RH Substituted by 1013150-067

1013150

$130.95

29

SUBFRAME COVER,BLK

1012961-067

Unavailable

30

SUBFRAME-MODULAR [No Longer Available]

1012952

Unavailable
