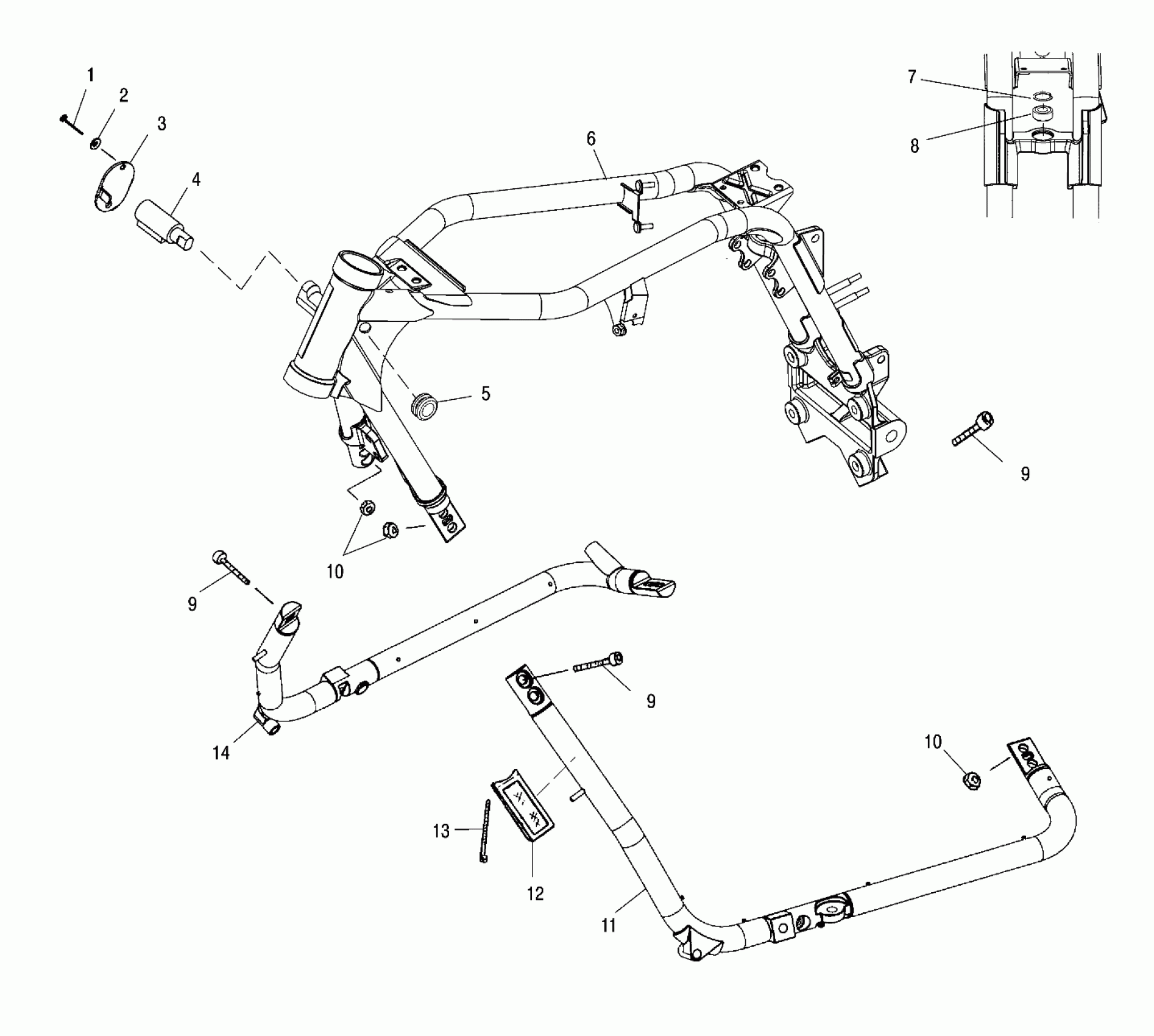

Polaris STANDARD CRUISER - V00CB15DC CHASSIS, MAIN FRAME - V00CB15DC (4952565256A005) Diagram

Description

Price

PIN,KNURLED,SS.

7661027

$3.30

WASHER,WAVE,SS

7571637

$0.69

CAP,FORK LOCK

5242202

$14.76

LOCK,FR.FORK Substituted by 4110253

7010085

$154.76

GROMMET,HEAD CASTING

5411472

$5.79

FRAME MAIN,BLK

1013051-067

Unavailable

RING,SNAP,(FOX SP)

7710446

$6.19

BEARING-SHERICAL,CARBON FIBER

3514341

$67.21

SCREW

7517358

$5.56

SCREW

7517358

$5.56

SCREW

7517358

$5.56

NUT (10)

7547039

$4.76

NUT (10)

7547039

$4.76

TUBE,LH,L0W.FR,CRADLE,BLK

1080008-067

$247.99

TUBE,LWR,CRADLE,LH,TC,BLK (Cal.)

1012984-067

$261.90

REFLECTOR ASM,FRONT

2670188

$9.84

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

TUBE,RH,LOW.FR,CRADLE,BLK.

1080009-067

Unavailable
