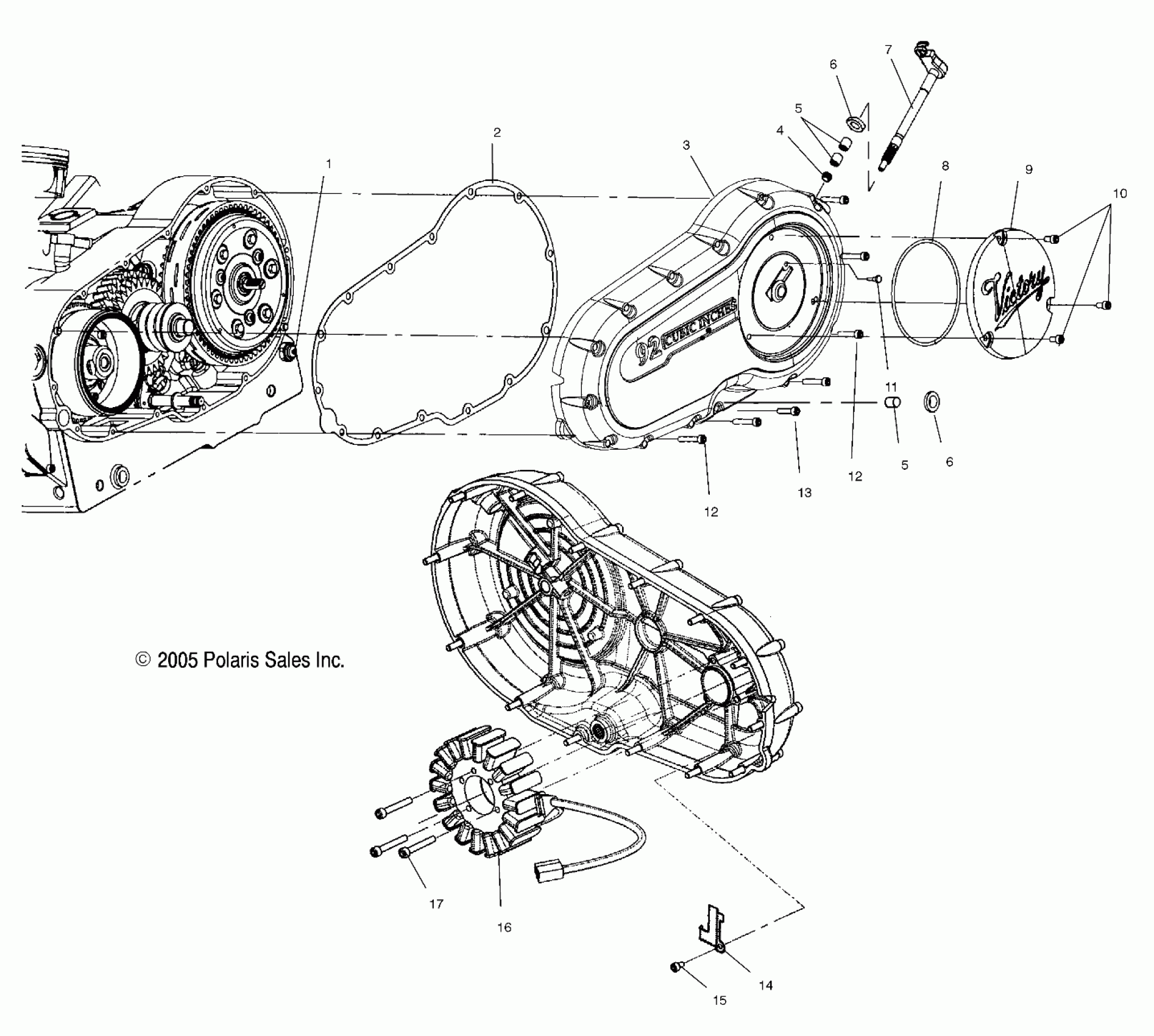

Polaris STANDARD CRUISER ALL OPTIONS - V02CB16 DRIVE TRAIN, PRIMARY COVER - V02CB16/ALL OPTIONS (4976307630D02) Diagram

#

Description
Price

1

SENSOR, OIL PRESSURE [See Electrical Pg. for Details]

-------

Unavailable

2

Gasket, Primary Cover

5830119

Unavailable

3

Asm. Primary Cover [Incl. 4,5,6]

3021213

Unavailable

4

BEARING, NEEDLE

3512106

Unavailable

5

BEARING,NDL,M12X16X10,CLTSHF

3552105

Unavailable

5

BEARING,NDL,M12X16X10,CLTSHF

3552105

Unavailable

6

Seal

3610059

Unavailable

6

Seal

3610059

Unavailable

7

Pinion, Clutch

1013636

$222.22

8

O-Ring

5411499

$11.51

9

Plate, Emblem

5132175

$142.86

10

SCREW

7517405

$10.39

11

SCREW

7517499

Unavailable

12

SCREW

7517682

Unavailable

12

SCREW

7517682

Unavailable

13

SCREW

7517301

$2.39

14

Bracket, Stator Wire

5245036

$4.13

15

SCREW

7517515

Unavailable

16

Stator

4010436

$229.37

17

SCREW

7517261

Unavailable
