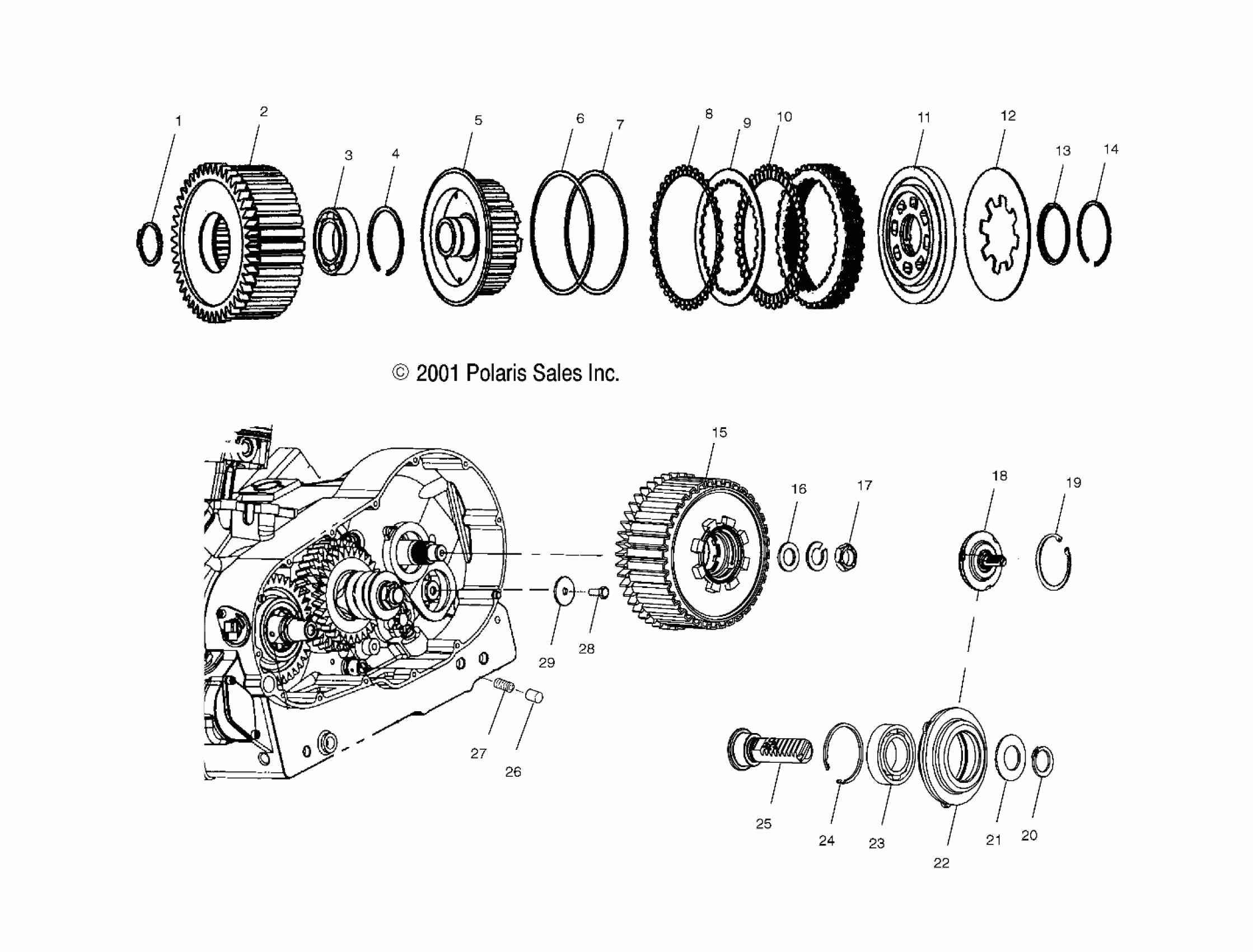

Polaris STANDARD CRUISER ALL OPTIONS - V02CB16 DRIVE TRAIN, DRIVE CLUTCH - V02CB16/ALL OPTIONS (4976347634D08) Diagram

Clip, External

7670122

Unavailable

Asm., Gear/Basket

1341438

$354.99

Bearing, Ball

3514358

$30.54

CIRCLIP, INTERNAL

7670123

Unavailable

Hub, Clutch

5133313

Unavailable

SEAT, JUDDER SPRING

5246074

Unavailable

SPRING, DIAPHRAGM, JUDDER

7042123

Unavailable

Plate, Friction Judder [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

-------

Unavailable

Plate, Separator [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

-------

Unavailable

Plate, Friction [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

-------

Unavailable

PLATE, PRESSURE

5132703

Unavailable

Spring, Clutch, Diaphragm

7042099

Unavailable

Ring, Snap

7710510

Unavailable

Circlip, Internal

7670124

Unavailable

Asm., Clutch

1322061

$1,259.99

Washer

5131658

$7.94

Nut

7547019

$26.17

Asm., Rack Insert [Incl. 22,23,24]

1341349

Unavailable

Circlip

7710506

Unavailable

Ring, Retaining

7710508

$4.35

Washer, Spring

7556165

$4.79

Insert, Pressure Plate

5132553

$77.78

Bearing, Ball

3514356

Unavailable

Circlip, Internal

7670128

$31.75

Rack, Clutch

6230196

$185.99

Plug

7051528

$10.63

Screw, Set

7517449

$4.17

Screw

7517587

$2.17

Washer, Flat

7556139

Unavailable
