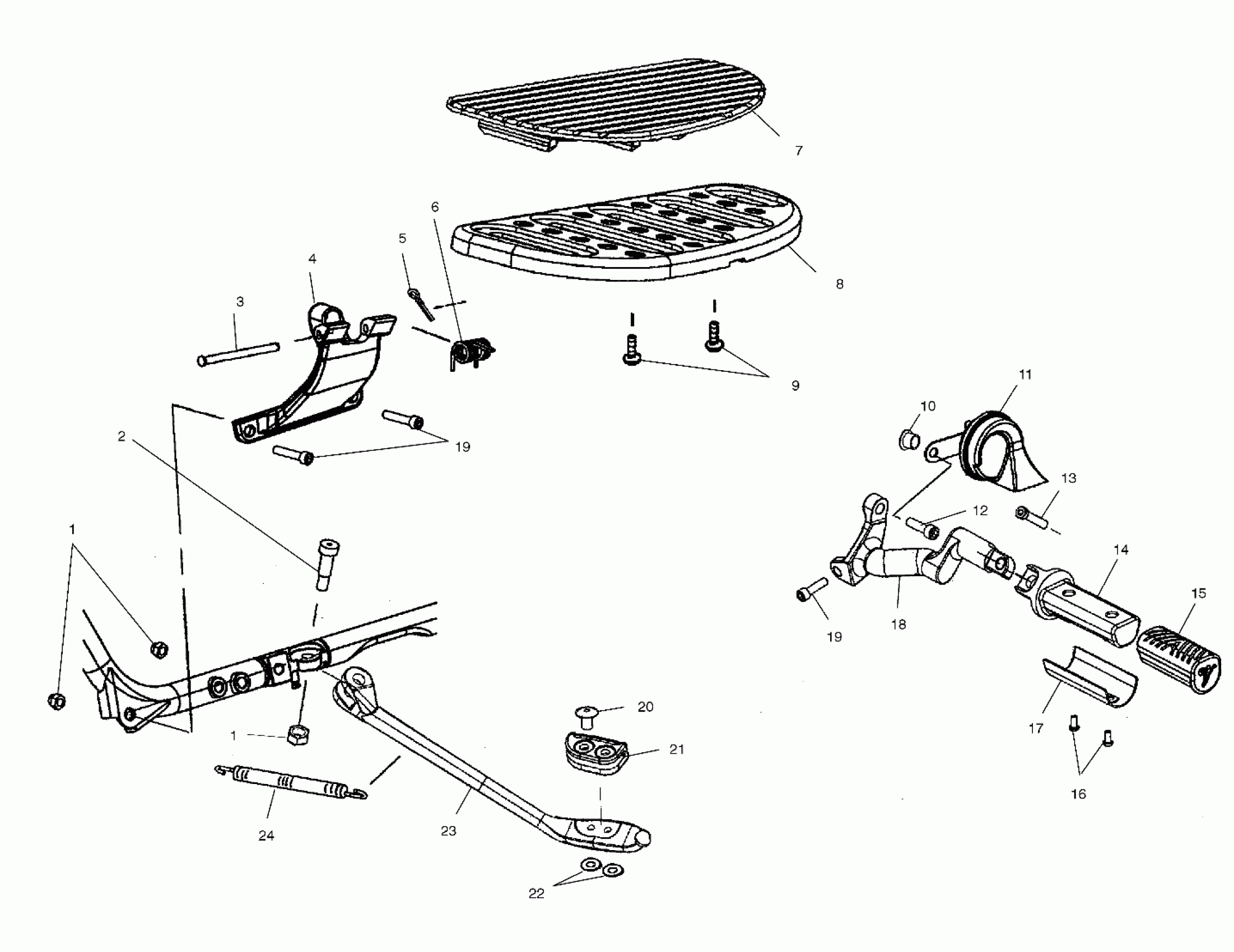

Polaris STANDARD CRUISER ALL OPTIONS - V02CB16 CHASSIS, FLOOR BOARD and SIDE STAND - V02CB16/ALL OPTIONS (4976327632A06) Diagram

#

Description
Price

1

NUT

7547039

Unavailable

1

NUT

7547039

Unavailable

2

Screw

7517404

Unavailable

3

PIN, FLOORBOARD SUPPORT

7661095

$2.99

4

Support, Floorboard, LH

5132429-067

Unavailable

4

Support, Floorboard, RH

5132430-067

$216.99

5

PIN, COTTER

7661094

Unavailable

6

Spring, Floorboard Support

7041623

$27.99

7

Pad, Floorboard, LH

5412025

$36.83

7

Pad, Floorboard, RH

5412026

$36.83

8

Floorboard, LH

5132228

Unavailable

8

Floorboard, RH

5132229

Unavailable

9

Screw

7517694

$8.71

10

Spacer

5132658

$3.92

11

Horn

4010688

$86.51

12

Screw [LH Side Only]

7517554

Unavailable

13

SCREW

7517525

$3.99

14

Footpeg, Passenger, LH

5132303

$24.60

14

Footpeg, Passenger, RH

5132304

$49.21

15

Pad, Footpeg, Passenger, LH

5411333

$12.30

15

Pad, Footpeg, Passenger, RH

5411334

$10.63

16

SCREW

7517767

Unavailable

17

Cover, Footpeg

5243767-067

$15.56

18

Support, Footpeg, Passenger, LH

5244041-067

$167.60

18

Support, Footpeg, Passenger, RH

5244042-067

$130.95

19

Screw

7517989

$5.40

19

Screw

7517989

$5.40

20

RIVET

7661064

Unavailable

21

Pad, Side Stand

5411745

Unavailable

22

WASHER, FLAT

7556121

$1.49

23

Asm., Stand, Side [Incl. 20,21,22]

1013062

Unavailable

24

Spring

7042063

Unavailable
