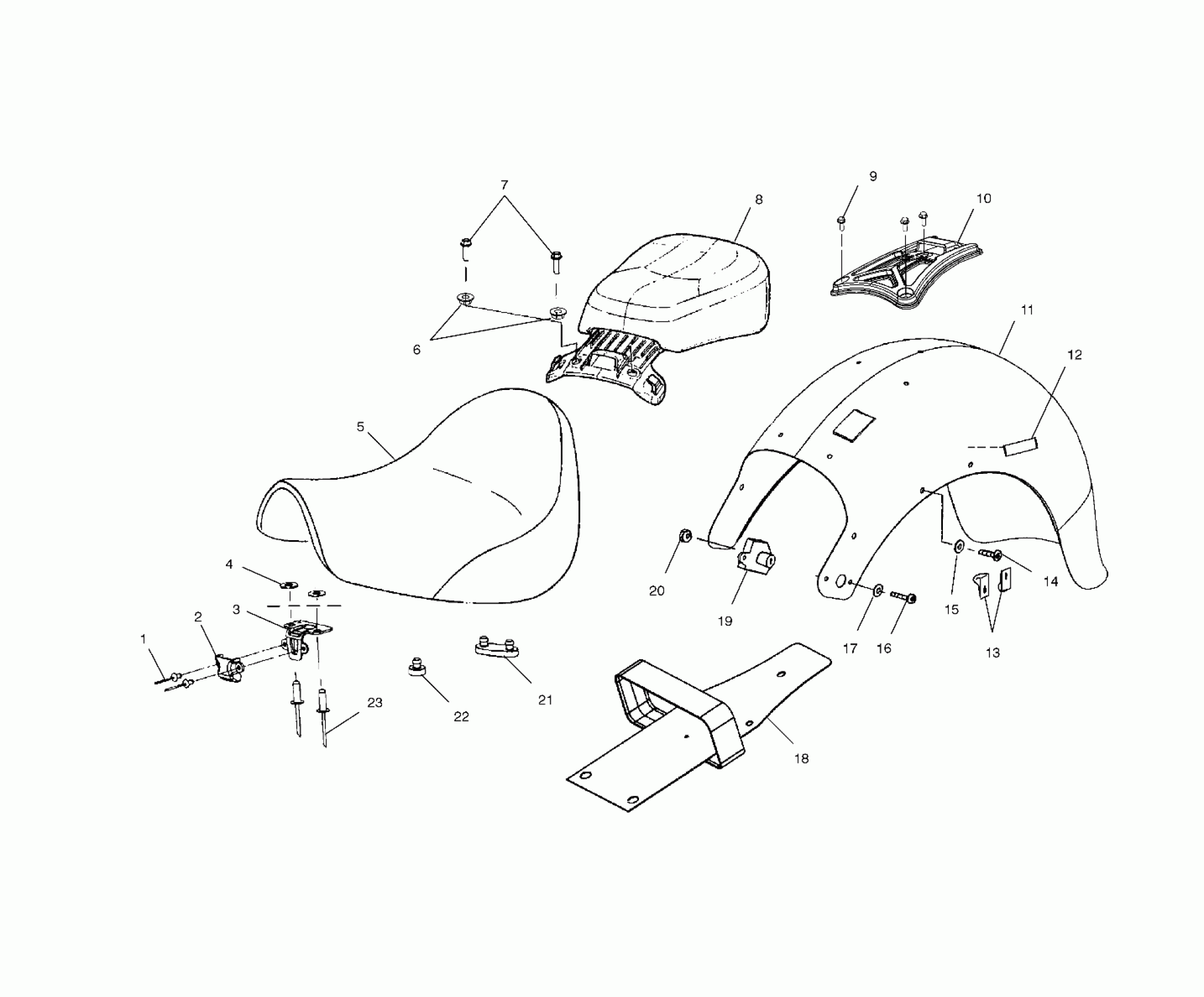

Polaris STANDARD CRUISER ALL OPTIONS - V02CB16 BODY, SEAT and REAR FENDER - V02CB16/ALL OPTIONS (4976327632B09) Diagram

#

Description
Price

1

Rivet

7661092

$0.68

2

Shield, Seat Bracket

5433698

$23.81

3

Bracket, Seat Lock

5243971

$49.21

4

Washer, Flat

7556133

$2.60

5

Seat

2682532

Unavailable

6

Washer, Shoulder

7556146

Unavailable

7

SCREW

7517751

$7.19

8

Asm., Tandem Seat

2682529

Unavailable

9

Screw

7517705

$6.79

10

Bracket, Tandem Seat

5433482

$15.56

11

Fender, Rear, Black

1013278-266

$756.85

11

Fender, Rear, Green/White

1013278A13

$824.99

11

Fender, Rear, Red/White

1013278A15

$824.99

11

Fender, Rear, Yellow/Black

1013278A19

$869.99

12

Reflector, Red

5433865

Unavailable

13

CLIP, ELECTRICAL

7080737

Unavailable

14

Screw

7517840

Unavailable

15

Bushing, Fender, Rear

5132668

Unavailable

16

Screw

7517355

Unavailable

17

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

18

Asm., Seat Strap

2682455

Unavailable

19

Lock, Seat

7010088

Unavailable

20

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

21

Pad, Rubber, Seat

5411922

$1.67

22

BUMPER-RUBBER

5412067

$3.99

23

Rivet

7661081

$1.43
