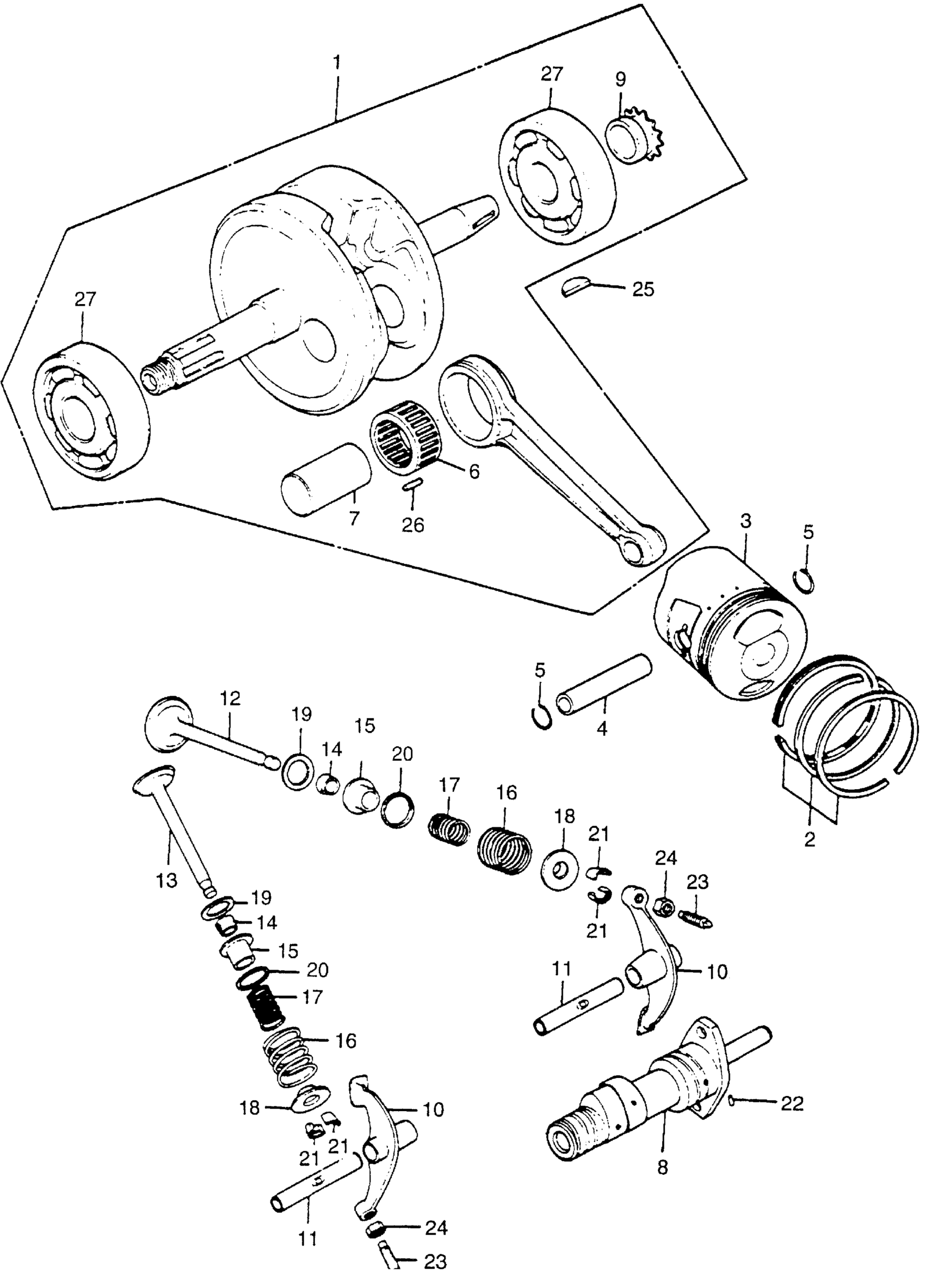

Honda ST90K1A MOTORCYCLE, JPN, VIN# ST90-1100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY. (NOT AVAILABLE)

13000-028-040

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75) | (Optional).

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

130D1-121-762

Unavailable

2

RING SET, PISTON This part replaces 13010-028-025.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-028-035.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-121-732.

13011-121-762

$23.12

2

RING SET, PISTON

13011-121-762

$23.12

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13020-028-025.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13020-028-035.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13020-121-732.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-028-025.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-028-035.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-121-732.

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13040-028-025.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13040-028-035.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13040-121-732.

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13050-028-025.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13050-028-035.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13050-121-732.

130D1-121-762

Unavailable

3

PISTON (STD)

13101-028-070

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-028-070

$37.74

3

PISTON (OS 0.50) | (Optional).

13103-028-070

Unavailable

3

PISTON (0.75) | (Optional).

13104-028-070

Unavailable

3

PISTON (1.00) | (Optional).

13105-028-070

Unavailable

4

PIN, PISTON

13111-028-000

$11.08

5

CLIP, PISTON PIN

13115-200-000

$1.49

5

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

6

RETAINER, CONNECTING ROD ROLLER

13211-235-000

Unavailable

7

PIN, CRANK This part replaces 13381-028-000.

13381-121-761

Unavailable

7

PIN, CRANK

13381-121-761

Unavailable

8

CAMSHAFT (NOT AVAILABLE)

14101-128-000

Unavailable

9

SPROCKET, TIMING (15T)

14311-028-010

Unavailable

10

ARM, VALVE ROCKER This part replaces 14431-028-010.

14431-028-020

Unavailable

10

ARM, VALVE ROCKER

14431-028-020

Unavailable

11

SHAFT, VALVE ROCKER ARM

14451-028-010

Unavailable

12

VALVE, IN.

14711-028-000

Unavailable

13

VALVE, EX.

14721-028-790

Unavailable

14

SEAL, VALVE STEM

14730-028-013

$9.71

15

CAP, VALVE STEM SEAL

14731-028-000

$4.35

16

SPRING, VALVE (OUTER)

14751-028-010

Unavailable

17

SPRING, VALVE (INNER)

14761-028-020

Unavailable

18

RETAINER, VALVE SPRING

14771-030-000

Unavailable

19

SEAT, VALVE SPRING

14775-028-010

$4.07

20

SEAT, VALVE SPRING (INNER)

14776-028-000

$4.37

21

COTTER, VALVE

14781-001-004

$4.95

21

COTTER, VALVE

14781-001-010

$5.66

22

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

23

SCREW, TAPPET ADJ.

90012-333-000

$2.75

24

NUT, TAPPET ADJ.

90206-001-000

$1.66

25

KEY, WOODRUFF

90741-253-000

Unavailable

27

BEARING, RADIAL BALL (6305) This part replaces 96100-63050.

96100-63050-00

$15.27

27

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
