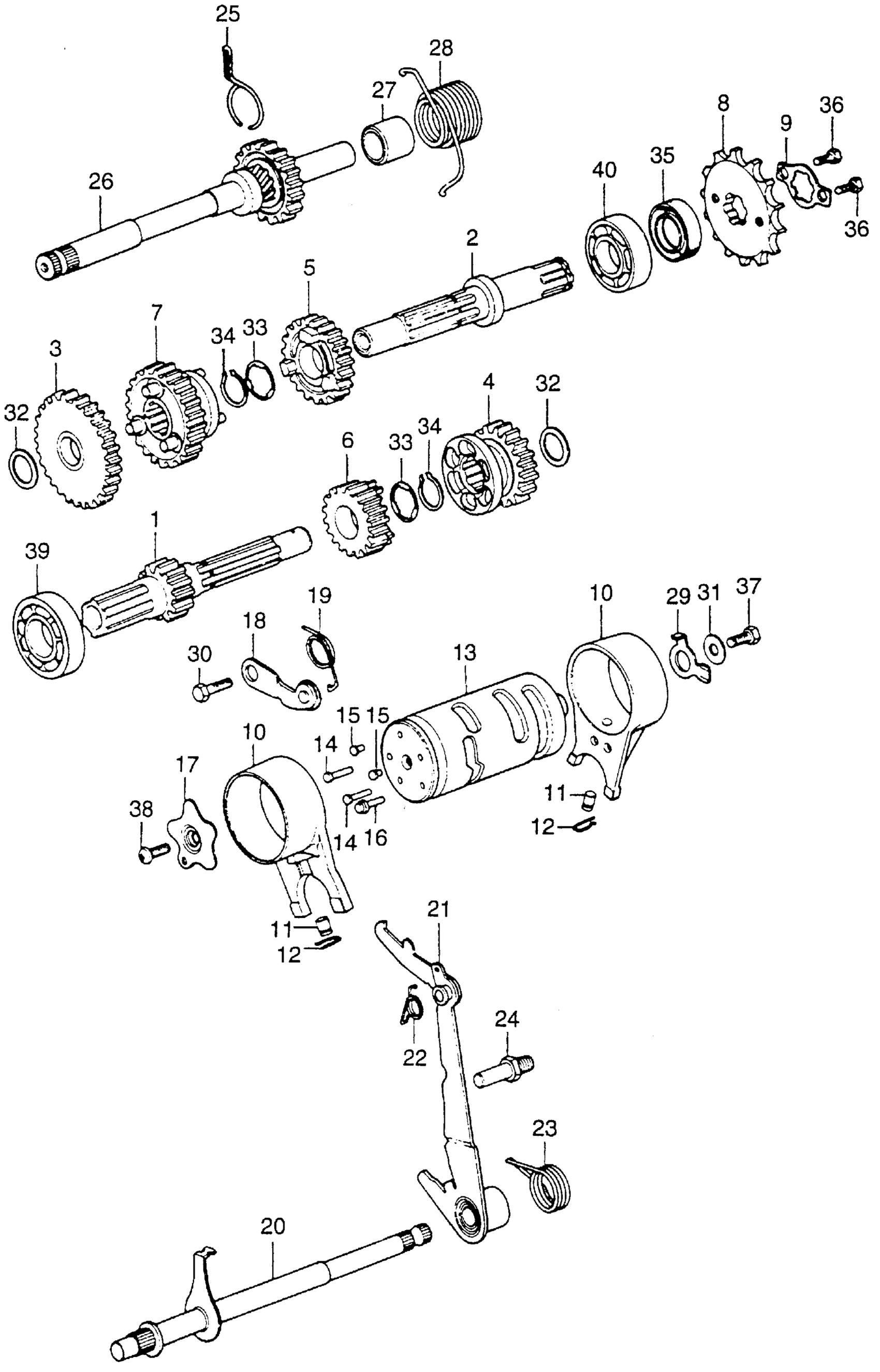

Honda ST90A MOTORCYCLE, JPN, VIN# ST90-1000002 TRANSMISSION + GEARSHIFT DRUM Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION This part replaces 23211-121-691.

23211-121-730

Unavailable

1

MAINSHAFT, TRANSMISSION

23211-121-730

Unavailable

2

COUNTERSHAFT, TRANSMISSION (23T) (NOT AVAILABLE) This part replaces 23221-121-691.

23221-121-730

Unavailable

2

COUNTERSHAFT, TRANSMISSION (23T) (NOT AVAILABLE)

23221-121-730

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T) (NOT AVAILABLE) This part replaces 23421-121-691.

23421-121-692

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T) (NOT AVAILABLE)

23421-121-692

Unavailable

4

GEAR, MAINSHAFT SECOND (17T)

23431-121-692

Unavailable

5

GEAR, COUNTERSHAFT SECOND (28T)

23441-121-693

Unavailable

6

GEAR, MAINSHAFT TOP (22T) (NOT AVAILABLE)

23471-121-692

Unavailable

7

GEAR, COUNTERSHAFT TOP (23T) (NOT AVAILABLE)

23481-121-692

Unavailable

8

SPROCKET, DRIVE (15T) This part replaces 23801-128-670.

23801-230-000

Unavailable

9

PLATE B, FIXING This part replaces 23811-028-000.

95014-92100

$1.49

9

PLATE B, FIXING

95014-92100

$1.49

10

FORK, R. GEARSHIFT (NOT AVAILABLE) This part replaces 24211-121-690.

24211-121-691

Unavailable

10

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-121-691

Unavailable

11

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

11

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

11

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

12

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

13

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-121-690

Unavailable

14

PIN A, GEARSHIFT DRUM (NOT AVAILABLE)

24421-001-010

Unavailable

15

PIN B, GEARSHIFT DRUM (NOT AVAILABLE)

24422-001-000

Unavailable

16

PIN, SHIFT DRUM (NOT AVAILABLE)

24423-028-000

Unavailable

17

PLATE, GEARSHIFT DRUM SIDE (NOT AVAILABLE)

24425-028-000

Unavailable

18

ARM, GEARSHIFT DRUM STOPPER This part replaces 24430-028-010.

24430-096-700

$11.61

18

ARM, GEARSHIFT DRUM STOPPER

24430-096-700

$11.61

19

SPRING, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24435-046-000

Unavailable

20

SPINDLE, GEARSHIFT

24610-046-020

Unavailable

21

ARM, GEARSHIFT

24630-046-010

Unavailable

22

SPRING, GEARSHIFT ARM

24641-046-000

Unavailable

23

SPRING, GEARSHIFT RETURN This part replaces 24651-033-010.

24651-121-710

Unavailable

23

SPRING, GEARSHIFT RETURN

24651-121-710

Unavailable

24

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

25

SPRING, KICK STARTER RACHET (NOT AVAILABLE)

28223-128-670

Unavailable

26

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-128-670

Unavailable

27

GUIDE, KICK STARTER SPRING (NOT AVAILABLE)

28255-121-690

Unavailable

28

SPRING, STARTER RETURN This part replaces 28261-121-691.

28261-121-692

Unavailable

28

SPRING, STARTER RETURN

28261-121-692

Unavailable

29

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.76

29

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.76

30

PIVOT, SHIFT DRUM STOPPER ARM (NOT AVAILABLE)

90023-001-010

Unavailable

31

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

32

WASHER, THRUST (14MM)

90451-001-000

$3.67

33

WASHER, SPLINE (18MM)

90461-028-000

Unavailable

34

CIRCLIP (18MM)

90601-030-000

$1.77

35

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

35

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

35

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

35

OIL SEAL (20X34X7)

91201-030-015

Unavailable

35

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

35

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

35

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

36

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

36

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

38

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

38

SCREW, PAN (6X12)

93500-06012-0A

$1.49

38

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

39

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

39

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

40

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

40

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
