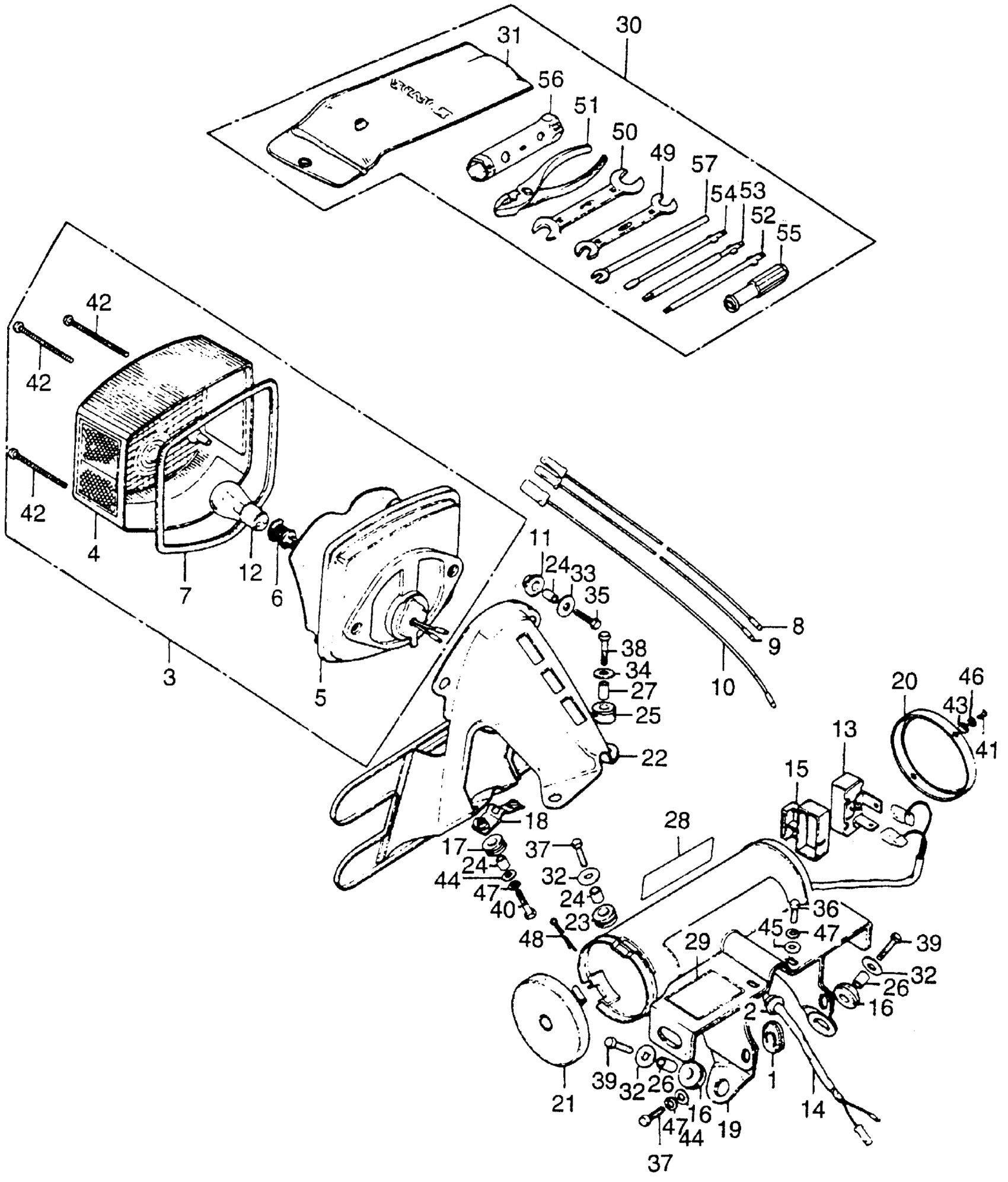

Honda ST90A MOTORCYCLE, JPN, VIN# ST90-1000002 TAILLIGHT + TOOL BOX Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.92

2

GROMMET, WIRE HARNESS

32983-011-000

$3.31

3

TAILLIGHT UNIT (NOT AVAILABLE)

33701-329-671

Unavailable

4

LENS, TAILLIGHT

33702-329-671

Unavailable

5

BASE, TAILLIGHT (NOT AVAILABLE)

33703-329-670

Unavailable

6

WIRE, TAILLIGHT

33708-098-000

Unavailable

6

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

7

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

8

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-107-670

Unavailable

9

SUB-WIRE, STOP LIGHT (GREEN/YELLOW) (NOT AVAILABLE)

33712-107-670

Unavailable

10

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33712-128-670

Unavailable

11

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

12

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

13

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

13

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

14

SUB-WIRE, TURN SIGNAL RELAY (NOT AVAILABLE)

38303-128-670

Unavailable

15

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-107-670

Unavailable

16

RUBBER, OIL TANK

55106-300-000

Unavailable

17

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

18

PLATE A, NUMBER BRACKET MOUNT (NOT AVAILABLE)

80109-118-770

Unavailable

19

BOX, TOOL *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) This part replaces 83500-128-000CT.

83500-128-000SG

Unavailable

19

BOX, TOOL *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

83500-128-000SG

Unavailable

20

CAP, L. TOOL BOX (NOT AVAILABLE)

83542-128-000

Unavailable

21

CAP, R. TOOL BOX (NOT AVAILABLE)

83547-128-000

Unavailable

22

BRACKET, LICENSE PLATE *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) This part replaces 84701-128-670CT.

84701-128-670SG

Unavailable

22

BRACKET, LICENSE PLATE *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

84701-128-670SG

Unavailable

23

RUBBER, BRACKET CUSHION

84705-292-000

$2.79

24

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

25

RUBBER, BRACKET

84905-118-000

$3.92

26

COLLAR, TOOL BOX (NOT AVAILABLE)

84905-128-000

Unavailable

27

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

28

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-128-670

Unavailable

29

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-128-670

Unavailable

30

TOOL SET (NOT AVAILABLE)

89010-128-000

Unavailable

31

BAG, TOOL

89101-ME5-670

Unavailable

31

BAG, TOOL This part replaces 89101-300-010.

89101-ME5-670

Unavailable

31

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable

32

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

33

WASHER (20MM)

90581-310-000

$1.90

34

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

34

WASHER (18MM)

90581-831-650

$1.87

35

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

35

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

35

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

36

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

36

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

36

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

37

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

38

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

38

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

39

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

39

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

39

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

40

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

40

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

41

SCREW, PAN (4X8)

93500-04008-0A

$1.49

42

SCREW, PAN (4X55)

93500-04055-4J

$1.49

43

WASHER, PLAIN (4MM)

94101-04000

$1.49

44

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

44

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

44

WASHER, PLAIN (6MM)

94101-06800

$1.49

45

WASHER, PLAIN (6MM)

94101-06200

$1.49

46

WASHER, SPRING (4MM)

94111-04000

$1.49

47

WASHER, SPRING (6MM)

94111-06000

$1.49

48

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

48

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

48

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

48

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

48

PIN, COTTER (3.0X45)

94201-30450

$1.49

49

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

50

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

51

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

52

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

53

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

54

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

55

GRIP

99003-50000

$3.27

56

WRENCH, BOX (P18X19)

99004-18190

$3.40

57

BAR B, HANDLE

99005-02000

$2.52
