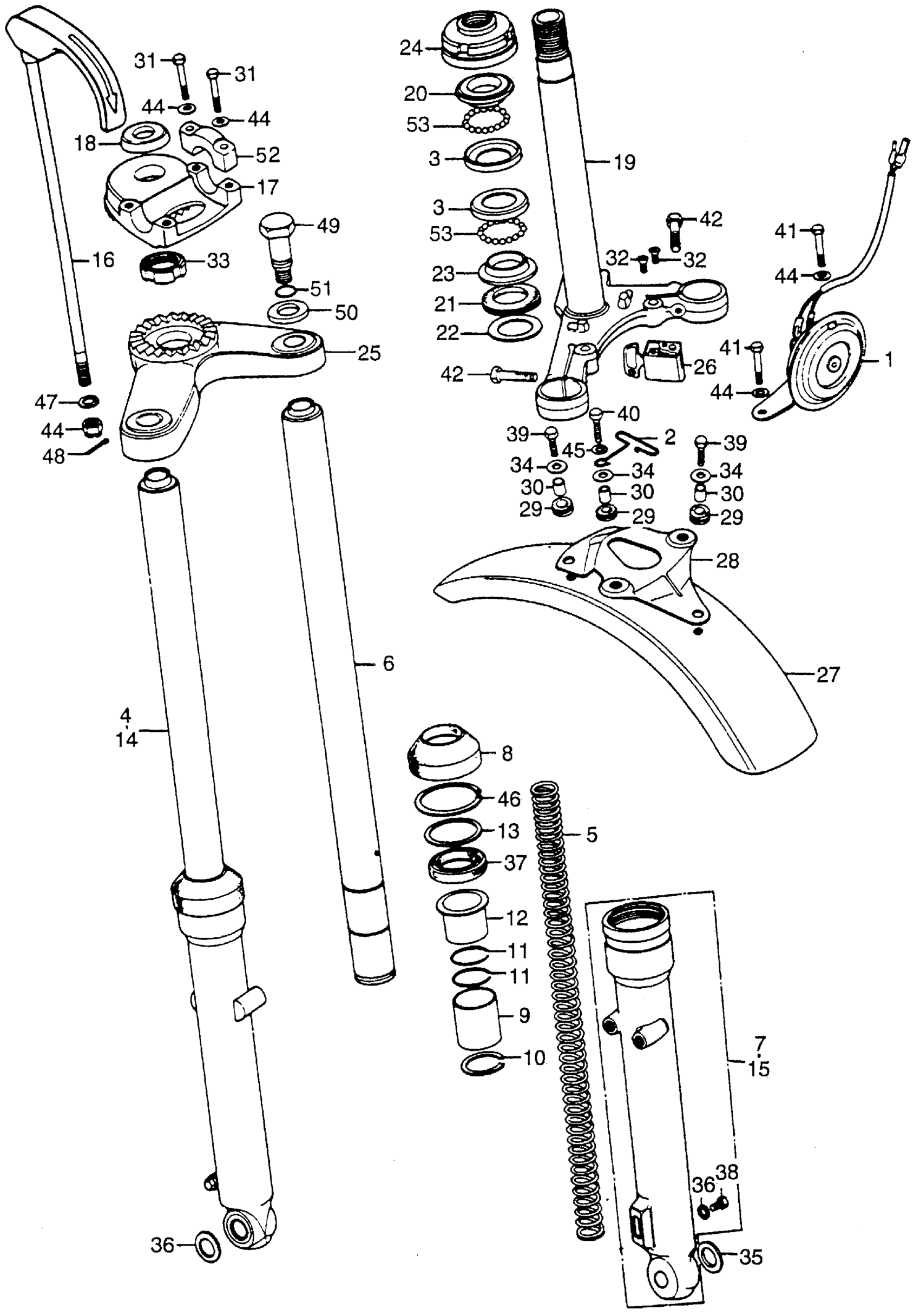

Honda ST90A MOTORCYCLE, JPN, VIN# ST90-1000002 STEERING STEM + FRONT FENDER + FRONT FORK Diagram

#

Description
Price

1

HORN ASSY. (MITSUBA) (NOT AVAILABLE)

38100-128-004

Unavailable

2

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-128-000

Unavailable

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

3

RACE, STEERING TOP BALL

50301-041-010

$12.39

3

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

4

FORK ASSY., R. FR. *A26* (POLISHING) (NOT AVAILABLE)

51400-128-000ZA

Unavailable

5

SPRING, FR. FORK (NOT AVAILABLE)

51401-128-000

Unavailable

6

PIPE, FR. FORK (SHOWA) This part replaces 51410-116-671.

51410-152-003

Unavailable

6

PIPE, FR. FORK (SHOWA)

51410-152-003

Unavailable

7

CASE, R. FR. FORK (LOWER) *A26* (POLISHING) (NOT AVAILABLE)

51420-116-671ZC

Unavailable

8

DUST SEAL, FR. FORK (ARAI) This part replaces 51425-118-013.

51425-118-023

$11.06

8

DUST SEAL, FR. FORK (ARAI)

51425-118-023

$11.06

9

PISTON, FORK (27MM) This part replaces 51442-229-000.

94603-27002

Unavailable

9

PISTON, FORK (27MM)

94603-27002

Unavailable

10

RING B, SNAP (27MM) (NOT AVAILABLE) This part replaces 51445-028-000.

94580-27000

Unavailable

11

RING A, SNAP (27MM) This part replaces 51446-028-000.

94570-27000

Unavailable

11

RING A, SNAP (27MM)

94570-27000

Unavailable

12

GUIDE, FORK PIPE (27MM) This part replaces 51451-118-000.

94602-27101

Unavailable

12

GUIDE, FORK PIPE (27MM)

94602-27101

Unavailable

13

RING, BACK-UP

51452-118-000

Unavailable

14

FORK ASSY., L. FR. *A26* (POLISHING) (NOT AVAILABLE)

51500-128-000ZA

Unavailable

15

CASE, L. FR. FORK *A26* (POLISHING) (NOT AVAILABLE)

51520-116-671ZC

Unavailable

16

LEVER, HANDLEBAR CLAMP (NOT AVAILABLE)

53130-128-670

Unavailable

17

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE)

53132-102-000

Unavailable

18

WASHER, HANDLEBAR CLAMP LEVER (NOT AVAILABLE)

53133-102-000

Unavailable

19

STEM, STEERING *NH35* (CLOUD SILVER)

53200-128-670AU

Unavailable

20

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

20

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

21

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

22

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

23

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

23

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

23

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

23

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

24

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

25

PLATE, FORK TOP BRIDGE

53231-102-000

Unavailable

26

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

26

SWITCH, HANDLE LOCK (NOT AVAILABLE) This part replaces 53600-001-020.

35010-001-010

Unavailable

27

FENDER, FR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

61100-128-670XW

Unavailable

28

BRACKET, FR. FENDER (NOT AVAILABLE)

61102-128-000

Unavailable

29

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

30

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

31

BOLT, HEX. (6X28)

90117-065-000

$2.62

32

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

33

NUT C, STEERING STEM This part replaces 90304-030-000.

95020-13100

Unavailable

33

NUT C, STEERING STEM

95020-13100

Unavailable

34

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

35

WASHER (12.5MM)

90528-229-000

$2.02

36

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

37

OIL SEAL, FR. FORK This part replaces 90756-118-003.

90756-149-841

$14.86

37

OIL SEAL, FR. FORK

90756-149-841

$14.86

38

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

38

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

38

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

39

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

40

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

40

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

41

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

41

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

41

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

42

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

42

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

43

NUT, CASTLE (14MM)

94012-14000-0S

Unavailable

44

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

44

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

44

WASHER, PLAIN (6MM)

94101-06800

$1.49

45

WASHER, PLAIN (6MM)

94101-06200

$1.49

46

WASHER, SPRING (14MM)

94111-14000

Unavailable

47

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

47

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

47

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

47

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

47

PIN, COTTER (3.0X45)

94201-30450

$1.49

48

CIRCLIP (INNER) (40MM) (NOT AVAILABLE)

94521-40000

Unavailable

49

BOLT B, FORK

94605-10200

Unavailable

50

WASHER, FORK BOLT (13MM) This part replaces 94606-13000.

94606-13001

$1.49

50

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

51

O-RING (8.4X2.4)

94608-10000

$1.49

52

HOLDER A1, HANDLEBAR (UPPER) This part replaces 95014-21100.

95014-21101

$6.31

52

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$6.31

53

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
