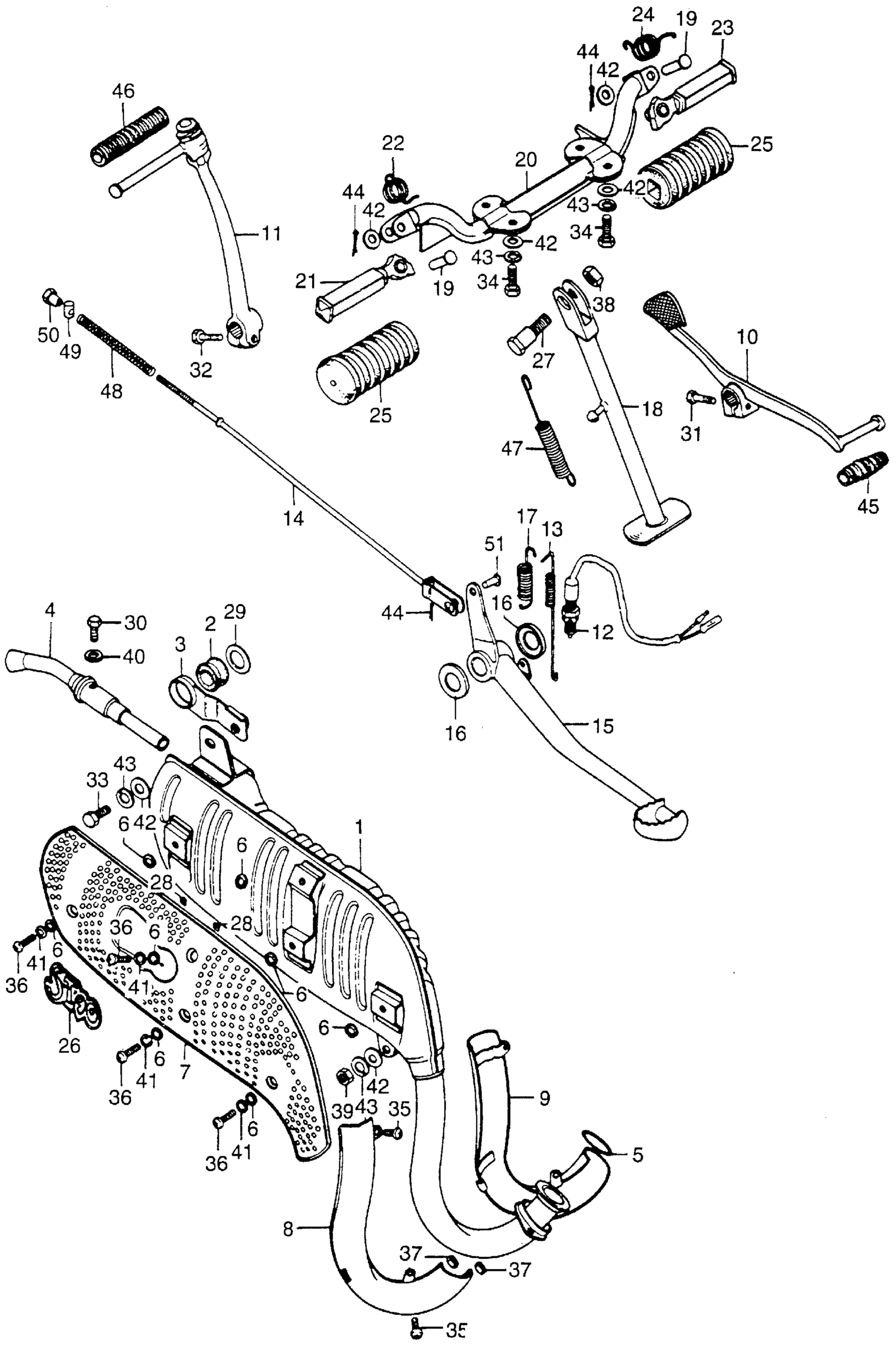

Honda ST90A MOTORCYCLE, JPN, VIN# ST90-1000002 MUFFLER + BRAKE + GEARSHIFT Diagram

#

Description
Price

1

MUFFLER, EX. | Use up to Frame SN 1027703 This part replaces 18100-128-670CT.

18100-128-677

$856.46

1

MUFFLER, EX. | Use up to Frame SN 1027703 This part replaces 18100-128-672.

18100-128-677

$856.46

1

MUFFLER, EX. This part replaces 18100-128-672.

18100-128-677

$856.46

1

MUFFLER, EX. | Use up to Frame SN 1027703

18100-128-677

$856.46

1

MUFFLER, EX.

18100-128-677

$856.46

2

RUBBER, MUFFLER STAY (NOT AVAILABLE)

18113-128-000

Unavailable

3

STAY, RR. MUFFLER *NH83L* (OFF BLACK) (NOT AVAILABLE)

18114-128-000CT

Unavailable

4

PIPE A, DIFFUSER (NOT AVAILABLE) | Use up to Frame SN 1027703

18150-128-000

Unavailable

4

PIPE A, DIFFUSER (NOT AVAILABLE) | Use from Frame SN 1027704

18150-128-670

Unavailable

5

GASKET, EX. PIPE This part replaces 18291-028-000.

18291-028-306

$7.30

5

GASKET, EX. PIPE

18291-028-306

$7.30

6

GASKET, PROTECTOR

18292-167-890

$1.88

6

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

7

PROTECTOR, MUFFLER *A1* (SEMI GLAZED BLACK) This part replaces 18400-128-000CT.

18400-128-000SG

Unavailable

7

PROTECTOR, MUFFLER *A1* (SEMI GLAZED BLACK)

18400-128-000SG

Unavailable

8

PROTECTOR A *A2* This part replaces 18411-128-000CT.

18411-128-000SH

Unavailable

9

PROTECTOR B *A2* This part replaces 18412-128-000CT.

18412-128-000SH

Unavailable

10

PEDAL, GEARSHIFT This part replaces 24700-028-670.

24700-111-970

Unavailable

10

PEDAL, GEARSHIFT

24700-111-970

Unavailable

11

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-118-000

Unavailable

12

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

12

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

12

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

13

SPRING, STOP SWITCH

35357-041-000

Unavailable

14

ROD, RR. BRAKE (NOT AVAILABLE)

43451-128-010

Unavailable

15

PEDAL, BRAKE (NOT AVAILABLE)

46500-128-000

Unavailable

16

COLLAR B, BRAKE PEDAL (NOT AVAILABLE)

46502-128-000

Unavailable

17

SPRING, BRAKE PEDAL This part replaces 46514-028-000.

46514-GW8-670

$4.33

18

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-128-000B

Unavailable

19

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

19

PIN, STEP BAR JOINT

50603-033-010

$3.30

20

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-128-670B

Unavailable

21

ARM, R. STEP (NOT AVAILABLE)

50616-331-000

Unavailable

22

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

23

STEP, L.

50642-331-000

Unavailable

24

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

25

RUBBER, STEP

50661-331-770

$16.37

26

EMBLEM, MUFFLER PROTECTOR (NOT AVAILABLE)

87122-128-000

Unavailable

27

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

28

NUT B (3MM)

90313-329-000

$4.13

29

WASHER (17MM) (NOT AVAILABLE)

90501-128-000

Unavailable

30

BOLT, HEX. (5X8) This part replaces 92000-05008-0A.

92101-05008-0A

$1.49

30

BOLT, HEX. (5X8)

92101-05008-0A

$1.49

30

BOLT, HEX. (5X8) This part replaces 92200-05008.

92101-05008-0A

$1.49

30

BOLT, HEX. (5X8) This part replaces 92200-05008-0A.

92101-05008-0A

$1.49

31

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

31

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

32

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

32

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

32

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

33

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

33

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

34

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

34

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

35

SCREW, PAN (5X12)

93500-05012-0A

$1.49

36

SCREW, PAN (6X14)

93500-06014-02

$1.49

37

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM)

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

38

NUT, HEX. (10MM)

94002-10000-0S

$4.06

39

NUT, HEX. (8MM)

94030-08000

$1.49

40

WASHER, PLAIN (5MM)

94101-05000

$1.49

41

WASHER, PLAIN (6MM)

94101-06200

$1.49

42

WASHER, PLAIN (8MM)

94101-08000

$1.49

43

WASHER, SPRING (8MM)

94111-08000

$1.49

44

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

44

PIN, COTTER (1.6X25)

94201-16250

$1.49

45

RUBBER, SHIFT PEDAL

95011-40000

$1.49

46

RUBBER A, KICK STARTER

95011-51000

$3.69

47

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

47

SPRING D, SIDE STAND

95014-72402

$2.92

48

SPRING A, BRAKE ROD

95014-73100

$1.49

49

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

49

JOINT A, BRAKE ARM

95015-31001

$1.53

50

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

51

PIN B, BRAKE ROD JOINT

95015-52000

$2.03
