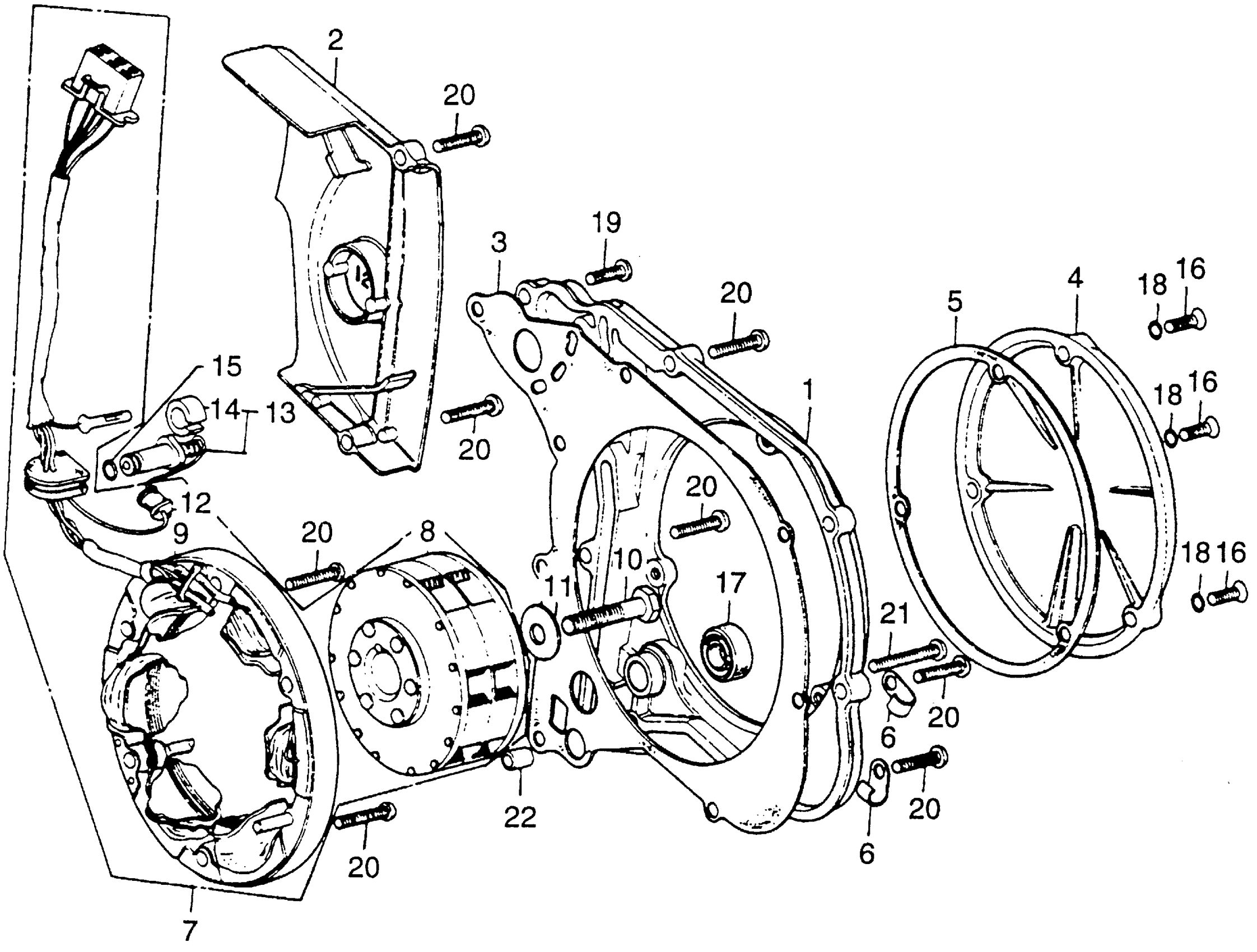

Honda ST90A MOTORCYCLE, JPN, VIN# ST90-1000002 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE

11341-121-000

Unavailable

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-128-000

Unavailable

GASKET, R. This part replaces 11394-028-040.

11394-028-308

Unavailable

COVER, ALTERNATOR (NOT AVAILABLE)

11431-128-000

Unavailable

GASKET, ALTERNATOR COVER This part replaces 11691-028-000.

11691-028-306

Unavailable

GASKET, ALTERNATOR COVER

11691-028-306

Unavailable

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-128-671

Unavailable

ROTOR (DENSO) (NOT AVAILABLE)

31101-053-004

Unavailable

STATOR (DENSO) (NOT AVAILABLE)

31102-128-671

Unavailable

BOLT, ALTERNATOR ROTOR MOUNT (DENSO)

31104-128-004

Unavailable

WASHER, ALTERNATOR ROTOR MOUNT (DENSO) (NOT AVAILABLE)

31105-128-004

Unavailable

GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)

32981-121-003

Unavailable

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.92

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.92

O-RING (7X1.6)

37551-001-000

Unavailable

SCREW, OVAL (6X18) (NOT AVAILABLE) This part replaces 90141-028-000.

93700-06018-02

Unavailable

SCREW, OVAL (6X18) (NOT AVAILABLE) This part replaces 93700-06018-0B.

93700-06018-02

Unavailable

OIL SEAL (17X34X7)

91204-001-000

Unavailable

O-RING (5.5X1.5)

91301-216-000

$2.38

SCREW, PAN (6X20) This part replaces 93500-06020-0B.

93500-06020-0H

$1.49

SCREW, PAN (6X20)

93500-06020-0H

$1.49

SCREW, PAN (6X20) This part replaces 93500-06020-02.

93500-06020-0H

$1.49

SCREW, PAN (6X20) This part replaces 93500-06020-08.

93500-06020-0H

$1.49

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28
