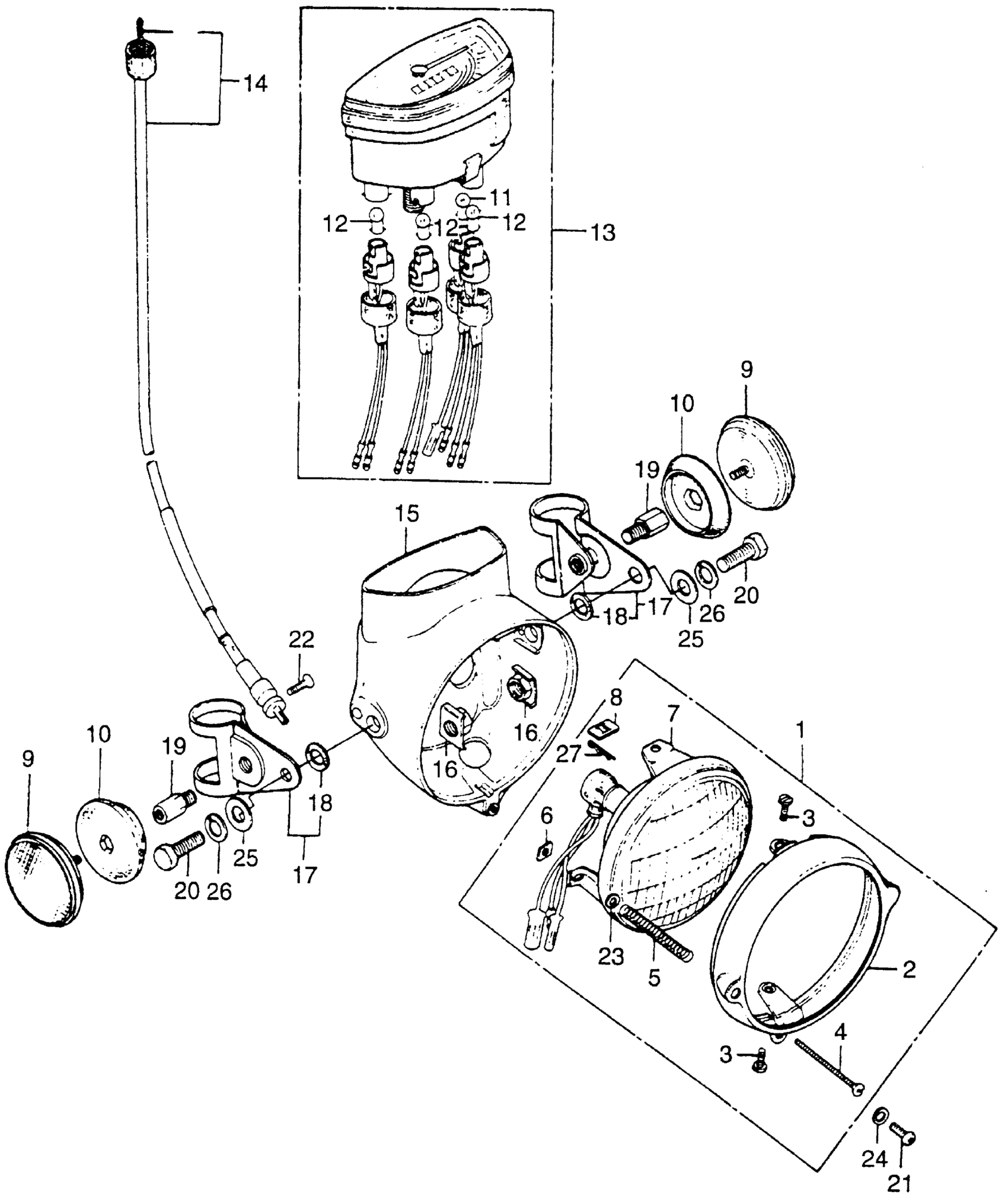

Honda ST90A MOTORCYCLE, JPN, VIN# ST90-1000002 HEADLIGHT + SPEEDOMETER Diagram

HEADLIGHT ASSY. (NOT AVAILABLE) This part replaces 33100-243-670.

33100-243-672

Unavailable

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-243-672

Unavailable

RIM, HEADLIGHT

33101-243-670

$33.52

SCREW, BEAM ADJUSTING (NOT AVAILABLE)

33102-200-033

Unavailable

SCREW, UNIT HOLDER (NOT AVAILABLE)

33102-283-000

Unavailable

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33117-200-023

Unavailable

HEADLIGHT UNIT (6V35/25W) This part replaces 33120-243-670.

33120-243-672

$62.34

HEADLIGHT UNIT (6V35/25W)

33120-243-672

$62.34

NUT, UNIT HOLDER

33128-200-033

Unavailable

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

BASE, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33743-329-670

Unavailable

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) (NOT AVAILABLE) This part replaces 37200-128-671.

37200-128-672

Unavailable

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) (NOT AVAILABLE)

37200-128-672

Unavailable

CABLE, SPEEDOMETER (NOT AVAILABLE)

44830-088-910

Unavailable

CABLE, SPEEDOMETER (NOT AVAILABLE) This part replaces 44830-128-670.

44830-088-910

Unavailable

CASE, HEADLIGHT *NH83L* (OFF BLACK) (NOT AVAILABLE)

61301-128-670CT

Unavailable

NUT, HEADLIGHT CASE

61303-105-000

$3.81

STAY, HEADLIGHT CASE (NOT AVAILABLE)

61304-128-670

Unavailable

RUBBER, HEADLIGHT (NOT AVAILABLE)

61306-128-300

Unavailable

BOLT, HEADLIGHT STAY (NOT AVAILABLE)

90120-329-670

Unavailable

BOLT, HEX. (8X25) This part replaces 92000-08025-0B.

92101-08025-0B

$1.79

BOLT, HEX. (8X25)

92101-08025-0B

$1.79

SCREW, PAN (5X12)

93500-05012-0B

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49
