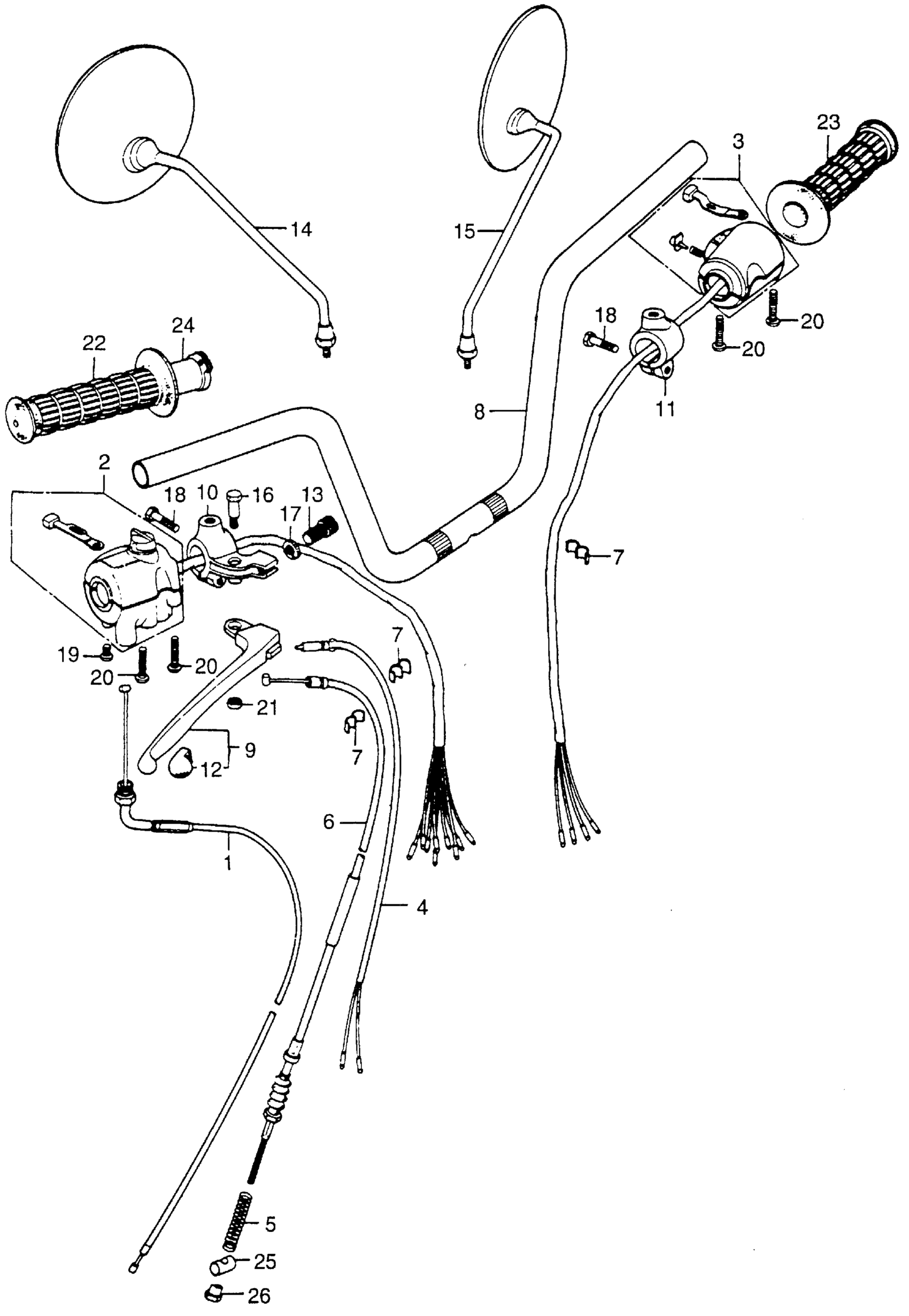

Honda ST90A MOTORCYCLE, JPN, VIN# ST90-1000002 HANDLEBAR + TURN SIGNAL Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-102-770

Unavailable

1

CABLE, THROTTLE This part replaces 17910-128-000.

17910-102-770

Unavailable

2

SWITCH ASSY., LIGHTING DIMMER (NOT AVAILABLE)

35150-128-671

Unavailable

3

SWITCH ASSY., TURN SIGNAL

35200-128-670

Unavailable

4

SWITCH ASSY., FR. STOP This part replaces 35340-102-003.

35340-GAN-620

$19.20

4

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

4

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

4

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

4

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

5

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

6

CABLE FR BRAKE This part replaces 45450-128-000.

45450-128-P00

Unavailable

7

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

8

HANDLEBAR (NOT AVAILABLE)

53100-128-000

Unavailable

9

LEVER, R. HANDLEBAR This part replaces 53170-074-670.

53175-KY0-980

$31.02

9

LEVER, R. HANDLEBAR This part replaces 53170-286-670.

53175-KY0-980

$31.02

9

LEVER, R. HANDLEBAR This part replaces 53170-329-000.

53175-KY0-980

$31.02

9

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$31.02

9

LEVER, R. HANDLEBAR This part replaces 53170-369-700.

53175-KY0-980

$31.02

9

LEVER, R. HANDLEBAR This part replaces 53175-286-000.

53175-KY0-980

$31.02

9

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$31.02

9

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

9

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

10

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-110-000

Unavailable

11

BRACKET, MIRROR (NOT AVAILABLE)

53171-128-670

Unavailable

12

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

12

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

12

CAP A, LEVER

95010-16001

$5.97

13

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

14

MIRROR, R. This part replaces 88110-074-000.

88110-329-730

Unavailable

14

MIRROR, R.

88110-329-730

Unavailable

15

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-074-000.

88220-329-730

Unavailable

15

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

16

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.90

16

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

17

NUT, FIXING

90321-315-670

$7.31

17

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

18

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

18

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

19

SCREW, PAN (5X6)

93500-05006-0A

$1.49

20

SCREW, PAN (5X24) (SOURCE: VINTAGE PARTS INC.)

93500-05024-0A

Unavailable

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

GRIP, R. HANDLE

95011-15100

Unavailable

23

GRIP, L. HANDLE (NOT AVAILABLE)

95011-15200

Unavailable

24

PIPE A, THROTTLE GRIP

95014-51100

$17.62

25

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

25

JOINT A, BRAKE ARM

95015-31001

$1.53

26

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
