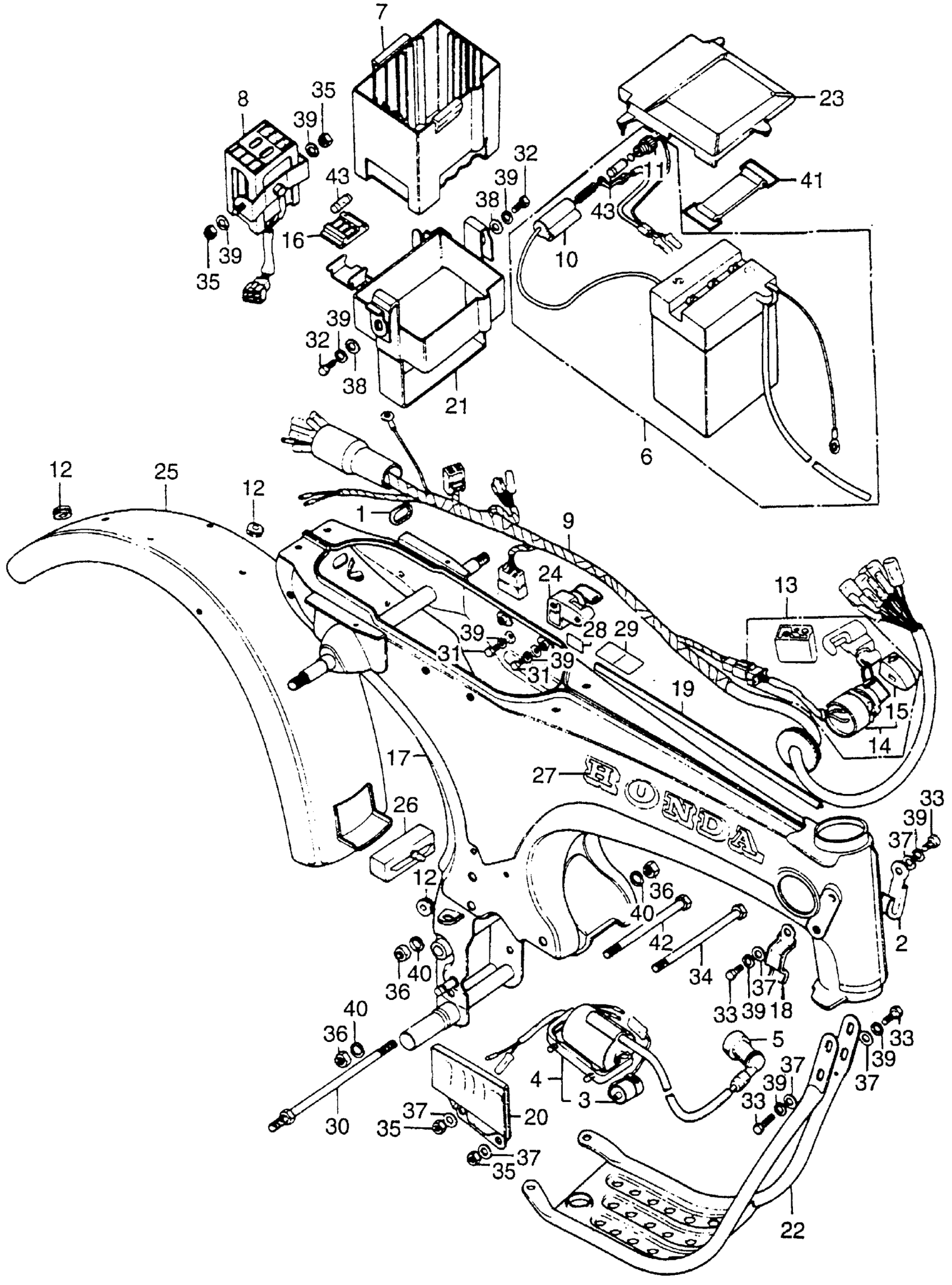

Honda ST90A MOTORCYCLE, JPN, VIN# ST90-1000002 FRAME + WIRE HARNESS Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.92

2

CLIP B, CLUTCH CABLE (NOT AVAILABLE)

22874-128-000

Unavailable

3

CONDENSER ASSY. (TOYO)

30250-052-156

Unavailable

4

COIL ASSY., IGNITION (TOYO) (NOT AVAILABLE)

30500-128-013

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

6

BATTERY (6V-5.5A) This part replaces 31500-102-772.

31500-102-772AH

Unavailable

6

BATTERY (6V-5.5A) This part replaces 31500-128-671.

31500-102-772AH

Unavailable

7

GUARD, BATTERY (NOT AVAILABLE)

31510-128-000

Unavailable

8

RECTIFIER ASSY. (NA USE ALT:31700-102-701)

31700-128-008

Unavailable

9

WIRE HARNESS (NOT AVAILABLE)

32100-128-000

Unavailable

10

CONNECTOR A, FUSE (NOT AVAILABLE)

32106-046-000

Unavailable

11

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

11

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

12

GROMMET, WIRE HARNESS

32983-028-000

$1.49

13

LOCK SET (NOT AVAILABLE)

35010-128-690

Unavailable

13

LOCK SET (NOT AVAILABLE) This part replaces 35030-128-671.

35010-128-690

Unavailable

14

SWITCH, COMBINATION This part replaces 35100-128-007.

35100-128-690

Unavailable

15

CAP, KEY

35112-098-670

Unavailable

16

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

17

FRAME *R23* (TAHITIAN RED)

50100-128-670EC

Unavailable

17

FRAME *G31* (MIGHTY GREEN)

50100-128-670NE

Unavailable

18

CLIP, WIRE HARNESS

50191-098-670

$4.33

19

MOLDING, FRAME

50305-098-000

$15.66

20

PROTECTOR, FRAME (NOT AVAILABLE)

50310-128-000

Unavailable

21

BOX, BATTERY (NOT AVAILABLE)

50325-128-000

Unavailable

22

FRAME, SUB (NOT AVAILABLE)

50400-128-000

Unavailable

23

LID, FRAME *NH1* (BLACK) This part replaces 50661-098-010B.

50661-098-010ZA

$25.93

23

LID, FRAME *NH1* (BLACK)

50661-098-010ZA

$25.93

24

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

24

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-110-701.

50710-086-007

$70.34

25

FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

80100-128-000XW

Unavailable

26

RUBBER, RR. FENDER MOUNT (NOT AVAILABLE)

80103-128-000

Unavailable

27

EMBLEM, FR. BODY (NOT AVAILABLE)

87124-128-000

Unavailable

28

LABEL, HELMET HOLDER (NOT AVAILABLE)

87511-323-000

Unavailable

29

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

30

BOLT A, ENGINE HANGER (NOT AVAILABLE)

90112-128-000

Unavailable

31

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

31

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

32

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

32

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

32

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

33

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

33

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

33

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

34

BOLT, HEX. (8X120) This part replaces 92000-08120-0A.

92020-08120-0A

Unavailable

35

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM)

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

36

NUT, HEX. (8MM)

94030-08000

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, PLAIN (6MM)

94101-06200

$1.49

39

WASHER, SPRING (6MM)

94111-06000

$1.49

40

WASHER, SPRING (8MM)

94111-08000

$1.49

41

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

41

BAND B2, BATTERY

95012-13001

$5.28

42

BOLT, HEX. (8X111) This part replaces 95300-08111.

95300-08111-00

$2.92

42

BOLT, HEX. (8X111)

95300-08111-00

$2.92

43

FUSE A (15A)

98200-11500

$1.49
