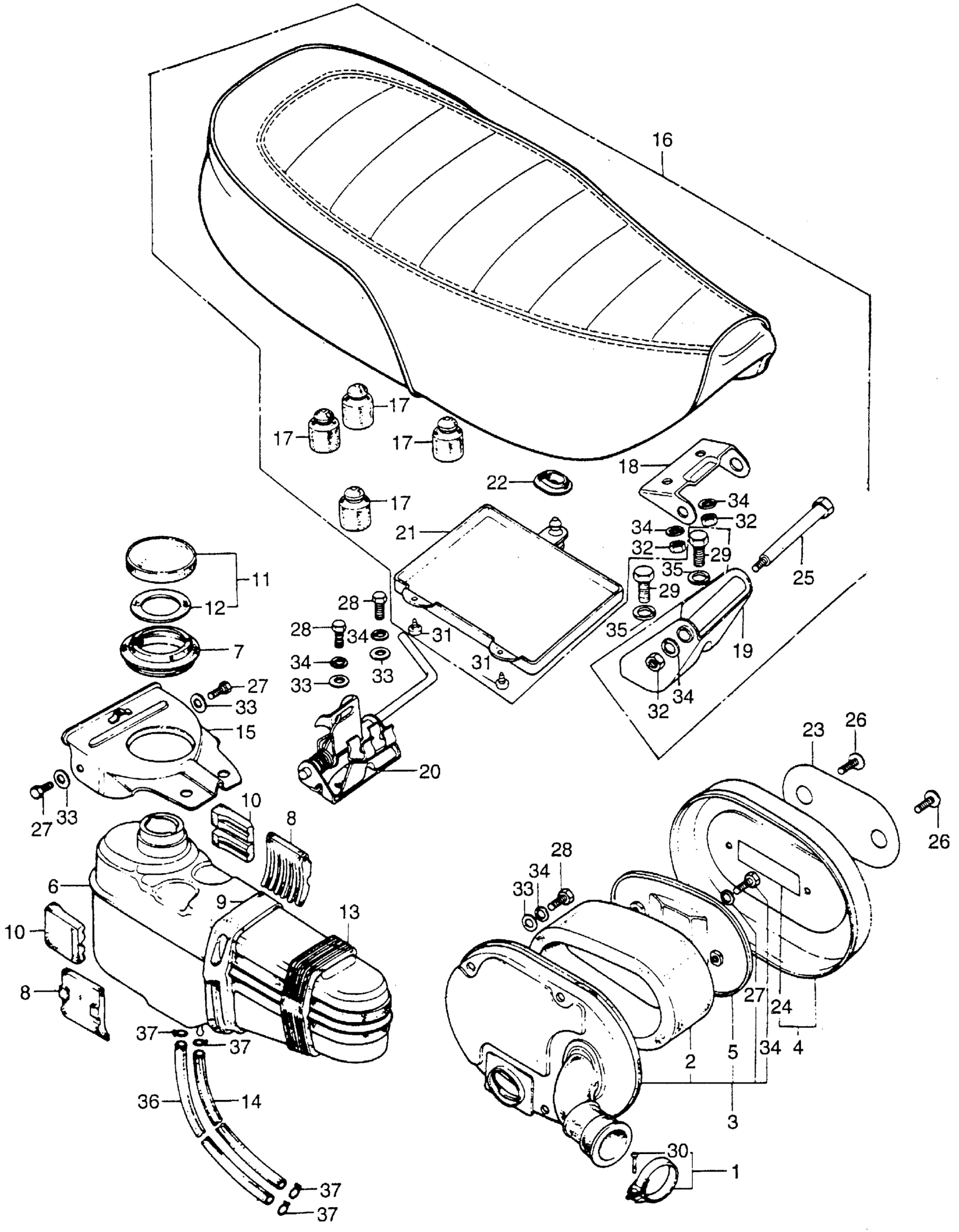

Honda ST90A MOTORCYCLE, JPN, VIN# ST90-1000002 AIR CLEANER + FUEL TANK Diagram

#

Description
Price

1

BAND, INSULATOR

16223-GBF-830

$11.87

1

BAND, INSULATOR This part replaces 17255-098-000.

16223-GBF-830

$11.87

1

BAND, INSULATOR This part replaces 17256-367-690.

16223-GBF-830

$11.87

2

ELEMENT, AIR CLEANER

17310-128-000

Unavailable

3

HOUSING, AIR CLEANER *NH35* (CLOUD SILVER) (NOT AVAILABLE)

17311-128-000AU

Unavailable

4

CAP, AIR CLEANER *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

17312-128-670XW

Unavailable

5

PLATE, CLEANER ELEMENT SEAL

17315-128-300

Unavailable

6

TANK, FUEL This part replaces 17500-098-020B.

17500-098-030

Unavailable

6

TANK, FUEL

17500-098-030

Unavailable

7

GASKET, FUEL FILLER NECK

17512-086-010

$7.05

8

PAD, FUEL TANK

17611-098-310

$6.36

9

BAND A, FUEL TANK (NOT AVAILABLE)

17612-128-000

$50.67

10

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17614-128-000

Unavailable

11

CAP, FUEL FILLER This part replaces 17620-041-000.

17620-171-020

Unavailable

11

CAP, FUEL FILLER This part replaces 17620-096-701.

17620-171-020

Unavailable

11

CAP, FUEL FILLER This part replaces 17620-096-702.

17620-171-020

Unavailable

11

CAP, FUEL FILLER This part replaces 17620-171-000.

17620-171-020

Unavailable

11

CAP, FUEL FILLER This part replaces 17620-171-010.

17620-171-020

Unavailable

12

GASKET This part replaces 17631-001-000.

17631-096-702

$2.47

12

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

13

BAND, FUEL TANK SETTING

17670-098-010

Unavailable

14

TUBE, FUEL RESERVE (NOT AVAILABLE)

17681-128-000

Unavailable

15

LID, FUEL TANK (NOT AVAILABLE)

50665-128-000

Unavailable

16

SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)

77100-128-670A

Unavailable

17

RUBBER A, SEAT SETTING (NOT AVAILABLE)

77204-128-000

$7.59

18

BRACKET A, SEAT

77210-126-000

$6.96

18

BRACKET A, SEAT This part replaces 77210-126-000B.

77210-126-000

$6.96

19

BRACKET B, SEAT *NH1* (BLACK) (NOT AVAILABLE)

77211-128-000B

Unavailable

20

CATCH, SEAT (NOT AVAILABLE)

77230-128-000

Unavailable

21

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

22

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

23

EMBLEM, AIR CLEANER HOUSING (NOT AVAILABLE) | Use up to Frame SN 1027703 This part replaces 87126-128-670.

87126-128-671

Unavailable

23

EMBLEM, AIR CLEANER HOUSING (NOT AVAILABLE) | Use from Frame SN 1027704

87126-128-671

Unavailable

24

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

25

PIN, SEAT HINGE

90101-001-010

Unavailable

26

BOLT B, AIR CLEANER SET (NOT AVAILABLE)

90113-128-000

Unavailable

27

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

29

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

30

SCREW, PAN (4X25)

93500-04025-0A

$1.93

31

SCREW, TAPPING (5X8)

93901-25080

$1.49

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

33

WASHER, PLAIN (6MM)

94101-06800

$1.49

34

WASHER, SPRING (6MM)

94111-06000

$1.49

35

WASHER, SPRING (8MM)

94111-08000

$1.49

36

TUBE, FUEL (5.3X280) (NOT AVAILABLE)

17516-ME9-000

Unavailable

36

BULK HOSE, FUEL (5.5X3000) (5.5X280)

95001-55003-60M

$47.32

37

CLIP, TUBE (B10)

95002-02100

$1.90
