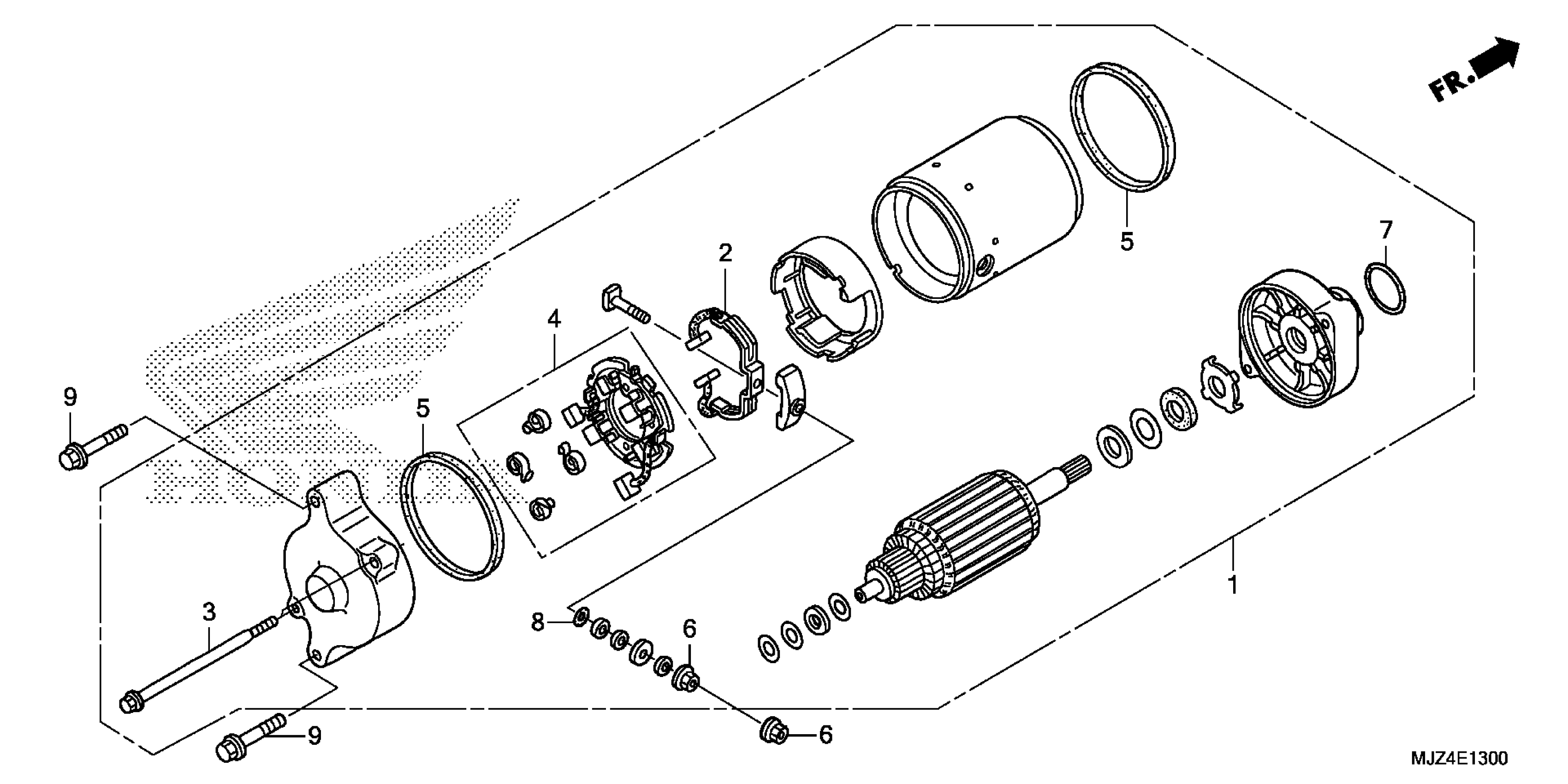

Honda ST1300PAAC (18) MOTORCYCLE, JPN, VIN# JH2SC515-JK600001 TO JH2SC515-JK699999 STARTING MOTOR (1) Diagram

#

Description
Price

1

STARTER MOTOR ASSY. (MITSUBA) | Use up to Engine SN 2712441.

31200-MCS-003

$435.04

2

TERMINAL SET, BRUSH | Use up to Engine SN 2712441.

31201-MR6-008

$21.00

3

BOLT, SETTING | Use up to Engine SN 2712441.

31205-MR1-008

$3.64

4

HOLDER SET, BRUSH | Use up to Engine SN 2712441.

31206-MR6-008

$22.08

5

RING (Honda Code 2541985) | Use up to Engine SN 2712441.

31207-KS5-901

$2.90

6

NUT-WASHER (6MM) | Use up to Engine SN 2712441.

90071-MB0-000

$1.88

7

O-RING (24.4X3.1) | Use up to Engine SN 2712441. This part replaces 91309-425-003.

91312-MG7-003

Unavailable

7

O-RING (24.4X3.1) (Honda Code 2618221) | Use up to Engine SN 2712441.

91312-MG7-003

Unavailable

8

O-RING (Honda Code 1292184) | Use up to Engine SN 2712441.

91320-MB0-000

$2.20

9

BOLT, FLANGE (6X35) | Use up to Engine SN 2712441.

95701-06035-00

$1.71
