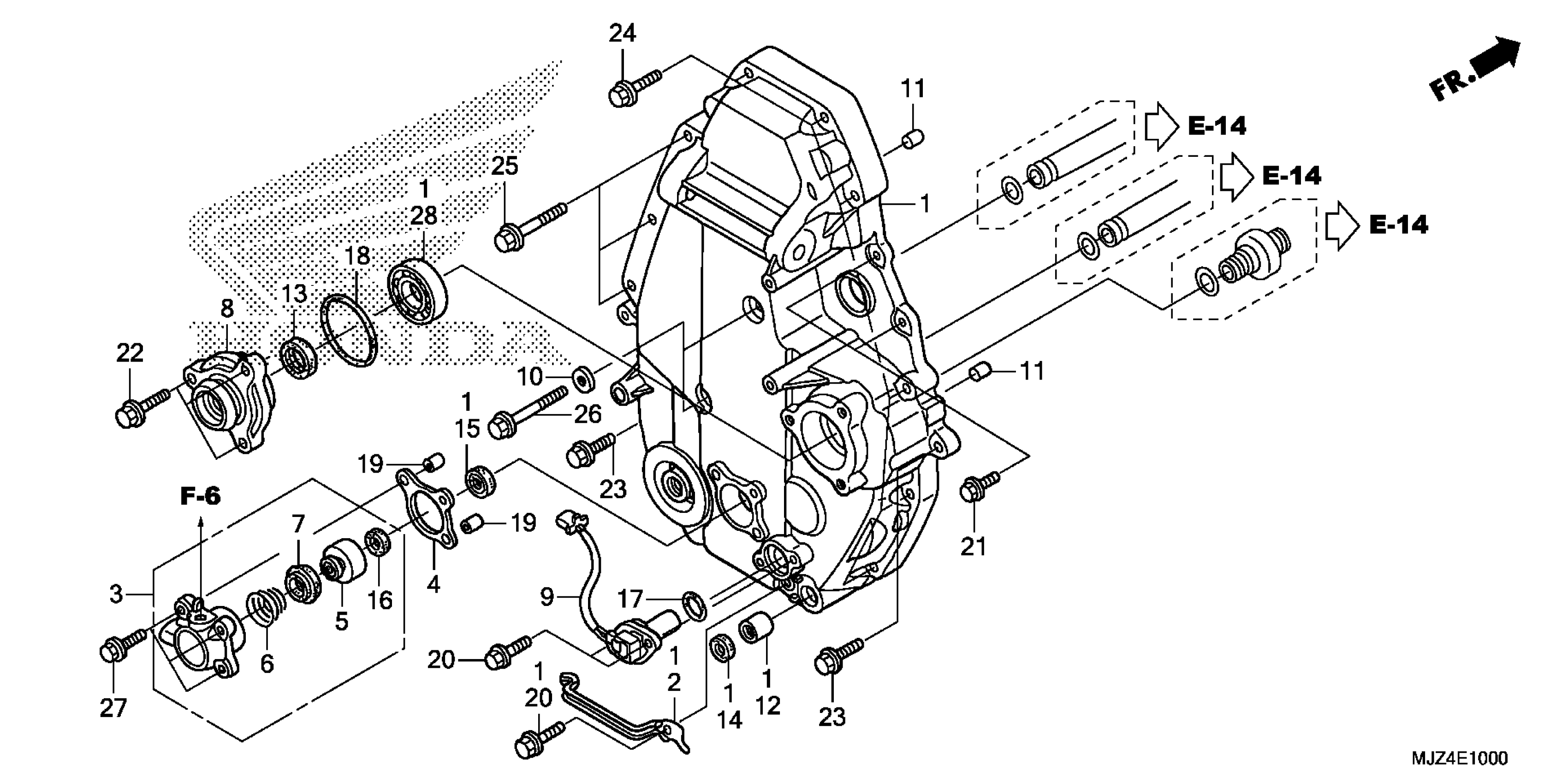

Honda ST1300PAAC (18) MOTORCYCLE, JPN, VIN# JH2SC515-JK600001 TO JH2SC515-JK699999 REAR CRANKCASE COVER @CLUTCH SLAVE CYLINDER Diagram

CASE, RR.

21110-MCS-D80

$513.00

CLAMP B, DRAIN HOSE

21114-MCS-000

$6.18

CYLINDER ASSY., CLUTCH SLAVE

22860-MCS-000

$94.55

GASKET, SLAVE CYLINDER

22862-MGJ-D00

$4.98

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

SPRING, SLAVE CYLINDER

22864-MT7-016

$6.21

CUP, SLAVE CYLINDER

22865-MJ8-003

$11.50

HOLDER, FINAL SHAFT BEARING

23751-MCS-000

$28.21

SENSOR ASSY., SPEED

37700-MCS-003

$128.89

WASHER, SEALING (8.5MM)

90463-MCS-000

$2.25

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$11.31

OIL SEAL (28X45X7)

91201-MV1-003

$7.32

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$4.06

O-RING (18.1X3.6)

91302-MAL-601

$3.53

O-RING (66MM)

91351-881-000

$4.61

PIN A, DOWEL (8X10)

94301-08100

$2.25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

BOLT, FLANGE (8X75)

95701-08075-00

$2.67

BOLT, FLANGE (8X85)

95701-08085-00

$2.48

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BEARING, RADIAL BALL (6206)

96100-62063-00

$19.49
