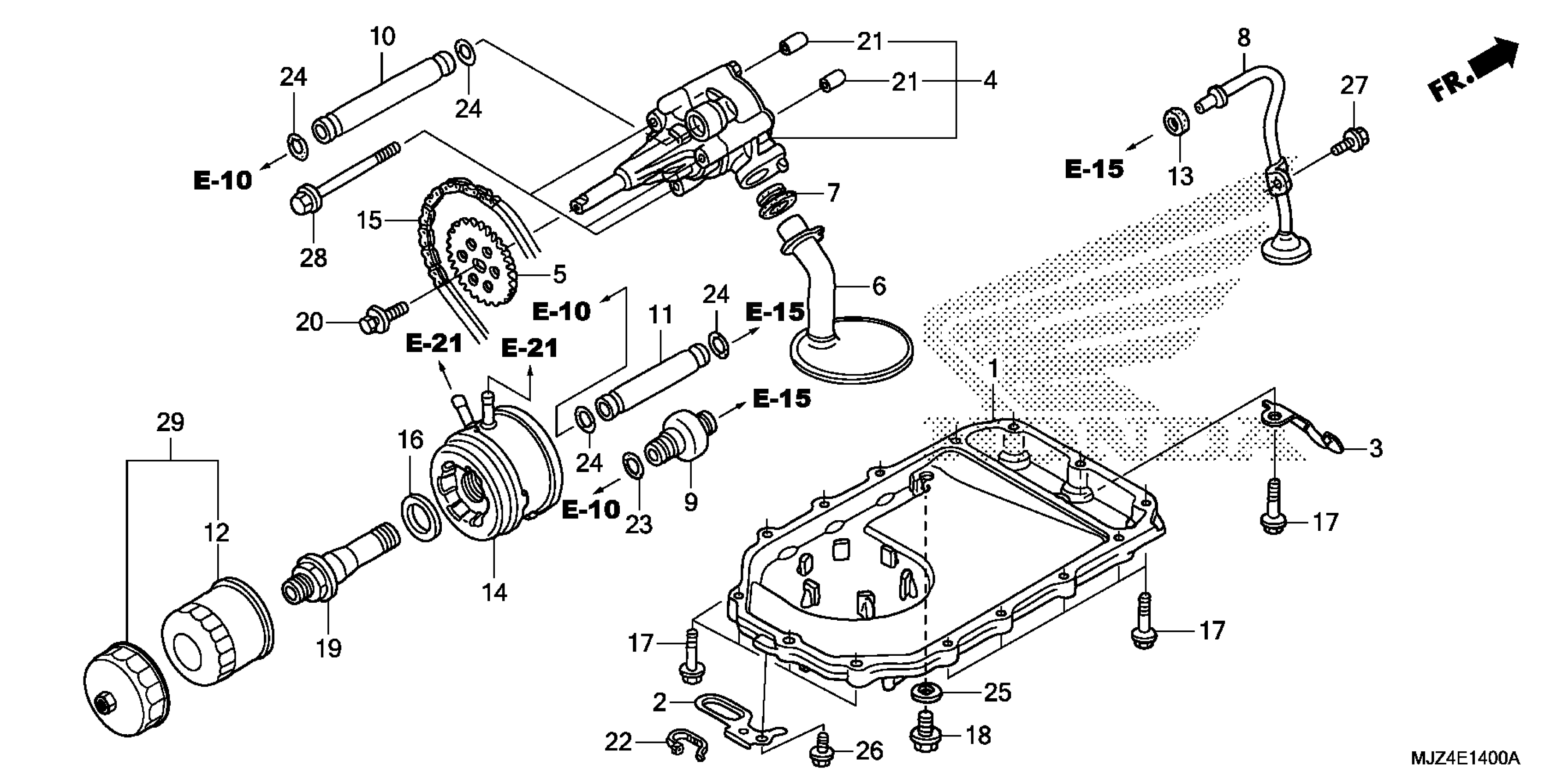

Honda ST1300PAAC (18) MOTORCYCLE, JPN, VIN# JH2SC515-JK600001 TO JH2SC515-JK699999 OIL PUMP@OIL PAN Diagram

#

Description
Price

1

PAN, OIL

11210-MCS-010

$243.07

2

CLAMP A, DRAIN HOSE

11211-MCS-010

$4.02

3

CLAMP, TUBE

11219-MCS-D80

$4.07

4

PUMP ASSY., OIL

15100-MCS-010

$199.62

5

SPROCKET, OIL PUMP DRIVEN (30T)

15134-MCS-000

$42.59

6

STRAINER, OIL

15150-MCS-000

$37.10

7

GASKET, OIL STRAINER

15154-MM5-000

$6.60

8

PIPE, OIL SCAVENGING

15160-MCS-000

$53.77

9

VALVE ASSY., RELIEF

15220-MW0-000

$40.77

10

PIPE A, OIL PASSAGE

15311-MCS-000

$14.16

11

PIPE B, OIL PASSAGE

15312-MCS-000

$12.54

12

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

13

SEAL, RING

15433-KGB-610

$2.72

14

COOLER, OIL

15700-MCS-003

$278.21

15

CHAIN, WATER PUMP DRIVE (70L)

19225-MCS-003

$30.56

16

WASHER, SPRING (24MM)

23929-PX4-700

$13.02

17

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

18

BOLT, DRAIN PLUG (14MM)

90004-MCS-000

$2.92

19

BOLT, OIL COOLER

90019-MCJ-000

$31.69

20

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

21

PIN, DOWEL (8X14)

90501-MB0-000

$3.11

22

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

23

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

23

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

24

OIL SEAL, PASSAGE PIPE (20.3MM)

91315-MCS-003

$2.92

25

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

26

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

27

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

28

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

29

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

29

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30
