Description

Price

1

MAINSHAFT (14T)

23211-MCS-000

$149.49

2

COUNTERSHAFT

23220-MCS-010

$140.57

3

GEAR, COUNTERSHAFT FIRST (36T)

23421-MCS-000

$105.94

4

GEAR, MAINSHAFT SECOND (18T)

23431-MCS-000

$51.82

5

GEAR, COUNTERSHAFT SECOND (31T)

23441-MCS-000

$103.84

6

COLLAR (30X11.2)

23442-MS2-610

$21.93

7

GEAR, MAINSHAFT THIRD (21T)

23451-MCS-000

$104.87

8

GEAR, COUNTERSHAFT THIRD (27T)

23461-MCS-000

$97.29

9

COLLAR, SPLINE (30X11)

23462-MAT-000

$21.25

10

GEAR, MAINSHAFT FOURTH (24T)

23471-MCS-000

$94.91

11

GEAR, COUNTERSHAFT FOURTH (25T)

23481-MCS-000

$109.99

12

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$28.57

13

GEAR, MAINSHAFT FIFTH (29T)

23491-MCS-000

$99.38

14

COLLAR (28X13)

23495-MM5-000

$21.25

15

GEAR, COUNTERSHAFT FIFTH (25T)

23501-MCS-000

$104.87

16

WASHER, SPECIAL (22MM)

90451-MCS-000

$1.71

17

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.04

18

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$5.85

19

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.65

20

WASHER, THRUST (28MM)

90458-729-920

$4.65

21

WASHER, SPLINE (30MM)

90463-MAT-000

$4.22

22

WASHER, SPLINE (28MM)

90463-MR7-000

$9.76

23

WASHER, LOCK (30MM)

90464-MAT-000

$6.21

24

WASHER, LOCK (28MM)

90464-MR7-000

$9.76

25

CIRCLIP (28MM)

90603-MN4-000

$3.58

26

CIRCLIP (30MM)

90604-MM5-000

$4.28

27

BEARING, RADIAL BALL (31X65X16)

91002-MCS-003

$23.35

28

BEARING, SPECIAL RADIAL BALL (63/22)

91003-MCS-003

$23.78

29

BEARING, NEEDLE (22X26X11)

91026-MB4-003

$13.38

30

CIRCLIP (OUTER) (22MM)

94510-22000

$0.77

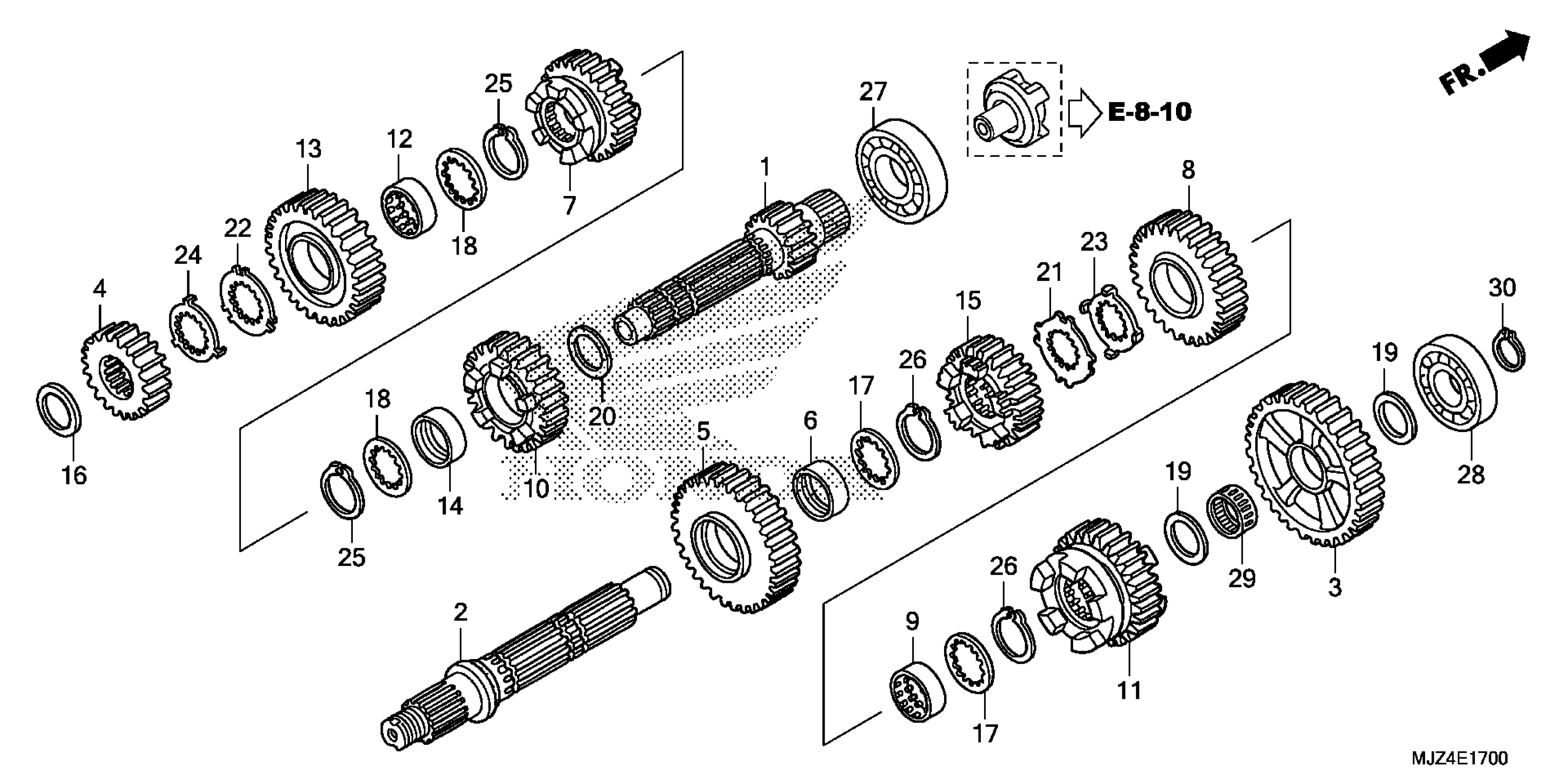

Honda ST1300PAAC (17) MOTORCYCLE, JPN, VIN# JH2SC515-HK500001 TO JH2SC515-HK599999 TRANSMISSION Diagram
