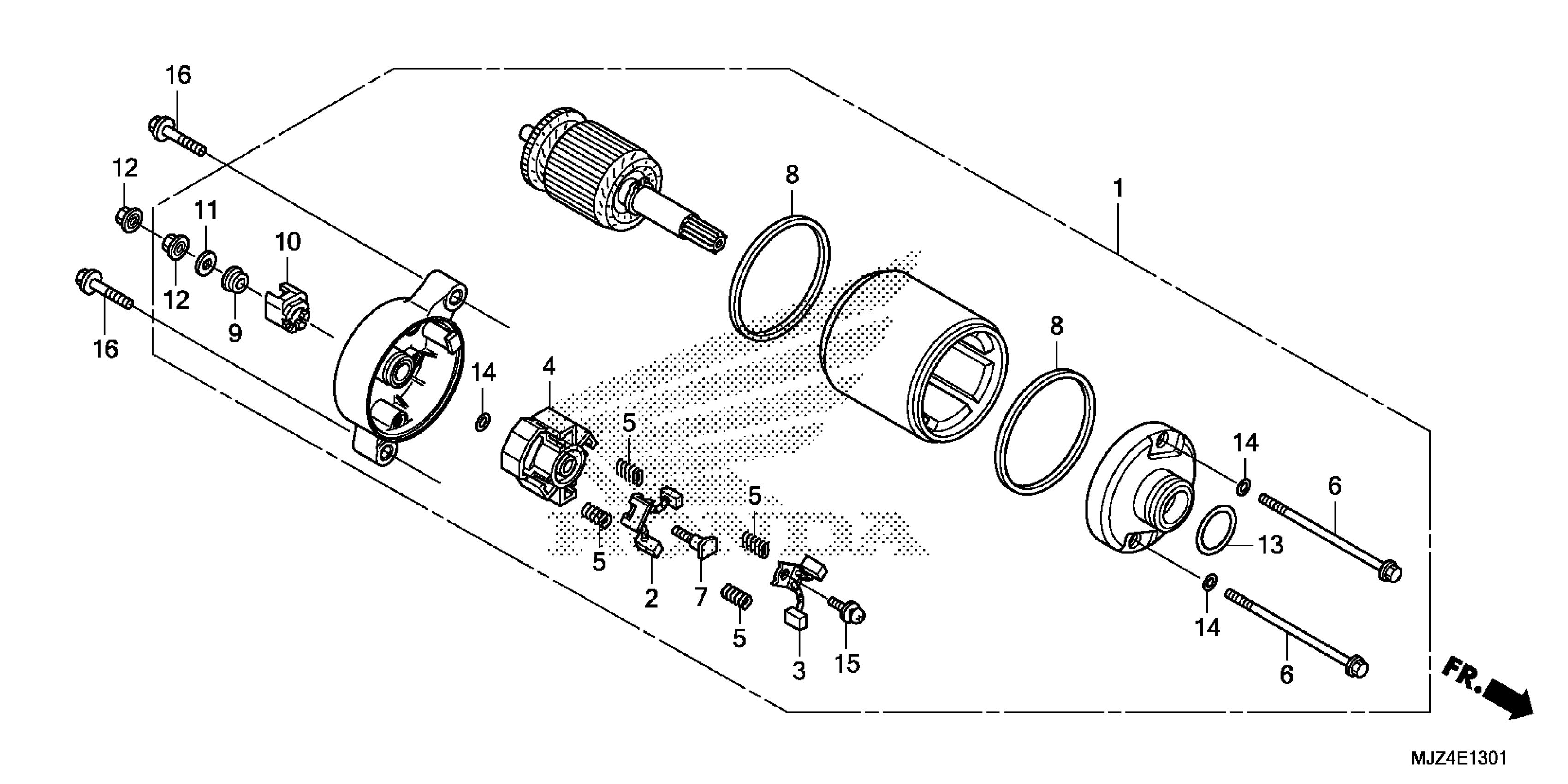

Honda ST1300PAAC (17) MOTORCYCLE, JPN, VIN# JH2SC515-HK500001 TO JH2SC515-HK599999 STARTING MOTOR (2) Diagram

#

Description
Price

1

STARTER MOTOR ASSY. | Use from Engine SN 2712442.

31200-MJN-A01

$523.48

2

BRUSH SET A, CARBON (Honda Code 8476772) | Use from Engine SN 2712442.

31201-MEW-921

$7.78

3

BRUSH SET B, CARBON (Honda Code 8476780) | Use from Engine SN 2712442.

31202-MEW-921

$13.08

4

HOLDER, BRUSH (Honda Code 8614117) | Use from Engine SN 2712442.

31203-MEW-921

$7.49

5

SPRING, CARBON BRUSH (Honda Code 8476798) | Use from Engine SN 2712442.

31204-MEW-921

$13.00

6

BOLT, SETTING | Use from Engine SN 2712442.

31205-MEW-921

$9.75

7

BOLT, TERMINAL | Use from Engine SN 2712442.

31206-MEW-921

$2.92

8

RING (Honda Code 2541985) | Use from Engine SN 2712442.

31207-KS5-901

$3.12

9

INSULATOR (Honda Code 8476822) | Use from Engine SN 2712442.

31208-MEW-921

$7.66

10

STOPPER, TERMINAL (Honda Code 8476830) | Use from Engine SN 2712442.

31209-MEW-921

$11.36

11

WASHER | Use from Engine SN 2712442.

31210-MEW-921

$1.82

12

NUT-WASHER (6MM) | Use from Engine SN 2712442.

90071-MB0-000

$1.97

13

O-RING (24.4X3.1) | Use from Engine SN 2712442. This part replaces 91309-425-003.

91312-MG7-003

$6.34

13

O-RING (24.4X3.1) (Honda Code 2618221) | Use from Engine SN 2712442.

91312-MG7-003

$6.34

14

O-RING (Honda Code 1292184) | Use from Engine SN 2712442.

91320-MB0-000

$2.43

15

SCREW-WASHER (5X12) (Honda Code 0368621) | Use from Engine SN 2712442.

93892-05012-08

$1.49

16

BOLT, FLANGE (6X32) (Honda Code 2105856) | Use from Engine SN 2712442.

95701-06032-00

$1.89
