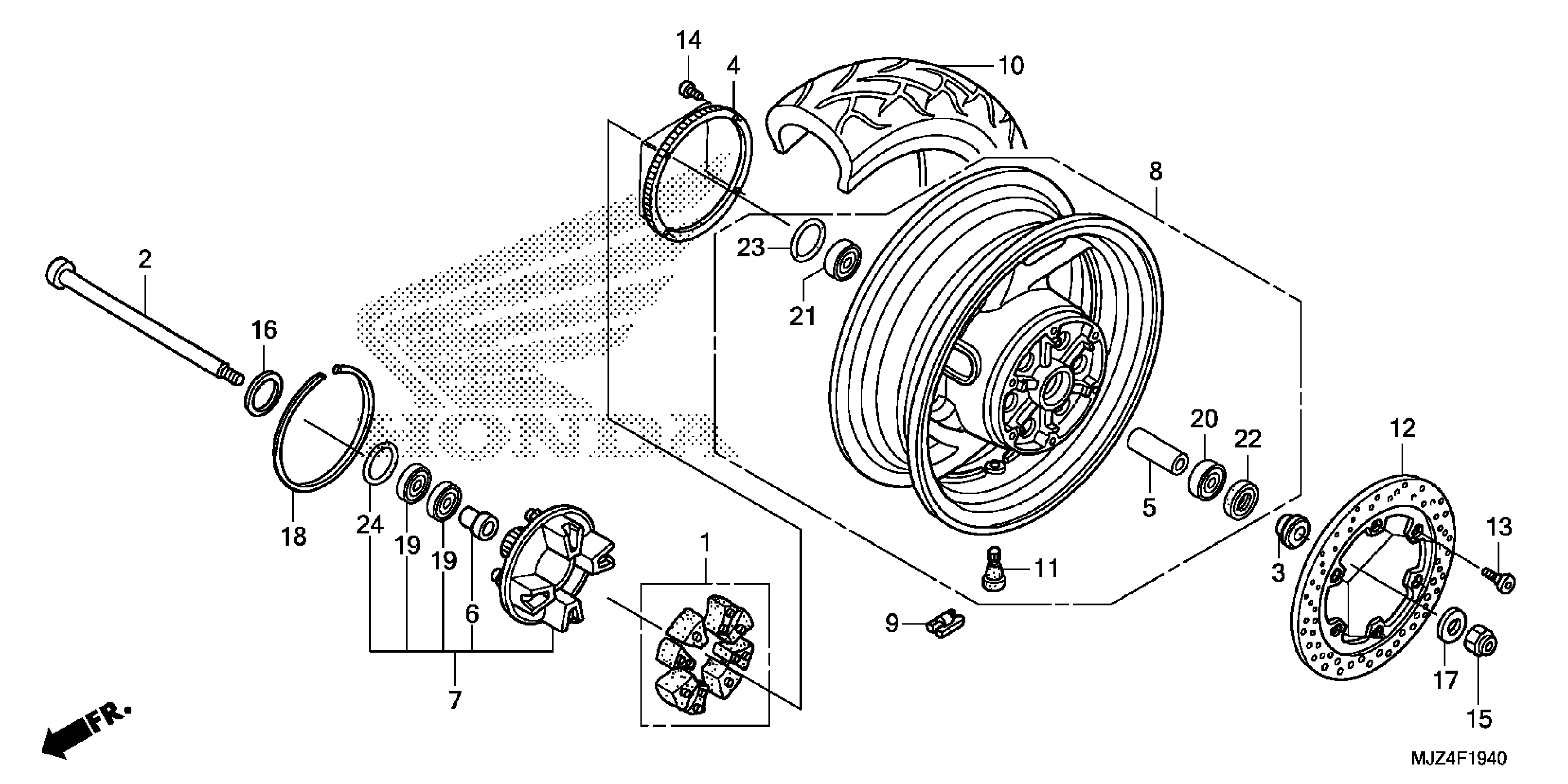

Description

Price

1

DAMPER SET, WHEEL

06410-MCS-G00

$25.69

2

AXLE, RR. WHEEL

42301-MCS-G00

$55.84

3

COLLAR, RR. WHEEL SIDE

42311-MCS-G00

$18.41

4

RING, RR. PULSER

42515-MCS-G00

$167.74

5

COLLAR, RR. AXLE DISTANCE

42620-MT3-000

$22.56

6

COLLAR A, RR. AXLE DISTANCE

42624-MCH-000

$14.43

7

FLANGE SET, FINAL DRIVEN

42630-MCS-G00

$374.52

8

WHEEL SUB ASSY,RR This part replaces 42650-MCS-760.

42650-MCS-B90

$907.89

9

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

9

WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)

42705-MCF-D60

$15.38

9

WEIGHT, BALANCE (30) WEIGHT, BALANCE (10G)

42706-MCF-D60

$14.48

10

TIRE, RR. (170/60ZR17 M/C 72W) (BS)

42711-MCS-G04

$260.43

11

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

12

DISK, RR. BRAKE

43351-MCS-G00

$406.16

13

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

14

BOLT, TORX (5X14)

90131-MY3-781

$2.89

15

NUT, U (18MM)

90306-MCS-G01

$6.81

16

WASHER (20X31.5X2)

90401-MAS-000

$3.21

17

WASHER, SPECIAL (18MM)

90432-MCS-G00

$2.87

18

CIRCLIP (INNER) (188)

90651-MCH-000

$17.70

19

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

20

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

21

BEARING, RADIAL BALL (20X47X20.6) (TOYO)

91053-MN5-003

$74.94

22

DUST SEAL (30X47X13)

91251-MCS-G01

$9.98

23

O-RING (61X2)

91302-MA6-003

$5.17

24

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76

24

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.
