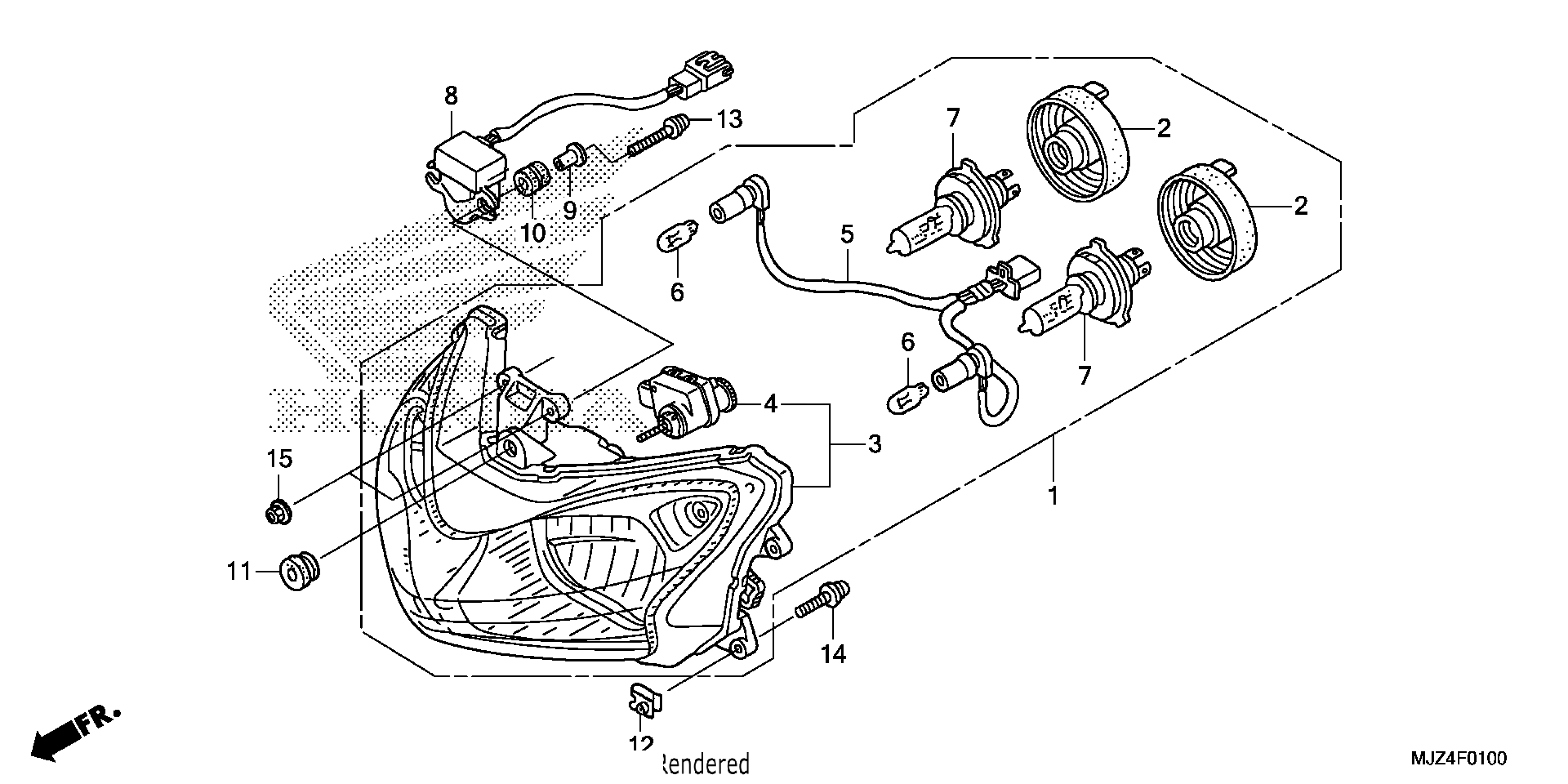

Honda ST1300PAAC (17) MOTORCYCLE, JPN, VIN# JH2SC515-HK500001 TO JH2SC515-HK599999 HEADLIGHT Diagram

HEADLIGHT ASSY. (COO)

33100-MCS-305

$741.75

COVER, RUBBER

33112-KPB-003

$12.16

HEADLIGHT UNIT (COO)

33120-MCS-305

$655.69

ADJUSTER UNIT, R. HEADLIGHT

33130-MCA-003

$89.37

SOCKET, POSITION LIGHT

33140-MCJ-D00

$19.57

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.74

BULB, HEADLIGHT (12V 45/45W) (STANLEY)

34901-MS2-672

$34.40

SENSOR, BANK ANGLE

35161-MCS-G02

$96.68

COLLAR

35162-MN5-003

$6.93

GROMMET

35163-MN5-003

$3.00

GROMMET, SIDE COVER (PER MS TODA EMAIL 2/26/01)

83601-MN5-000

$2.80

NUT, FLOATING (5MM)

90306-SA0-000

$8.82

BOLT-WASHER (4X30)

93401-04030-07

$0.62

SCREW-WASHER (5X22)

93894-05022-07

$1.00

NUT, FLANGE (4MM)

94050-04000

$1.13
