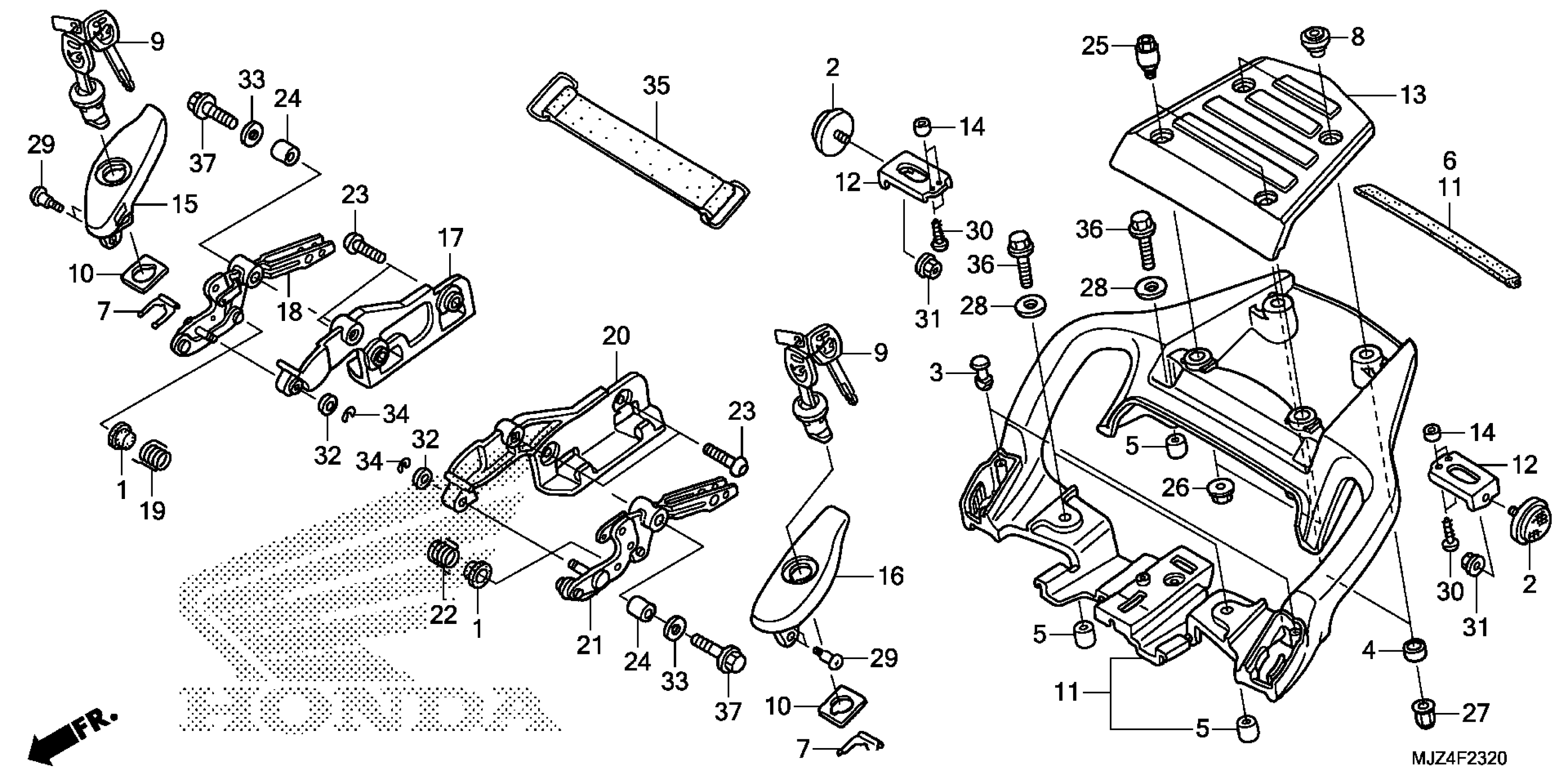

Honda ST1300PAAC (17) MOTORCYCLE, JPN, VIN# JH2SC515-HK500001 TO JH2SC515-HK599999 GRAB RAIL Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19113-MB1-870

$3.31

2

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

3

PLUG, HEAD PIPE

50049-046-000

$1.88

4

COLLAR, ENGINE MOUNTING

50318-GE2-000

$5.71

5

COLLAR, TOP BRIDGE

53236-171-000

$2.24

6

RUBBER, SEAL

64121-MCS-G00

$3.75

7

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.58

8

COLLAR, SINGLE SEAT COWL

77221-MCS-A30

$14.57

9

LOCK ASSY., GRAB RAIL LEVER

77226-MCS-G00

$16.09

10

WASHER, SEAT LOCK

77236-GZ5-000

$2.80

11

GRAB RAIL, RR. *NH295M* (SPARKLING SILVER METALLIC)

77310-MCS-770ZA

$278.53

12

STAY, SIDE REFLECTOR

77312-MCS-770

$2.66

13

COVER, GRAB RAIL CENTER

77313-MCS-G00

$23.28

14

COLLAR, REFLECTOR

77316-MCS-770

$1.81

15

LEVER, R. GRAB RAIL *NH295M* (SPARKLING SILVER METALLIC)

77340-MCS-G00ZB

$14.44

16

LEVER, L. GRAB RAIL *NH295M* (SPARKLING SILVER METALLIC)

77350-MCS-G00ZB

$17.49

17

HOLDER, R. SADDLEBAG

84240-MCS-G00

$56.91

18

LEVER, R. SADDLEBAG LOCK

84260-MCS-G00

$54.43

19

SPRING, R. GRAB RAIL LEVER

84273-MCS-G00

$3.13

20

HOLDER, L. SADDLEBAG

84340-MCS-G00

$56.90

21

LEVER, L. SADDLEBAG LOCK

84360-MCS-G00

$54.43

22

SPRING, L. GRAB RAIL LEVER

84373-MCS-G00

$3.29

23

BOLT, SOCKET (8X22)

90100-GCT-J50

$1.79

24

COLLAR, SADDLEBAG HOLDER PIVOT

90123-MCS-G00

$2.74

25

BOLT, SINGLE SEAT COWL

90139-MCS-A30

$24.69

26

NUT, FLANGE (8MM)

90301-GCT-J50

$0.87

27

NUT, HEX. CAP (8MM)

90301-KM1-010

$4.05

28

WASHER (8.5X20)

90526-GB0-930

$1.90

29

SCREW, SPECIAL PAN (5MM)

91422-KFT-620

$1.32

30

SCREW-WASHER (4X20)

93893-04020-07

$0.84

31

NUT, FLANGE (6MM)

94050-06000

$0.60

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

33

WASHER, PLAIN (8MM)

94102-08800

$0.87

34

E-RING (4MM)

94540-04010

$1.91

35

BAND F, BATTERY (155MM)

95012-17001

$6.90

36

BOLT, FLANGE (8X32)

96300-08032-00

$1.50

37

BOLT, FLANGE (8X32)

96400-08032-00

$2.71
