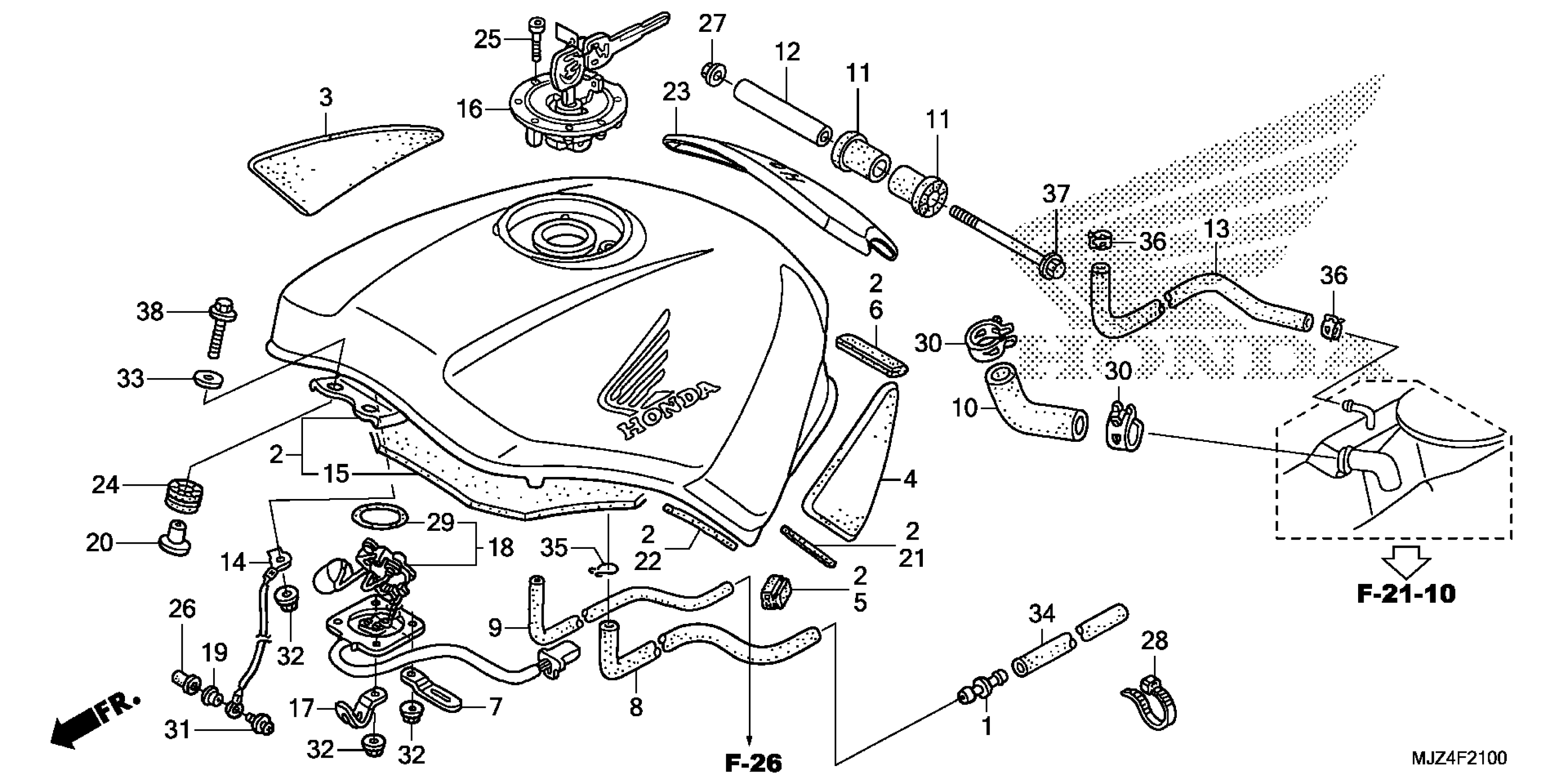

Honda ST1300PAAC (17) MOTORCYCLE, JPN, VIN# JH2SC515-HK500001 TO JH2SC515-HK599999 FUEL TANK Diagram

JOINT, BREATHER TUBE

17359-419-670

$1.95

TANK SET, FUEL (TYPE4) (WL)

17500-MCS-D90ZD

$938.39

PAD, R. KNEE GRIP

17506-MCS-A31

$113.77

PAD, L. KNEE GRIP

17507-MCS-A31

$113.77

CUSHION, FUEL TANK

17514-MCS-G00

$4.80

TRIM, FUEL TANK

17516-HC0-000

$4.49

CLAMP A, TUBE

17522-MCW-D00

$2.70

TUBE, DRAIN

17543-MCS-L00

$13.69

TUBE, BREATHER

17544-MCS-R10

$7.90

TUBE, FUEL JOINT

17545-MCS-R10

$27.97

CUSHION, RR. FUEL TANK PIVOT

17548-MCS-G00

$5.67

COLLAR, TANK SETTING

17549-MCS-G00

$4.89

TUBE, AIR VENT

17574-MCS-R10

$13.16

CABLE, FUEL TANK STOPPER

17575-MCS-G01

$8.23

MAT, FUEL TANK

17590-MCS-G00

$12.02

CAP, FUEL FILLER This part replaces 17620-MAS-E03.

17620-MAS-E04

$202.36

CAP, FUEL FILLER

17620-MAS-E04

$202.36

CLIP, SUB-WIRE

32901-MA1-000

$4.95

FUEL UNIT SET

37080-MCS-G00

$114.01

COLLAR, RIVETING

61102-329-300

$2.92

COLLAR, SETTING

61104-422-000

$6.91

MAT D, HEAT GUARD

64368-MCS-G00

$1.49

MAT E, HEAT GUARD

64369-MCS-G00

$2.67

PAD, TANK This part replaces 64386-MCS-A32.

08P61-MCS-800

Unavailable

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

O-RING (39.5X5)

91305-MC7-000

$3.31

CLAMP, TUBE (D23.6)

91405-MCS-G00

$4.30

SCREW-WASHER (5X20)

93891-05020-00

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49

BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M)

95001-75008-60M

$103.82

CLIP, TUBE (B12)

95002-02120

$2.00

CLAMP, TUBE (D10)

95002-41000-08

$2.41

BOLT, FLANGE (6X115)

95701-06115-08

$3.70

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
