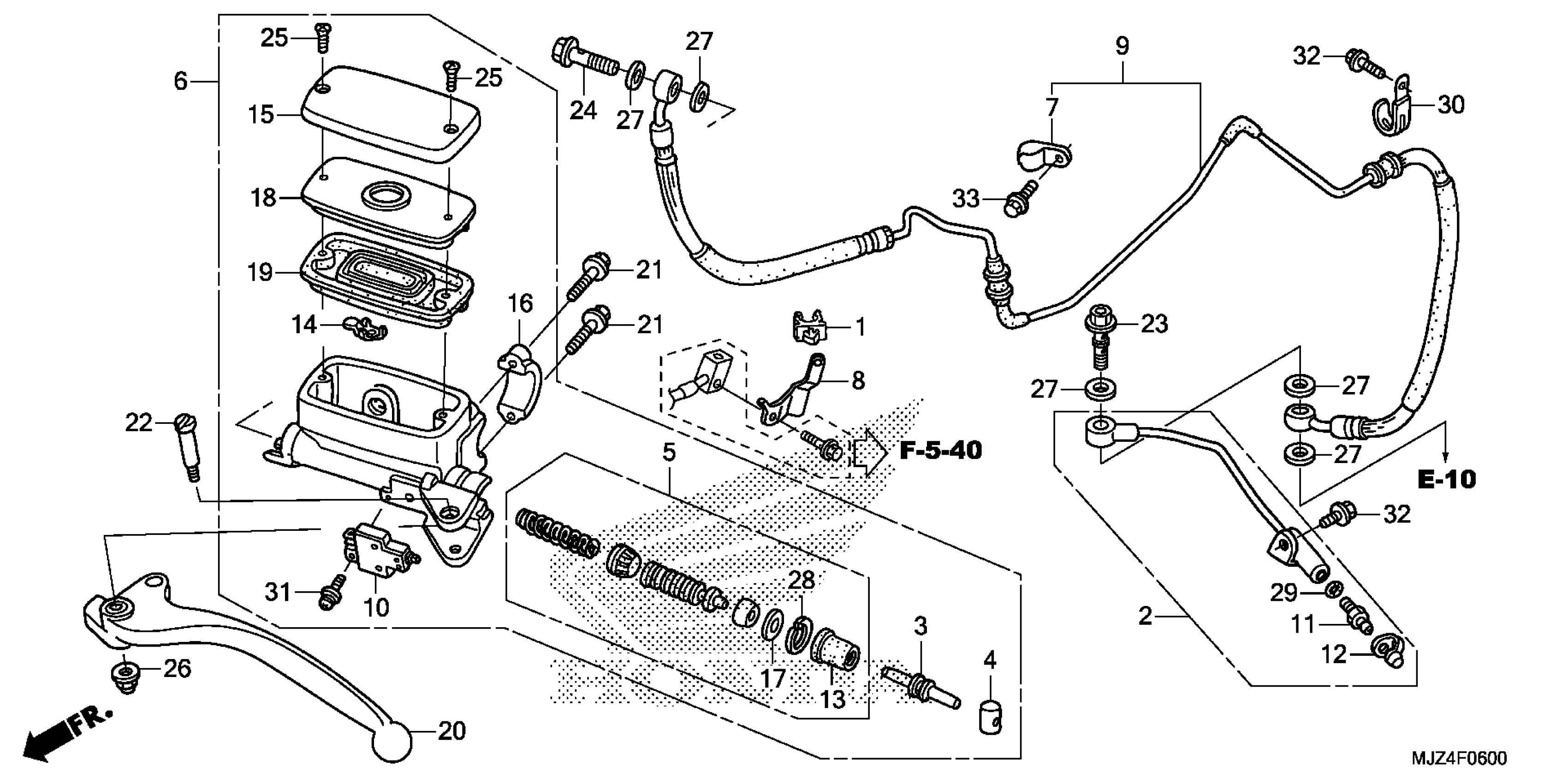

Honda ST1300PAAC (17) MOTORCYCLE, JPN, VIN# JH2SC515-HK500001 TO JH2SC515-HK599999 CLUTCH MASTER CYLINDER Diagram

CLIP, THROTTLE WIRE

17938-SE0-941

$6.80

PIPE ASSY., BLEEDER

22865-MCS-G00

$63.33

ROD, PUSH

22884-MB0-006

$20.66

BUSH

22885-MB0-006

$12.95

PISTON SET, MASTER

22886-MCS-G01

$63.94

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MCS-A31

$390.31

CLAMP A, CLUTCH PIPE

22891-MCS-G00

$4.05

CLAMP C, CLUTCH PIPE

22893-MCS-G01

$10.57

PIPE, CLUTCH

22900-MCS-A31

$198.48

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

SCREW, BLEEDER

43352-MG9-006

$5.44

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

CAP, BLEEDER

43353-461-771

$5.05

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$30.62

HOLDER, MASTER CYLINDER

45517-MCS-761

$11.41

PLATE, STOPPER

45518-MB0-006

$1.84

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

LEVER, L. HANDLE (COO) This part replaces 53178-MCS-G01.

53178-MCS-305

$27.75

LEVER, L. HANDLE (COO)

53178-MCS-305

$27.75

BOLT, FLANGE (6X22) This part replaces 90010-GHB-660.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X34)

90145-MR8-014

$7.28

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

SCREW, FLAT (4X12)

90158-MT7-000

$2.15

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

CLIP, CORD

91405-943-000

$3.30

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
