Description

Price

1

COWL SET (UPPER) NH138 (WL) (SHASTA WHITE)

64210-MCS-G00ZG

$485.13

2

GUIDE, COWL (UPPER)

64215-MCS-G00

$11.43

3

PANEL, METER

64330-MCS-G00

$247.13

4

MIRROR ASSY., R. BACK (COO) This part replaces 88110-MCS-G01.

88110-MCS-305

$125.78

4

MIRROR ASSY., R. BACK (COO)

88110-MCS-305

$125.78

5

COVER, R. MIRROR NH138 (SHASTA WHITE)

88111-MCS-G00ZD

$118.79

6

RUBBER, R. MIRROR COVER

88112-MCS-A30

$20.71

7

WASHER, MIRROR SETTING SPRING

88115-MT3-000

$6.52

8

MIRROR ASSY., L. BACK (COO) This part replaces 88120-MCS-G01.

88120-MCS-305

$129.56

8

MIRROR ASSY., L. BACK (COO)

88120-MCS-305

$129.56

9

COVER, L. MIRROR NH138 (SHASTA WHITE)

88121-MCS-G00ZD

$118.79

10

RUBBER, L. MIRROR COVER

88122-MCS-A30

$20.71

11

STAY, R. FR. PATROL

88800-MCS-A30

$59.41

12

STAY, L. FR. PATROL

88900-MCS-A30

Unavailable

13

SCREW, PAN (5X13)

90133-MCS-G00

$1.00

14

BAND, WIRE HARNESS (Honda Code 1746650)

90650-MA6-720

$4.65

15

NUT, CLIP (5MM)

90677-KAN-961

$3.89

16

SCREW, PAN (5X12)

93500-05012-0A

$0.84

17

SCREW, TAPPING (3X12)

93903-22320

$0.78

18

SCREW, TAPPING (4X12)

93903-24380

Unavailable

19

NUT, FLANGE (5MM)

94050-05000

$1.21

20

CLIP, TUBE (B10)

95002-02100

$1.75

21

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

22

BOLT, FLANGE (6X40)

96001-06040-00

$2.59

23

BOLT, FLANGE (6X50) BOLT, FLANGE (6X55)

96001-06050-00

$2.54

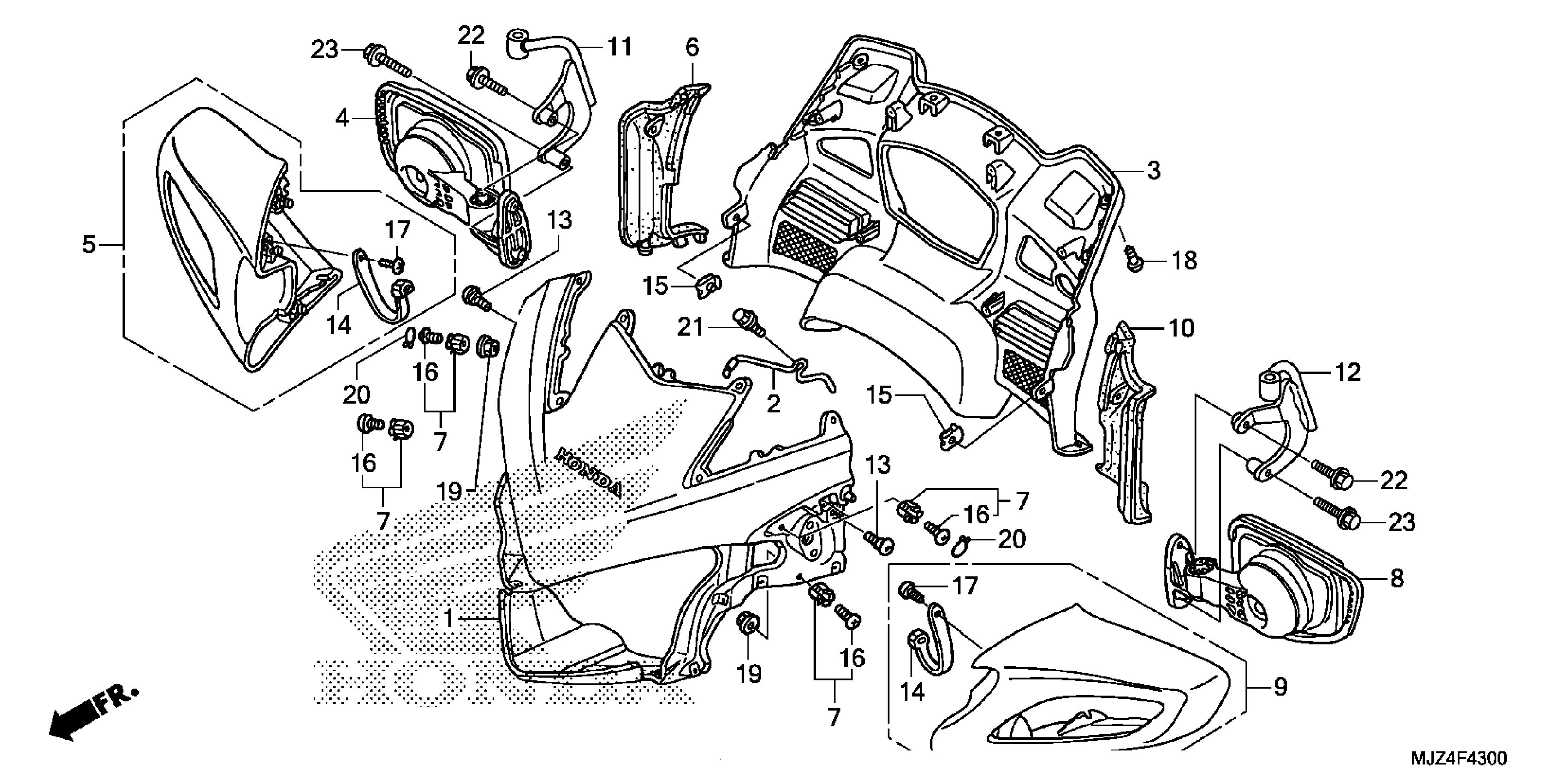

Honda ST1300PAAC (16) MOTORCYCLE, JPN, VIN# JH2SC515-GK400001 TO JH2SC515-GK499999 UPPER COWL Diagram

COWL SET (UPPER) *NH138* (WL) (SHASTA WHITE)
