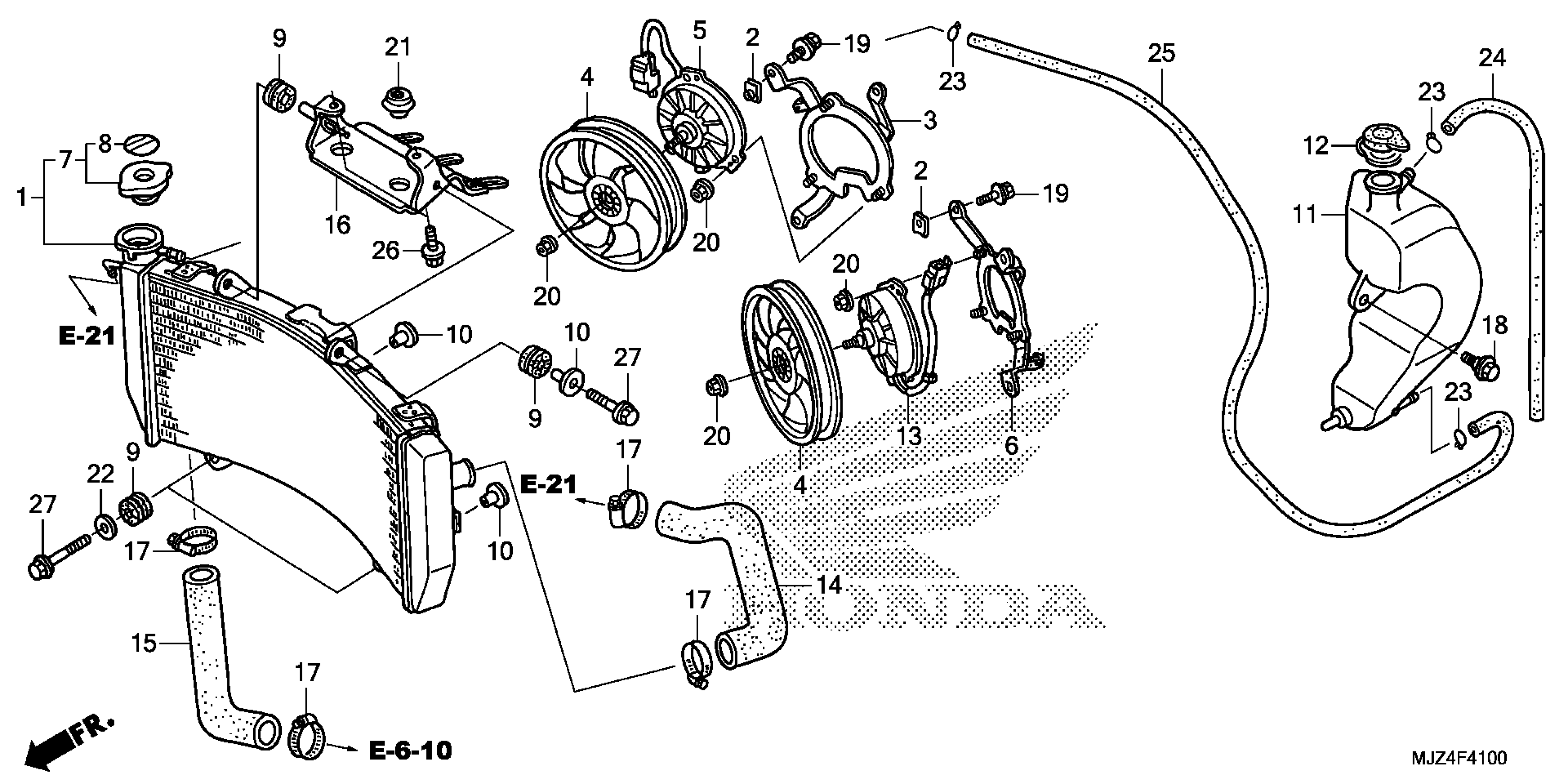

Honda ST1300PAAC (16) MOTORCYCLE, JPN, VIN# JH2SC515-GK400001 TO JH2SC515-GK499999 RADIATOR Diagram

#

Description
Price

1

RADIATOR (COO) This part replaces 19010-MCS-G01.

19010-MCS-305

$664.82

1

RADIATOR (COO)

19010-MCS-305

$664.82

2

NUT, SETTING (6MM)

19014-KEA-003

$2.95

3

SHROUD, R. (COO) This part replaces 19015-MCS-G01.

19015-MCS-305

$65.57

3

SHROUD, R. (COO)

19015-MCS-305

$65.57

4

FAN, COOLING

19020-MEA-671

$39.94

5

MOTOR ASSY., R. FAN

19030-MCS-D91

$266.38

6

SHROUD, L.

19035-MCS-761

$73.41

7

CAP, RADIATOR

19037-GEE-710

$27.80

8

LABEL, RADIATOR CAP

19046-PAA-A00

$3.40

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

10

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.29

11

TANK, RESERVE (COO) This part replaces 19101-MCS-G00.

19101-MCS-305

$38.25

11

TANK, RESERVE (COO)

19101-MCS-305

$38.25

12

CAP, RESERVE TANK

19109-KPC-640

$4.59

13

MOTOR ASSY., L. FAN

19130-MCS-D91

$281.21

14

HOSE, RADIATOR (UPPER)

19501-MCS-G00

$19.93

15

HOSE, RADIATOR (LOWER)

19502-MCS-G00

$16.54

16

STAY, RADIATOR (UPPER)

19515-MCS-G00

$24.99

17

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

18

BOLT, FLANGE (6MM)

90111-162-000

$2.66

19

BOLT-WASHER (6X14)

90120-GHB-611

$2.47

20

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

21

PLUG, HOLE (20MM)

90861-SA5-003

$7.50

22

WASHER, PLAIN (6MM)

94103-06700

$0.66

23

CLIP, TUBE (B10)

95002-02100

$1.75

24

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

Unavailable

25

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

Unavailable

26

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

27

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.24
