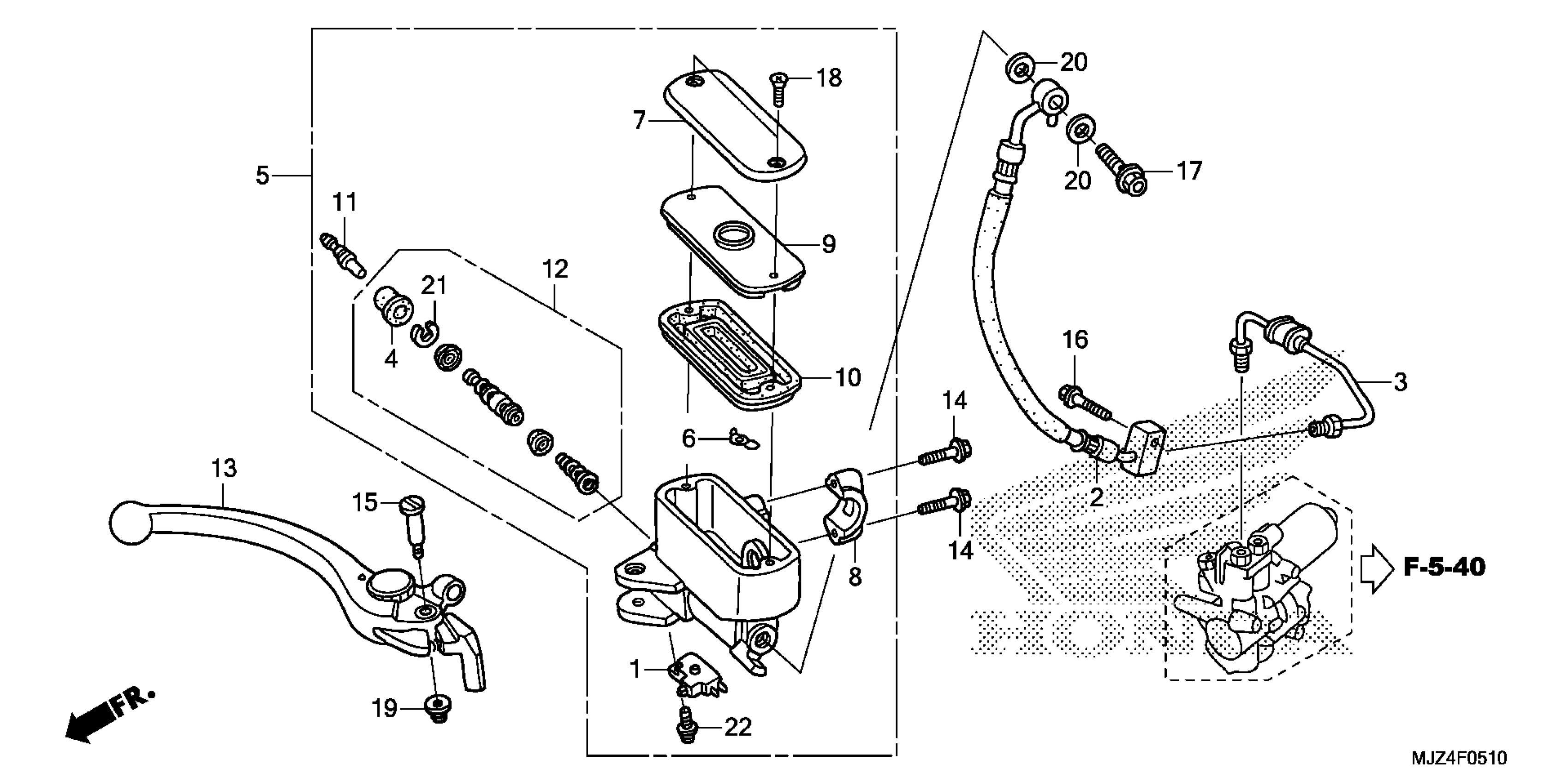

Honda ST1300PAAC (16) MOTORCYCLE, JPN, VIN# JH2SC515-GK400001 TO JH2SC515-GK499999 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-601

$12.97

HOSE A, FR. BRAKE

45125-MCS-A31

$68.43

PIPE A, FR. BRAKE

45126-MCS-G02

$13.38

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MCS-761

$264.18

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$30.62

HOLDER, MASTER CYLINDER

45517-MCS-761

$11.41

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

ROD, PUSH

45525-MAJ-G41

$22.34

PISTON SET, FR. MASTER CYLINDER

45530-MAJ-G41

$58.02

LEVER ASSY., R. HANDLE

53170-MCS-G01

$53.93

BOLT, FLANGE (6X22) This part replaces 90010-GHB-660.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, FLANGE (6X28)

90114-MCS-G00

$1.49

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

SCREW, FLAT (4X12)

90158-MT7-000

$2.15

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49
