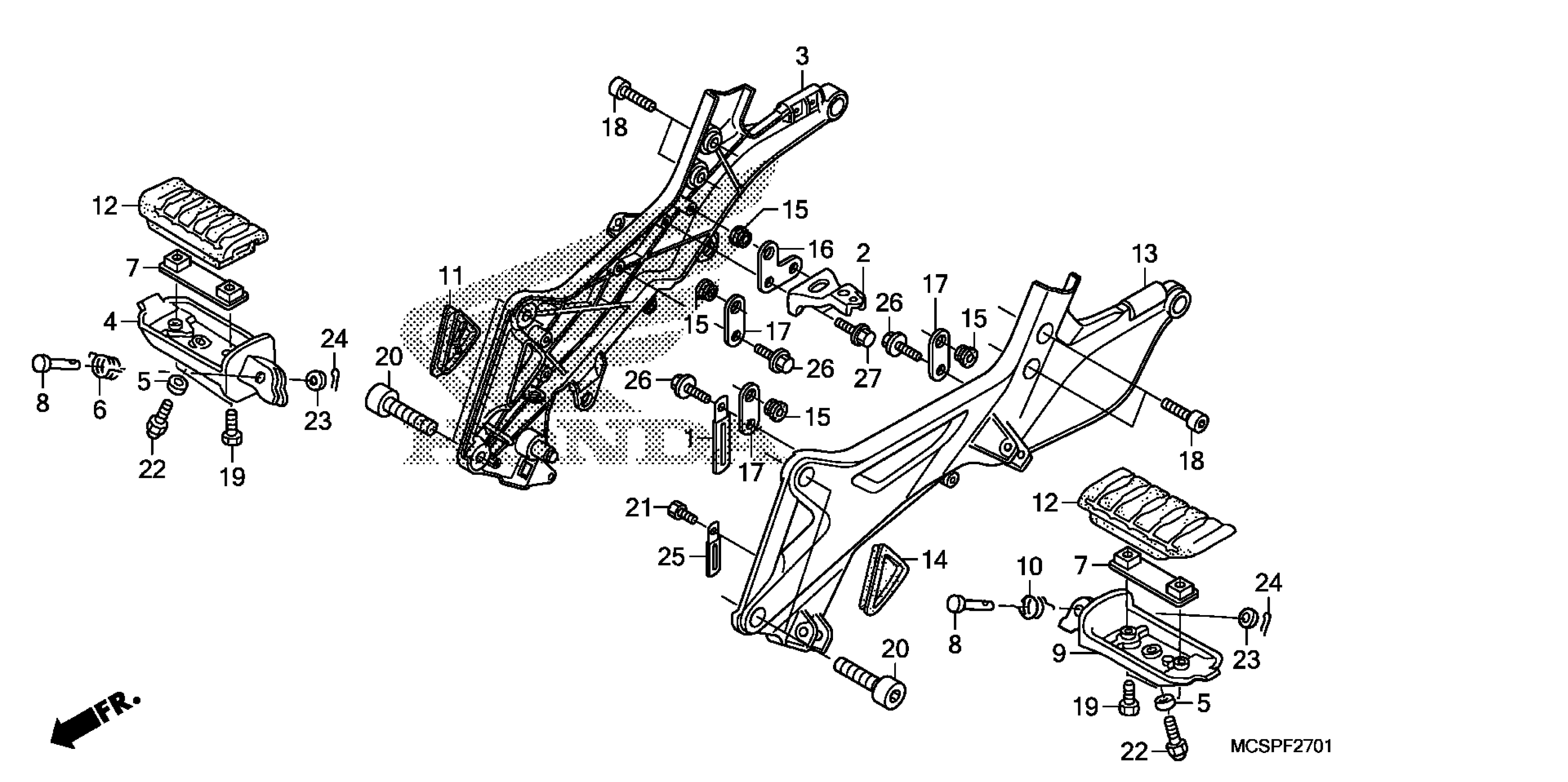

Honda ST1300PAA (11) ST1300PA, JPN, VIN# JH2SC517-BK700001 TO JH2SC517-BK799999 STEP (2) Diagram

#

Description
Price

1

CLIP, PULSER WIRE

32925-958-000

$2.76

2

STAY, BATTERY

50325-MCS-G00

$9.78

3

HOLDER, R. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)

50600-MCS-D90ZA

$378.13

4

ARM, R. STEP (COO) This part replaces 50612-MT3-000.

50612-MT3-305

$41.44

4

ARM, R. STEP (COO)

50612-MT3-305

$41.44

5

COLLAR (5.0)

50613-MT3-000

$2.75

6

SPRING, R. STEP RETURN

50617-MM5-000

$4.58

7

PLATE, STEP SETTING

50619-MT3-000

$11.03

8

PIN, STEP BAR

50639-ML0-010

$4.84

9

ARM, L. STEP (COO) This part replaces 50642-MT3-000.

50642-MT3-305

$41.44

9

ARM, L. STEP (COO)

50642-MT3-305

$41.44

10

SPRING, L. STEP RETURN

50644-MM5-000

$4.58

11

COVER, R. STEP

50653-MCS-A30

$13.63

12

RUBBER, STEP (COO) This part replaces 50661-MT3-000.

50661-MT3-305

$6.91

12

RUBBER, STEP (COO)

50661-MT3-305

$6.91

13

HOLDER, L. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)

50700-MCS-D90ZA

$359.96

14

COVER, L. STEP

50753-MCS-A30

$13.63

15

RUBBER, AIR DUCT COVER SETTING

64586-MBW-D20

$2.93

16

STAY A, COVER (LOWER)

83470-MCS-D90

$3.88

17

STAY B, COVER (LOWER)

83471-MCS-D90

$3.03

18

BOLT, SOCKET (10X23)

90105-KAF-000

$7.15

19

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.50

20

BOLT, SOCKET (12X34)

90127-MCS-G00

$4.29

21

BOLT, HEX. (4X10)

92101-04010-0A

$0.65

22

BOLT, CAP (8X16)

92501-08016-0A

$2.41

23

WASHER, PLAIN (8MM)

94101-08000

Unavailable

24

PIN, COTTER (2.0X15)

94201-20150

$1.04

25

CLIP (2X50)

94591-25000

$2.13

26

BOLT, FLANGE (6X14)

95701-06014-07

$1.34

26

BOLT, FLANGE (6X14) This part replaces 95801-06014-07.

95701-06014-07

$1.34

27

BOLT, FLANGE (6X16)

96300-06016-00

Unavailable
