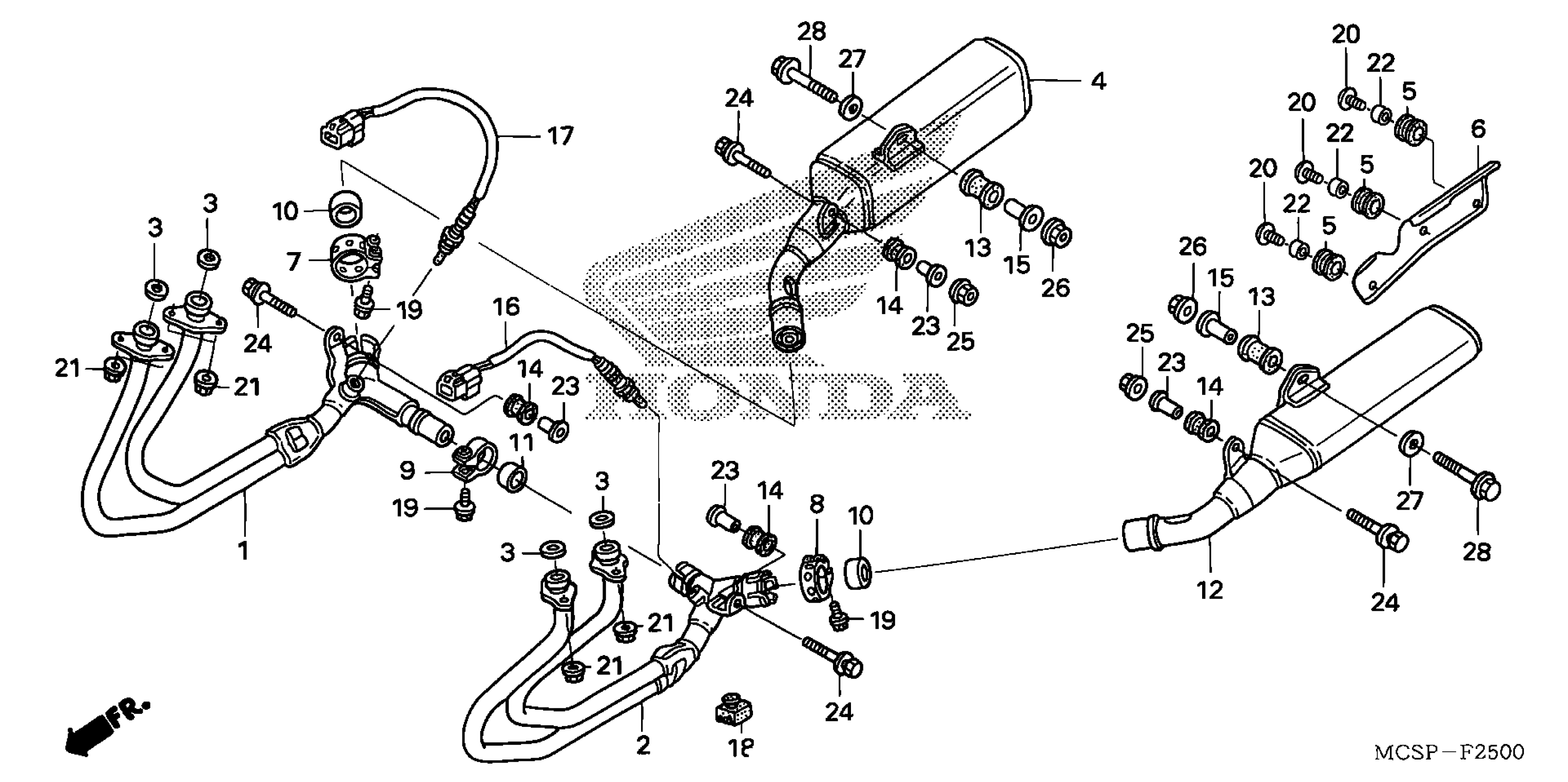

Honda ST1300PAA (11) ST1300PA, JPN, VIN# JH2SC517-BK700001 TO JH2SC517-BK799999 MUFFLER Diagram

#

Description
Price

1

PIPE, R. EX.

18150-MCS-G01

$365.06

2

PIPE, L. EX.

18170-MCS-G01

$365.06

3

GASKET, EX. PIPE

18291-MN4-920

$5.07

4

MUFFLER, R.

18310-MCS-D91

$1,138.41

5

RUBBER, PROTECTOR

18316-KFT-620

$2.29

6

COVER, MUFFLER

18345-MCS-760

$136.13

7

BAND, MUFFLER (L. SIDE ONLY)

18371-MAT-000

$28.69

8

BAND, MUFFLER (R. SIDE ONLY)

18372-MAT-000

$30.49

9

BAND, R. FR. MUFFLER (L. RR.) (L.)

18373-413-000

$35.97

10

GASKET, MUFFLER

18391-ML0-003

$26.89

11

GASKET, MUFFLER

18392-MK4-000

$12.54

12

MUFFLER, L.

18410-MCS-D91

$1,189.78

13

RUBBER, MUFFLER MOUNTING

18421-MCS-760

$9.13

14

RUBBER, EX. PIPE MOUNTING

18422-MCS-760

$11.13

15

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.87

16

SENSOR, OXYGEN (1-3)

36531-MCS-D91

$209.10

17

SENSOR, OXYGEN (2-4)

36532-MCS-D91

$209.10

18

RUBBER, STAND STOPPER

50505-MCS-760

$15.26

19

BOLT, FLANGE (8X35)

90103-KCM-620

$1.46

20

SCREW, PAN (6X14)

90118-MR1-000

$2.95

21

NUT, FLANGE (7MM)

90304-MM5-000

Unavailable

22

COLLAR, RR. SPLASH GUARD

90325-197-000

$3.15

23

COLLAR (6X14.8)

90501-438-000

$4.83

24

BOLT-WASHER (6X28)

93404-06028-00

$0.94

25

NUT, FLANGE (6MM)

94050-06000

$0.60

26

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

27

WASHER, PLAIN (8MM)

94103-08000

$0.60

28

BOLT, FLANGE (8X45)

96300-08045-00

$1.93
