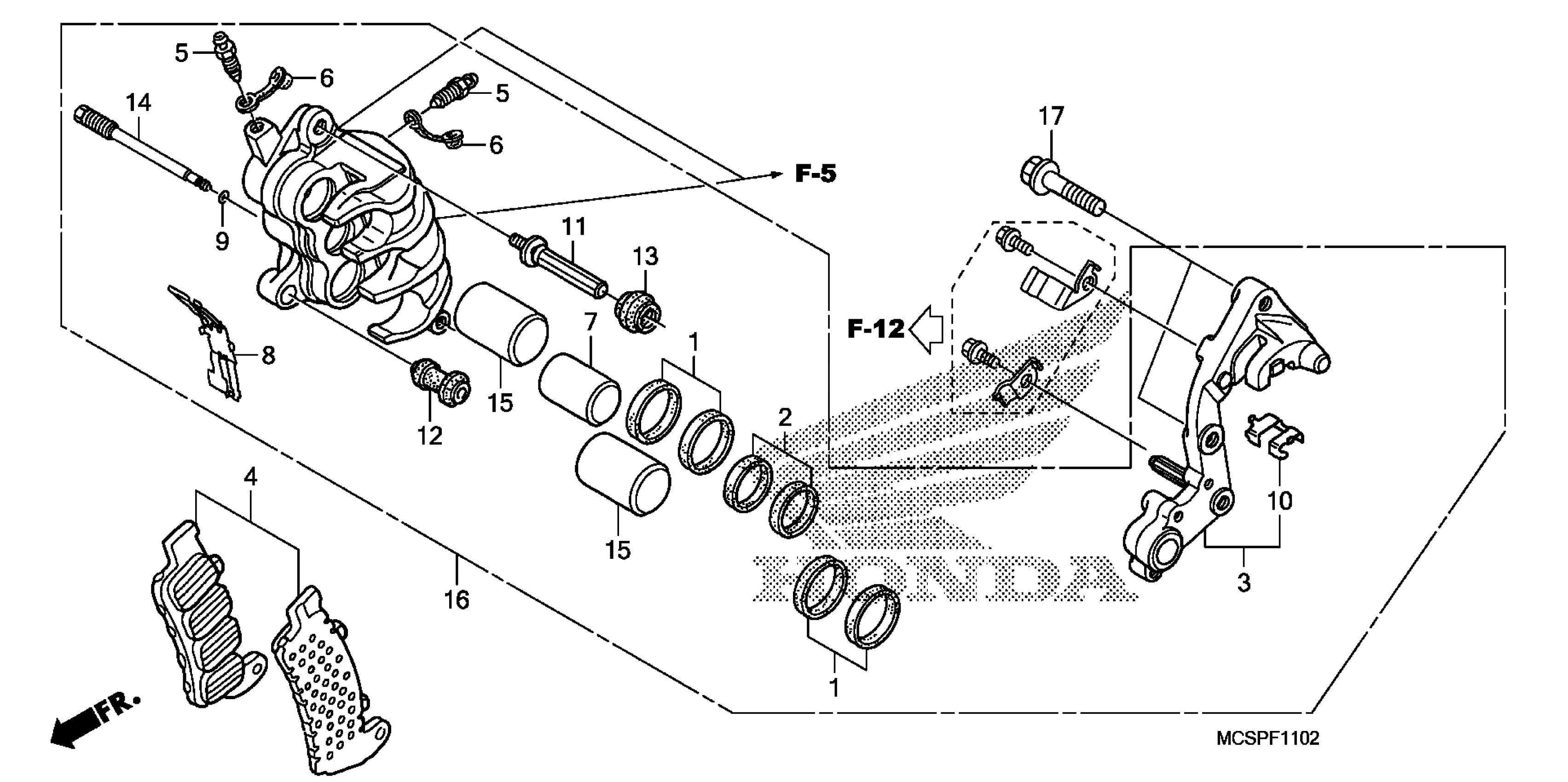

Honda ST1300PAA (09) ST1300PA, JPN, VIN# JH2SC517-9K600001 TO JH2SC517-9K600176 RIGHT FRONT BRAKE CALIPER(2) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

BRACKET SUB-ASSY., R. FR.

06453-MBT-D52

$143.00

PAD SET, FR. This part replaces 06455-MCS-R01.

06455-MCS-R02

$51.46

PAD SET, FR.

06455-MCS-R02

$51.46

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (22X27)

45107-MAJ-G41

$36.21

SPRING, PAD

45108-MBT-D52

$7.65

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PIN, HANGER

45215-MBT-D51

$6.38

PISTON B (27X35)

45218-MAJ-G41

$36.21

CALIPER SUB-ASSY., R. FR.

45250-MCS-R11

$539.37

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54
