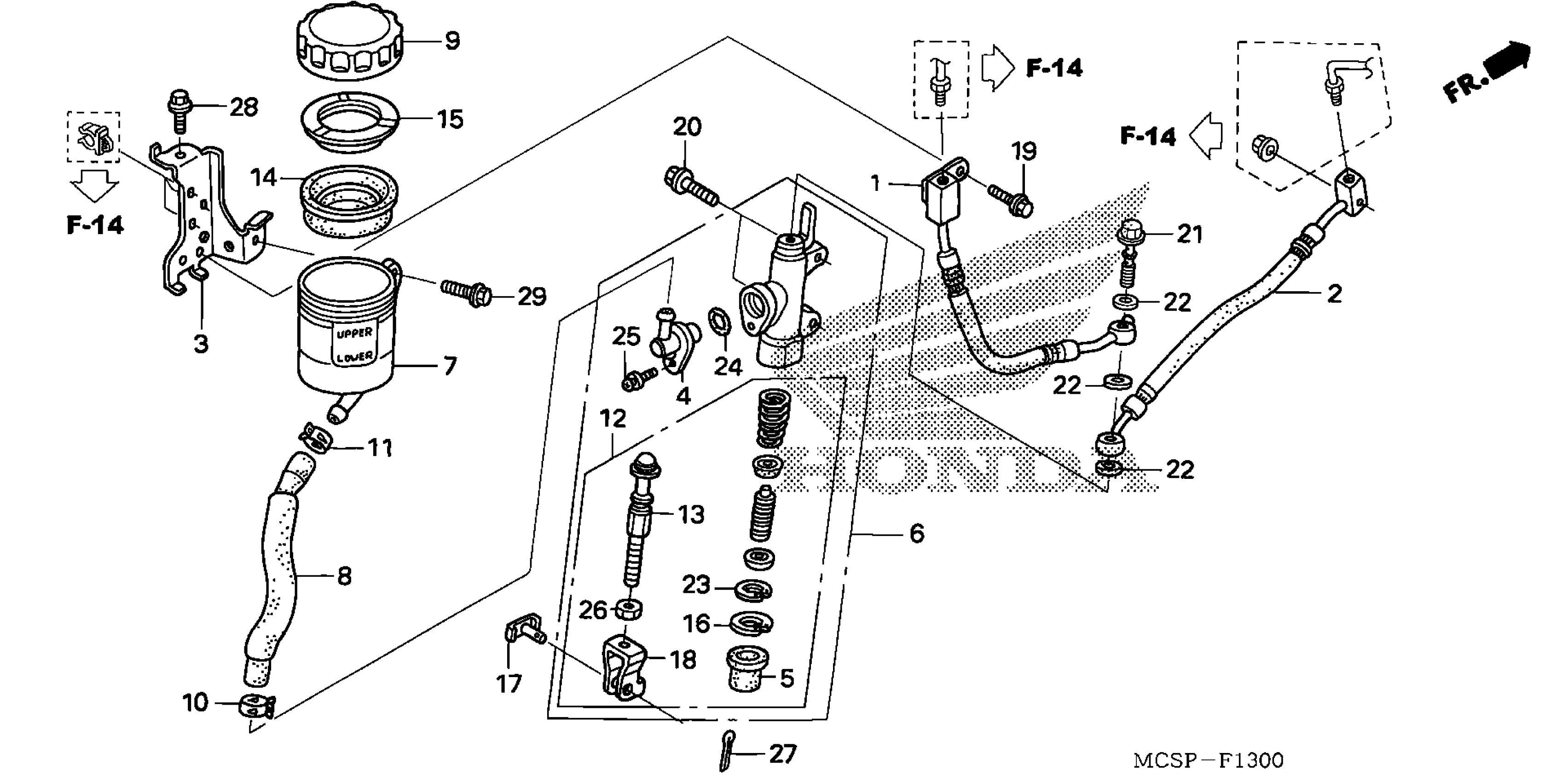

Honda ST1300PAA (09) ST1300PA, JPN, VIN# JH2SC517-9K600001 TO JH2SC517-9K600176 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE A, RR. BRAKE

43310-MCS-G02

$32.97

2

HOSE A, SUB-BRAKE

43320-MCS-G01

$42.97

3

STAY, OIL CAP

43415-MCS-G00

$8.36

4

CONNECTOR

43503-MR4-901

Unavailable

5

BOOT

43504-MB2-006

$10.04

6

MASTER CYLINDER SUB-ASSY., RR. (NOT AVAILABLE)

43510-MCS-R01

Unavailable

7

CUP, MASTER CYLINDER OIL

43511-MA6-006

$40.52

8

HOSE, RR. MASTER CYLINDER (CONTRLD PART:CONTACT TECHLINE OR USE TL CONNECT TO ORDER)

43512-MCS-R01

$30.74

9

CAP, OIL CUP

43513-MY1-006

$29.39

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

11

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

12

PISTON SET, RR. MASTER CYLINDER

43520-MCS-G02

$64.03

13

ROD, PUSH

43530-MCS-G01

$26.77

14

DIAPHRAGM

45520-300-000

$9.05

15

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

16

CIRCLIP

46182-MEL-D21

$1.93

17

PIN, BRAKE ROD

46503-MAL-000

$6.00

18

JOINT, BRAKE ROD

46504-MAL-601

$13.39

19

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.49

20

BOLT, FLANGE (6X25)

90131-124-000

$1.49

21

BOLT, OIL (10X34)

90145-MR8-014

$7.28

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

CIRCLIP, PISTON

90651-MBG-006

$2.85

24

O-RING (14.8X2.4)

91212-422-006

$2.56

25

SCREW-WASHER (4X12)

93893-04012-07

$1.49

25

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

26

NUT, HEX. (8MM)

94002-08000-0S

$1.49

26

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.49

27

PIN, COTTER (2.0X15)

94201-20150

$1.49

28

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

29

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
