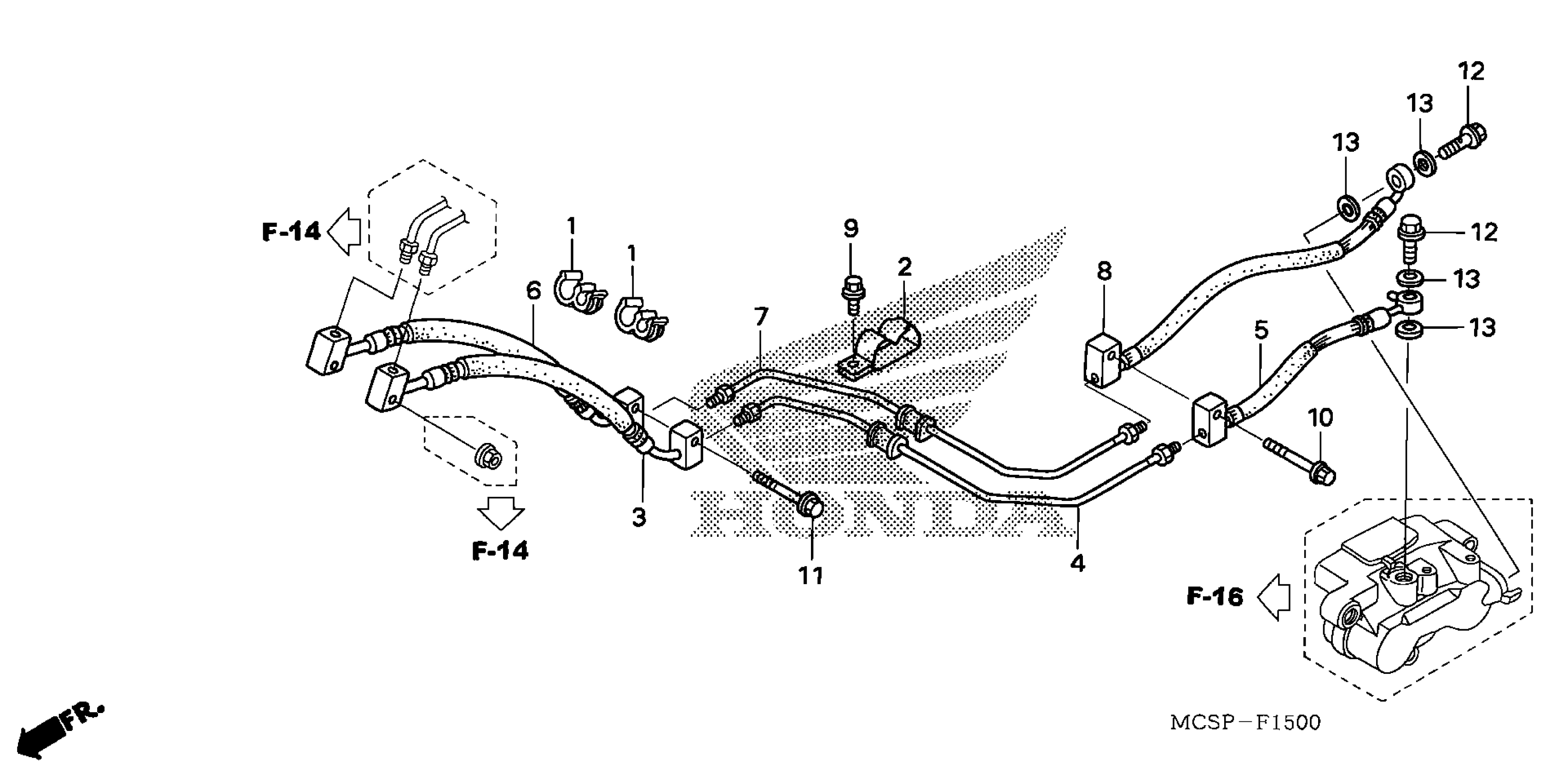

Honda ST1300PAA (09) ST1300PA, JPN, VIN# JH2SC517-9K600001 TO JH2SC517-9K600176 REAR BRAKE HOSE Diagram

CLAMP, PIPE

17368-KV7-671

$2.15

CLAMP, RR. BRAKE PIPE

43155-MCS-G00

$5.01

HOSE B, RR. BRAKE

43313-MCS-G01

$36.53

PIPE C, RR. BRAKE

43314-MCS-G00

$22.56

HOSE C, RR. BRAKE

43315-MCS-G01

$34.78

HOSE B, SECOND BRAKE MASTER CYLINDER

43335-MCS-G02

$38.19

PIPE E, SECOND BRAKE MASTER CYLINDER

43336-MCS-G00

$17.40

HOSE C, SECOND BRAKE MASTER CYLINDER

43337-MCS-G01

$34.78

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.19

BOLT, FLANGE (6X38)

90106-MCS-G00

$1.25

BOLT, FLANGE (6X42)

90111-MCS-G01

$0.93

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

WASHER, OIL BOLT

90545-300-000

$6.56
