Description

Price

1

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$9.79

2

RUBBER, DUST SEAL

24706-MK3-770

$4.28

3

ARM, GEARSHIFT

24710-MCS-G00

$35.76

4

PEDAL, GEARSHIFT (COO) This part replaces 24720-MCS-G00.

24720-MCS-305

$77.65

4

PEDAL, GEARSHIFT (COO)

24720-MCS-305

$77.65

5

COVER, DUST

24724-MBW-D21

$6.66

6

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

7

SWITCH ASSY., RR. STOP (TOYO) This part replaces 35350-MCS-G00.

35350-MCS-G01

Unavailable

7

SWITCH ASSY., RR. STOP (TOYO)

35350-MCS-G01

Unavailable

8

SPRING, STOP SWITCH

35357-KR3-670

$4.88

9

PEDAL, RR. BRAKE (COO) This part replaces 46500-MCS-G00.

46500-MCS-305

$86.47

9

PEDAL, RR. BRAKE (COO)

46500-MCS-305

$86.47

10

RUBBER, RR. BRAKE GUARD

46506-MCS-G00

$12.84

11

SPRING, BRAKE PEDAL

46511-MBW-000

$5.28

12

COVER, RR. STOP SWITCH

50618-MCS-G01

$21.24

13

BOLT, TIE ROD

90065-MCS-G00

$2.87

14

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$0.71

15

NUT, FLANGE (8MM)

90301-GCT-J50

$0.87

16

WASHER (8MM) (Honda Code 0285189)

90514-921-000

$1.00

17

WASHER (15.2X25)

90557-230-000

$2.21

18

NUT, HEX. (6MM)

94002-06020-0S

$1.01

19

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63

20

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.78

21

BOLT, FLANGE (8X110)

95701-08110-08

$5.04

22

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

23

CLIP, SWITCH COVER

90601-KAF-003

$2.47

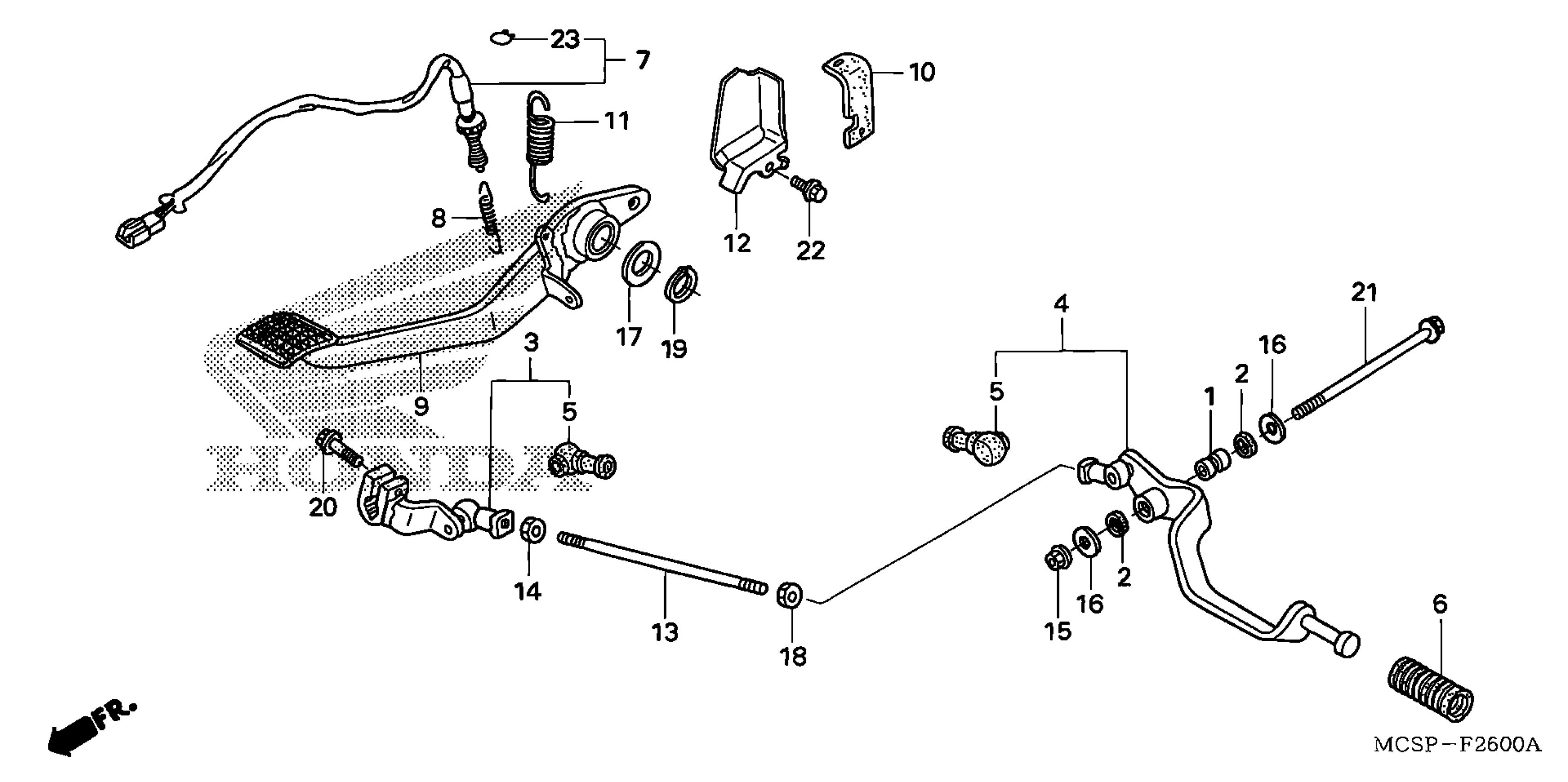

Honda ST1300PAA (09) ST1300PA, JPN, VIN# JH2SC517-9K600001 TO JH2SC517-9K600176 PEDAL Diagram
