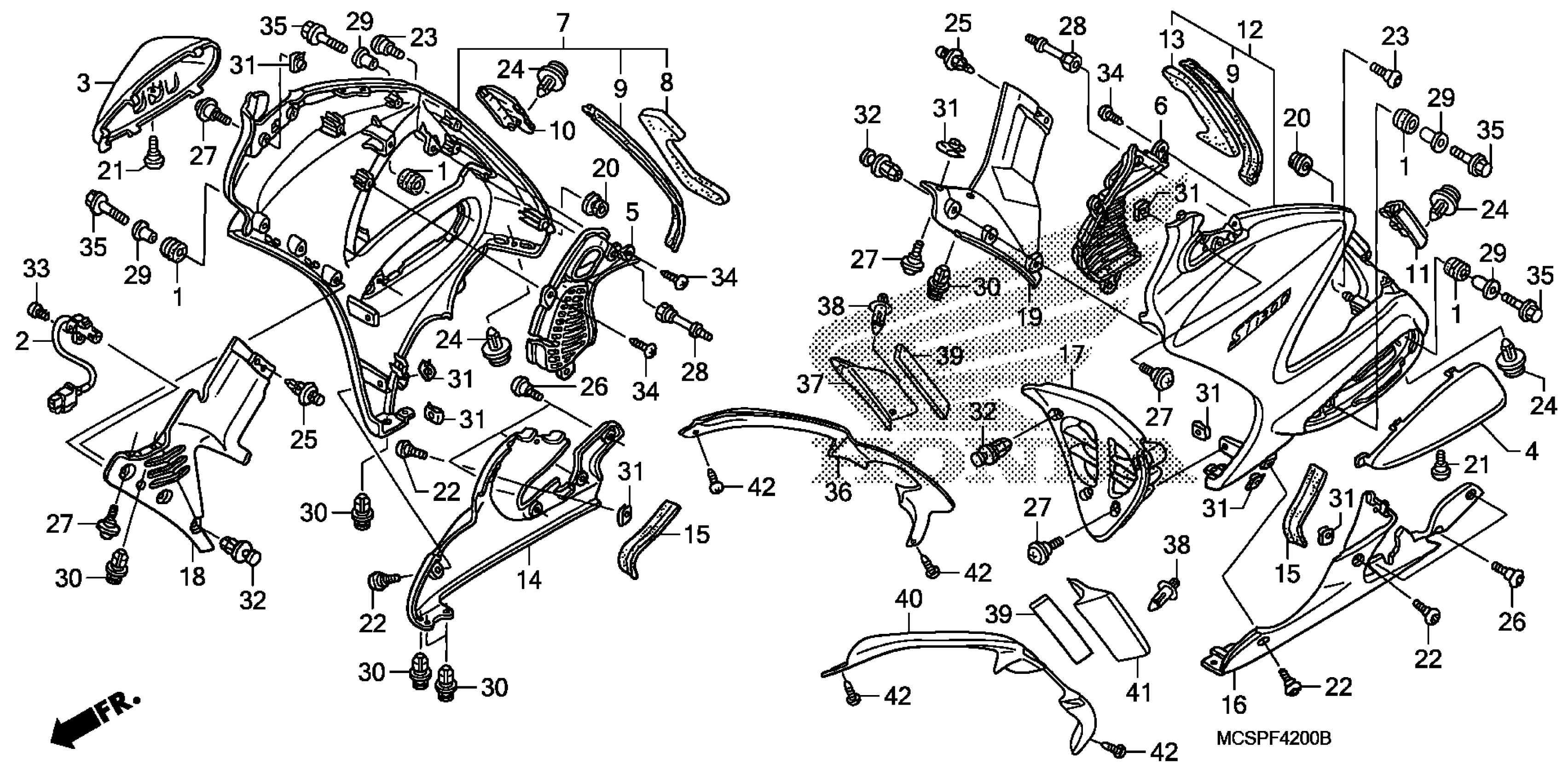

Honda ST1300PAA (09) ST1300PA, JPN, VIN# JH2SC517-9K600001 TO JH2SC517-9K600176 LOWER COWL Diagram

#

Description
Price

1

RUBBER, CUSHION

17622-GB7-900

$4.58

2

SENSOR, OPEN AIR TEMPERATURE

37890-MCS-G01

$53.19

3

COVER, R. ENGINE GUARD

64260-MCS-G01

$21.71

4

COVER, L. ENGINE GUARD

64265-MCS-G01

$21.71

5

LOUVER, R. COWL SIDE

64285-MCS-G00

$26.84

6

LOUVER, L. COWL SIDE

64295-MCS-G00

$26.84

7

COWL SET, R. MIDDLE (TYPE1) (WL)

64300-MCS-A30ZA

$706.96

8

MAT, R. MIDDLE COWL

64321-MCS-G00

$20.91

9

SEAL, MIDDLE COWL

64322-MCS-G00

$10.96

10

LID, R. MIDDLE COWL *NH138* (SHASTA WHITE)

64323-MCS-G00ZD

$32.03

11

LID, L. MIDDLE COWL *NH138* (SHASTA WHITE)

64328-MCS-G00ZD

$32.03

12

COWL SET, L. MIDDLE (TYPE1) (WL)

64350-MCS-A30ZA

$706.96

13

MAT, L. MIDDLE COWL

64371-MCS-G00

$20.91

14

COWL, R. (LOWER)

64400-MCS-760

$336.62

15

SEAL, COWL (LOWER)

64412-MCS-G00

$5.24

16

COWL, L. (LOWER)

64450-MCS-760

$336.62

17

COWL (LOWER) (INNER)

64510-MCS-G00

$58.26

18

COWL, R. (INNER)

64592-MCS-G00

$36.37

19

COWL, L. (INNER)

64597-MCS-G00

$36.37

20

GROMMET, SIDE COVER (PER MS TODA EMAIL 2/26/01)

83601-MN5-000

$2.80

21

SCREW, PAN (6X11)

90106-KY2-701

$4.05

22

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.47

23

SCREW, PAN (6X14)

90113-MM5-000

$2.95

24

CLIP, BODY

90683-MBW-003

$1.93

25

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

26

SCREW, PAN (6X14)

90118-MR1-000

$2.95

27

SCREW, PAN (5X13)

90133-MCS-G00

$1.00

28

BOLT, MIDDLE COWL

90135-MCS-G01

$10.87

29

WASHER, FR. COVER SETTING

90501-124-000

$3.24

30

CLIP, SPLASH SHIELD

90657-SB0-003

$5.04

31

NUT, CLIP (5MM)

90677-KAN-961

$3.89

32

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.04

33

SCREW, TAPPING (4X10)

93903-24280

$1.25

34

SCREW, TAPPING (4X12)

93903-24380

Unavailable

35

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

36

DEFLECTOR A, R. SIDE This part replaces 64381-MCS-A31.

08P73-MCS-80011

Unavailable

37

DEFLECTOR B, R. SIDE

08P73-MCS-80013

$59.95

37

DEFLECTOR B, R. SIDE This part replaces 64382-MCS-A31.

08P73-MCS-80013

$59.95

38

RIVET, PUSH

08P73-MCS-80015

$1.41

38

RIVET, PUSH This part replaces 64383-MCS-A31.

08P73-MCS-80015

$1.41

38

RIVET, PUSH This part replaces 64383-MCS-A32.

08P73-MCS-80015

$1.41

39

TAPE, VELCRO (MALE)

08P73-MCS-80016

Unavailable

39

TAPE, VELCRO (MALE) This part replaces 64384-MCS-A31.

08P73-MCS-80016

Unavailable

40

DEFLECTOR A, L. SIDE

08P73-MCS-80012

Unavailable

40

DEFLECTOR A, L. SIDE This part replaces 64391-MCS-A31.

08P73-MCS-80012

Unavailable

41

DEFLECTOR B, L. SIDE

08P73-MCS-80014

$59.95

41

DEFLECTOR B, L. SIDE This part replaces 64392-MCS-A31.

08P73-MCS-80014

$59.95

42

SCREW, TAPPING (4X10)

93903-44280

$0.84
