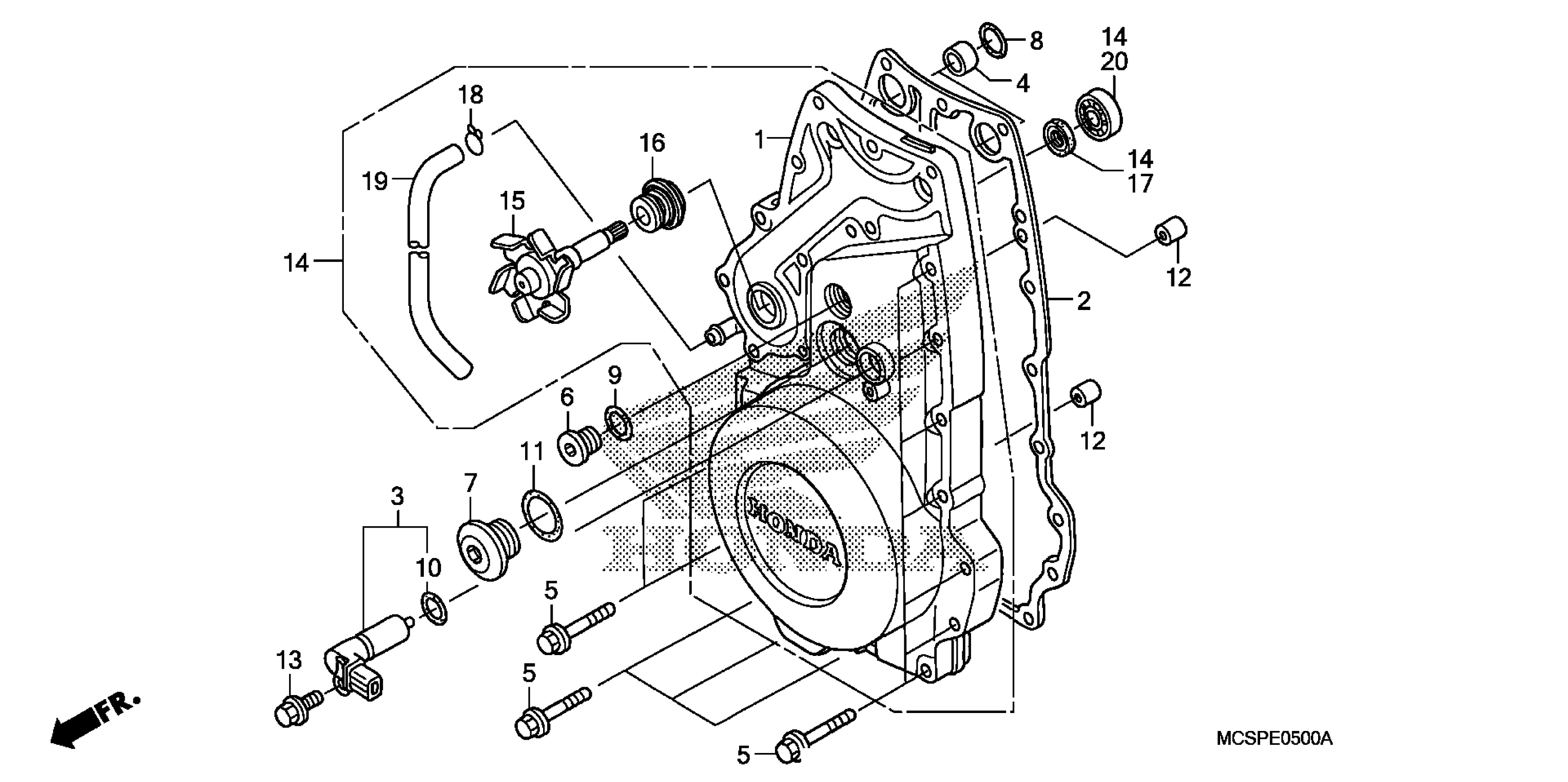

Honda ST1300PAA (09) ST1300PA, JPN, VIN# JH2SC517-9K600001 TO JH2SC517-9K600176 FRONT CRANKCASE COVER Diagram

GASKET, FR. COVER This part replaces 11394-MCS-000.

11394-MCS-020

$20.96

GASKET, FR. COVER This part replaces 11394-MCS-010.

11394-MCS-020

$20.96

GENERATOR ASSY., PULSE

30300-MCS-003

$78.13

COLLAR, FR. FORK (OUTER)

51486-087-711

$5.71

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

CAP (14MM)

90084-KY2-000

$15.97

CAP (30MM)

90087-KT7-000

$19.74

O-RING (19.9X3.1) This part replaces 91301-MCS-A10.

91301-MCS-A11

$3.45

O-RING (19.9X3.1)

91301-MCS-A11

$3.45

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (16X2.1) (NOK) (Honda Code 3301793)

91309-PX4-003

$2.93

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

COVER, FR. CRANKCASE

11340-MCS-D80

$474.64

IMPELLER, WATER PUMP

19210-MCS-000

$57.60

SEAL, MECHANICAL

19217-MAL-300

$53.03

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

OIL SEAL (12X22X5)

91201-965-000

$4.06

CLIP, TUBE (B10)

95002-02100

$1.90

BULK HOSE, VACUUM (5.5X8000) (5.3X285)

95005-55008-10M

Unavailable

BEARING, RADIAL BALL (6200)

96100-62003-00

$12.72
