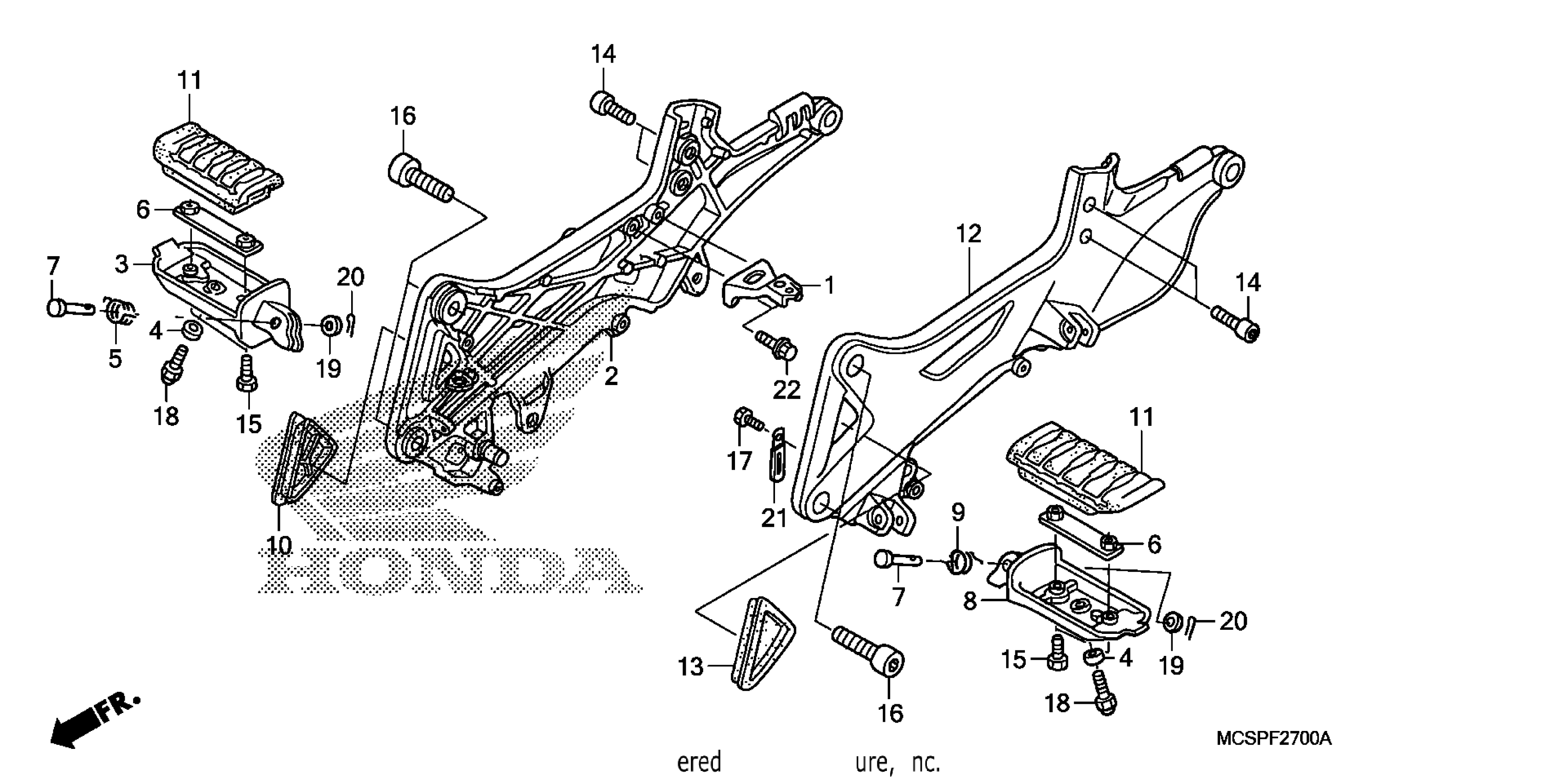

Honda ST1300PAA (07) ST1300PA, JPN, VIN# JH2SC517-7M500001 TO JH2SC517-7M599999 STEP (1) Diagram

#

Description
Price

1

STAY, BATTERY

50325-MCS-G00

$10.59

2

HOLDER, R. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)

50600-MCS-D90ZA

$409.25

2

HOLDER, R. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC) This part replaces 50600-MCS-G01ZA.

50600-MCS-D90ZA

$409.25

3

ARM, R. STEP (COO) This part replaces 50612-MT3-000.

50612-MT3-305

$44.85

3

ARM, R. STEP (COO)

50612-MT3-305

$44.85

4

COLLAR (5.0)

50613-MT3-000

$2.98

5

SPRING, R. STEP RETURN

50617-MM5-000

$4.78

6

PLATE, STEP SETTING

50619-MT3-000

$11.93

7

PIN, STEP BAR

50639-ML0-010

$5.22

8

ARM, L. STEP (COO) This part replaces 50642-MT3-000.

50642-MT3-305

$44.85

8

ARM, L. STEP (COO)

50642-MT3-305

$44.85

9

SPRING, L. STEP RETURN

50644-MM5-000

$4.78

10

COVER, R. STEP

50653-MCS-A30

$14.75

11

RUBBER, STEP (COO) This part replaces 50661-MT3-000.

50661-MT3-305

$6.81

11

RUBBER, STEP (COO)

50661-MT3-305

$6.81

12

HOLDER, L. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC)

50700-MCS-D90ZA

$389.61

12

HOLDER, L. MAIN STEP *NH146M* (ACCURATE SILVER METALLIC) This part replaces 50700-MCS-G00ZA.

50700-MCS-D90ZA

$389.61

13

COVER, L. STEP

50753-MCS-A30

$14.75

14

BOLT, SOCKET (10X23)

90105-KAF-000

$7.74

15

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.70

16

BOLT, SOCKET (12X34)

90127-MCS-G00

$4.66

17

BOLT, HEX. (4X10)

92101-04010-0A

$1.49

18

BOLT, CAP (8X16)

92501-08016-0A

$2.61

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

PIN, COTTER (2.0X15)

94201-20150

$1.49

21

CLIP (2X50)

94591-25000

$2.31

22

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
