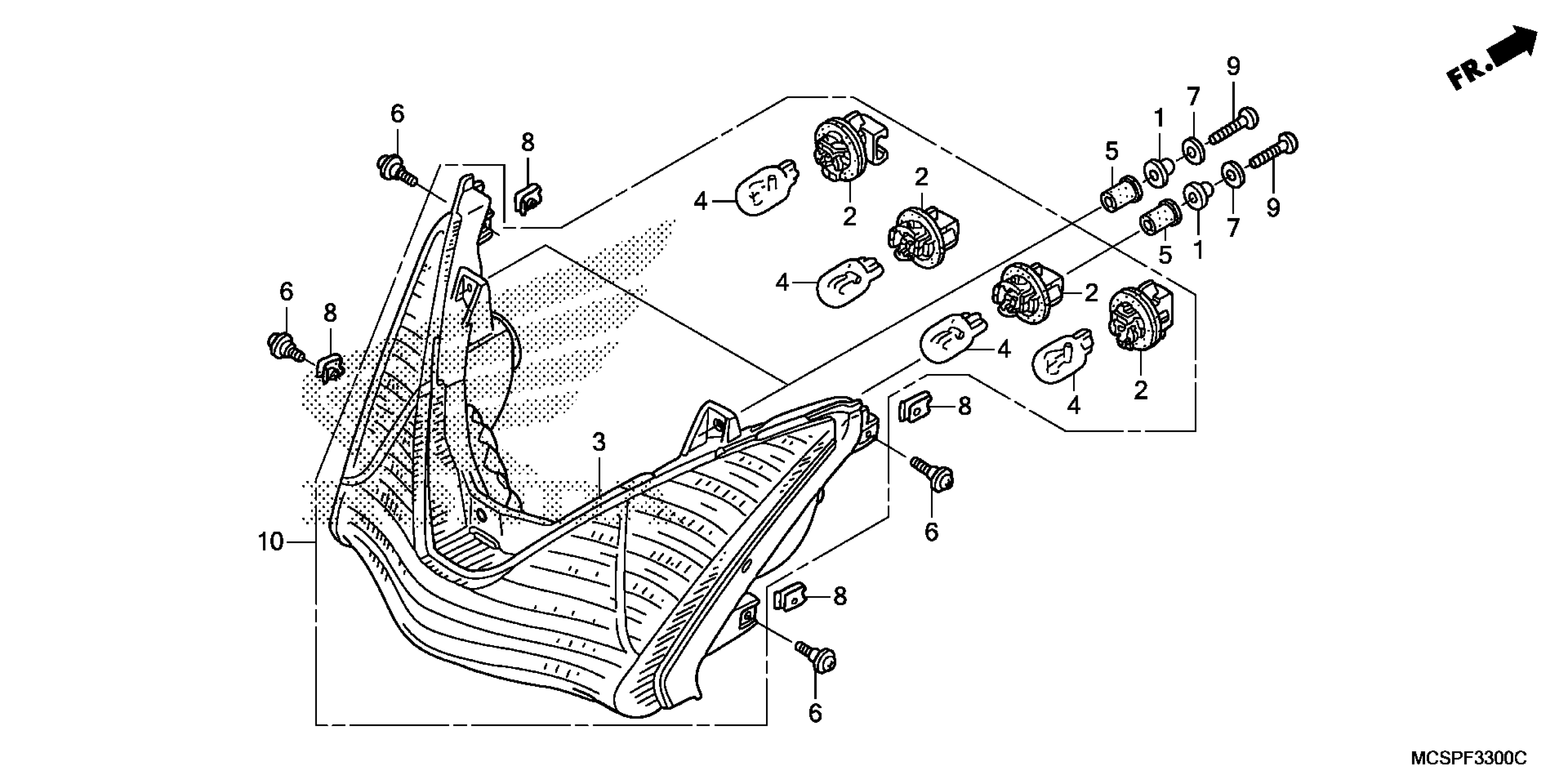

Honda ST1300PAA (07) ST1300PA, JPN, VIN# JH2SC517-7M500001 TO JH2SC517-7M599999 REAR COMBINATION LIGHT Diagram

#

Description

Price

1

COLLAR A, TAILLIGHT

33712-GC2-000

$3.04

2

SOCKET

33720-GZ9-003

$12.97

3

LIGHT UNIT, RR. COMBINATION (COO) This part replaces 33720-MCS-L01.

33720-MCS-305

$292.66

3

LIGHT UNIT, RR. COMBINATION (COO)

33720-MCS-305

$292.66

4

BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)

34906-MBB-611

$4.01

5

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

6

SCREW, PAN (5X13)

90133-MCS-G00

$1.49

7

WASHER, STOPPER

90483-041-000

$1.92

8

NUT, CLIP (5MM)

90677-KAN-961

$4.07

9

SCREW, PAN (5X20)

93500-05020-0A

$1.49

10

LIGHT ASSY., RR. COMBINATION (12V 21/5W) (COO) This part replaces 33700-MCS-L01.

33700-MCS-305

$340.11

10

LIGHT ASSY., RR. COMBINATION (12V 21/5W) (COO)

33700-MCS-305

$340.11
