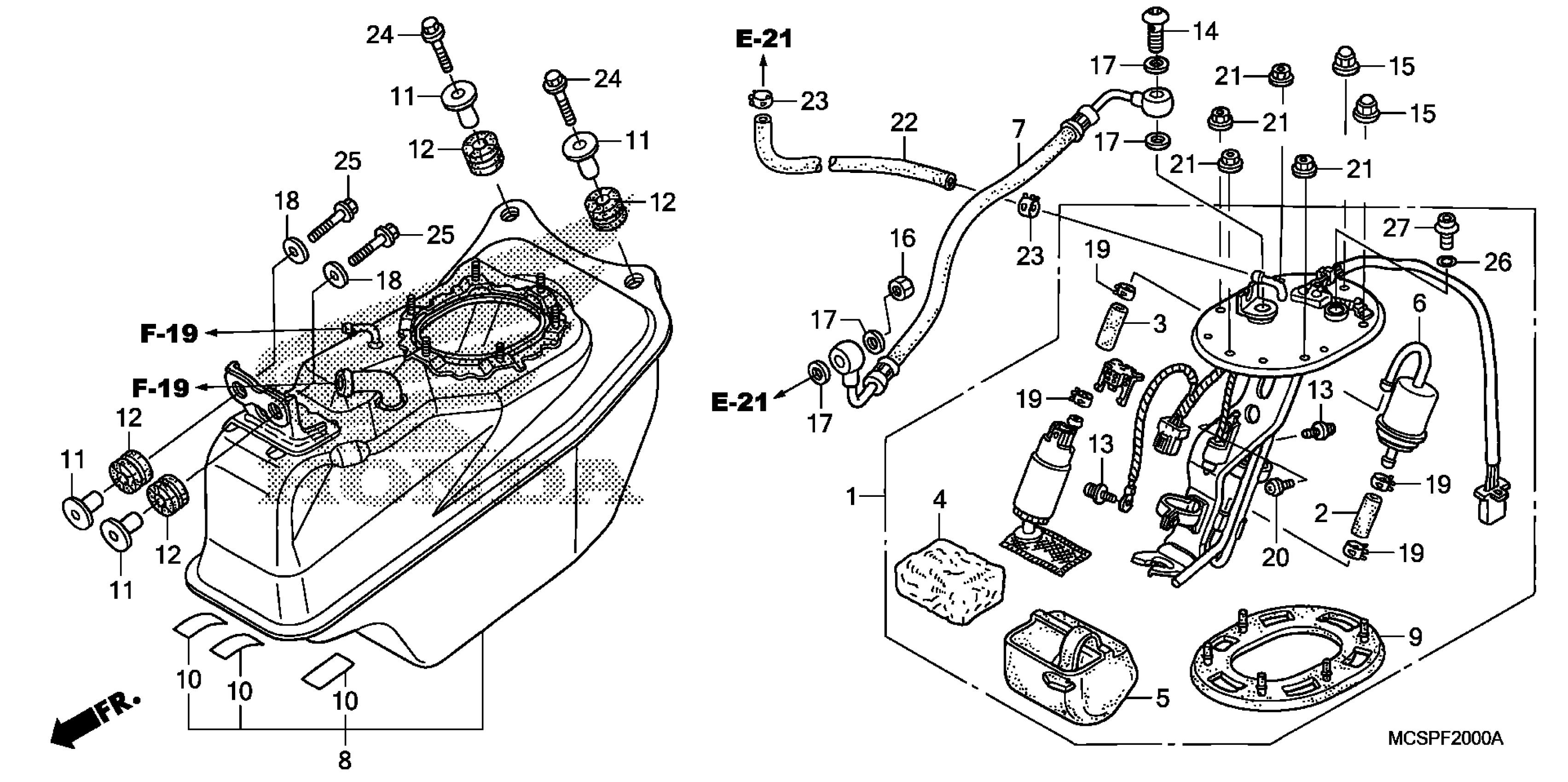

Honda ST1300PAA (07) ST1300PA, JPN, VIN# JH2SC517-7M500001 TO JH2SC517-7M599999 FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MSDS) This part replaces 16700-MCS-G01.

16700-MCS-G02

$652.37

1

PUMP ASSY., FUEL (MSDS)

16700-MCS-G02

$652.37

2

HOSE A, PUMP

16711-MCS-G00

$3.31

3

HOSE B, PUMP

16712-MAT-D01

$3.56

4

FILTER, FUEL RETURN

16714-MBG-000

$8.42

5

RUBBER, FUEL PUMP UNIT

16716-MCS-G01

$12.88

6

FILTER, FUEL

16900-MBG-013

$63.89

7

HOSE, FUEL FEED

17528-MCS-G01

$68.43

8

TANK, FUEL SUB

17550-MCS-A30

Unavailable

9

GASKET, BASE

17574-MN5-000

$9.31

10

FILM, FRAME PIPE (UPPER) SCREW-WASHER (5X25)

50159-KR3-300

$3.85

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

12

RUBBER, RR. FENDER MOUNTING

80106-382-770

$4.08

13

SCREW-WASHER, LOCK (4X8)

90105-MBG-000

$1.40

14

BOLT, BANJO (12MM)

90108-MBG-000

$9.60

15

NUT, FLANGE CAP (6MM)

90201-MEJ-770

$1.66

16

NUT A, SEALING (12MM)

90201-PD1-000

$4.88

17

WASHER, SEALING (12MM)

90428-PD6-003

$4.96

18

WASHER (18MM) This part replaces 90482-567-000.

90581-831-650

$1.72

18

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.72

18

WASHER (18MM)

90581-831-650

$1.72

19

CLAMP, TUBE (D12) (FRAME NO.)

91405-PD1-004

$8.27

20

SCREW-WASHER (5X12)

93893-05012-08

$1.32

21

NUT, FLANGE (6MM)

94050-06080

$0.60

22

HOSE, FUEL RETURN

17525-MCS-G02

$24.79

23

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.66

24

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.24

25

BOLT, FLANGE (6X32)

96001-06032-07

$1.43

26

O-RING (1.9X9.3)

16075-GHB-820

$2.24

27

BOLT, RR. SPINDLE

90178-SR3-A00

$3.91
