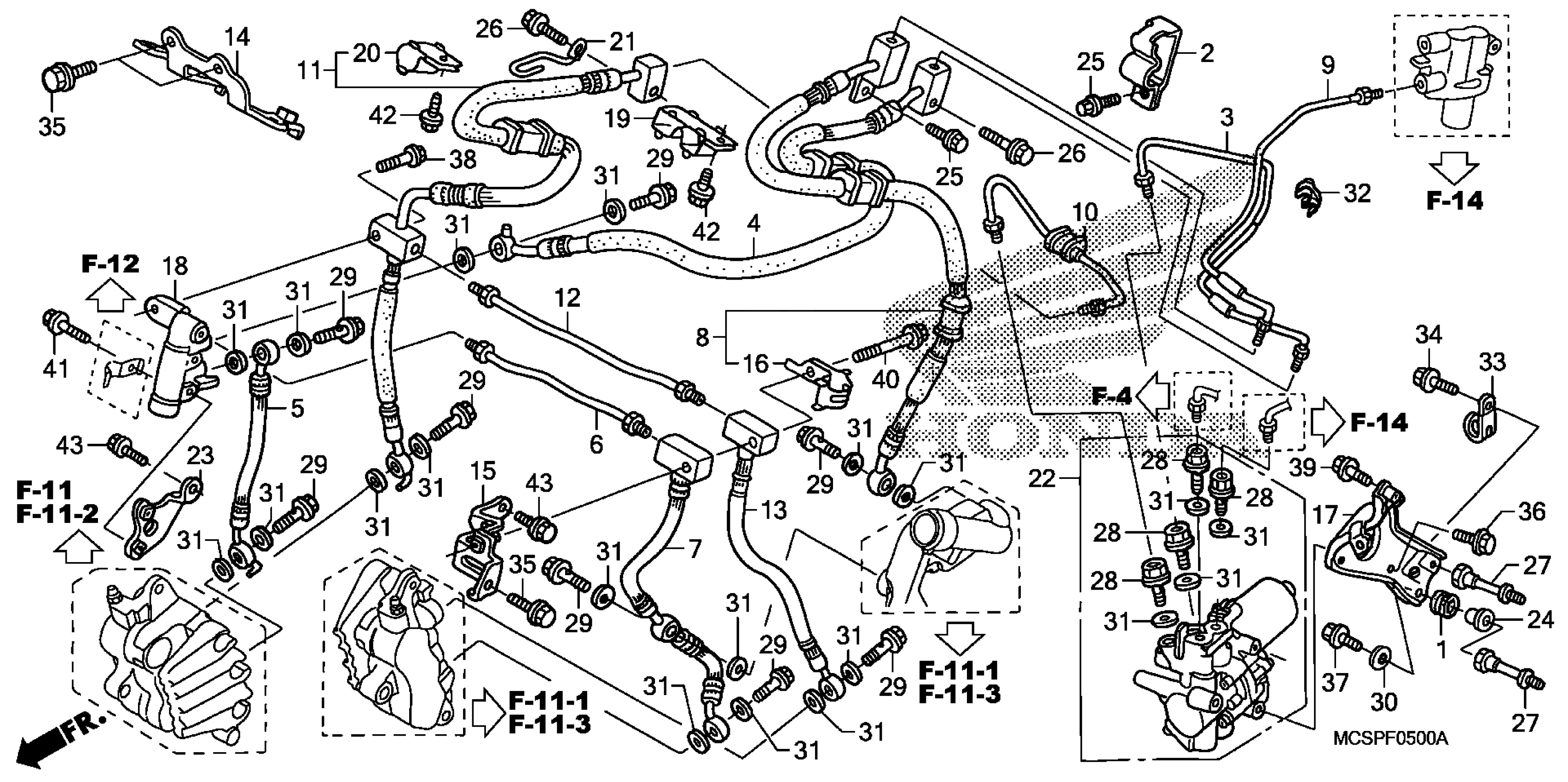

Honda ST1300PAA (07) ST1300PA, JPN, VIN# JH2SC517-7M500001 TO JH2SC517-7M599999 FRONT BRAKE HOSE Diagram

#

Description
Price

1

RUBBER, CUSHION

17622-GB7-900

$4.78

2

CLAMP, RR. BRAKE PIPE

43155-MCS-G00

$5.43

3

PIPE B, SUB-BRAKE

43322-MCS-G02

$26.77

4

HOSE B, SUB-BRAKE

43323-MCS-G01

$49.00

5

HOSE C, SUB-BRAKE

43324-MCS-G02

Unavailable

6

PIPE C, SUB-BRAKE

43325-MCS-G00

$7.78

7

HOSE D, SUB-BRAKE

43326-MCS-G01

Unavailable

8

HOSE A, SECOND BRAKE MASTER CYLINDER

43330-MCS-G02

$73.89

9

PIPE A, SECOND BRAKE MASTER CYLINDER

43331-MCS-G02

$24.25

10

PIPE B, FR. BRAKE

45127-MCS-G02

$15.11

11

HOSE B, FR. BRAKE

45128-MCS-G02

Unavailable

12

PIPE C, FR. BRAKE

45129-MCS-G00

$8.78

13

HOSE C, FR. BRAKE

45131-MCS-G01

Unavailable

14

STAY A, FR. BRAKE HOSE

45156-MCS-760

$13.43

15

STAY B, FR. BRAKE HOSE

45157-MCS-G00

$9.67

16

CLAMP, FR. BRAKE HOSE

45158-MCS-G00

$6.02

17

BRACKET, FR. ABS MODULATOR

45165-MCS-G00

$37.75

18

VALVE ASSY., DELAY

46300-MCS-G02

$181.72

19

CLAMP, BRAKE HOSE

52115-MAT-000

$6.28

20

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

21

GUIDE, THROTTLE CABLE

53121-MCS-G00

$7.62

22

MODULATOR ASSY., ABS

57100-MCA-971

$1,450.21

23

STAY, FR. FENDER

61103-MCS-G00

$10.34

24

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

25

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.49

26

BOLT, FLANGE (6X28)

90114-MCS-G00

$1.49

27

BOLT, MIDDLE COWL

90135-MCS-G01

$11.75

28

BOLT, OIL (10X10.6)

90145-MCA-971

$6.43

29

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

30

WASHER, PLAIN (6MM)

90525-428-900

$1.92

31

WASHER, OIL BOLT

90545-300-000

$3.99

32

CLAMP, BRAKE PIPE

90661-MCA-003

$2.15

33

CLIP, CORD

91405-943-000

$3.30

34

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

35

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

36

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

37

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

38

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

39

BOLT, FLANGE (6X40)

95701-06040-07

$1.80

40

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06

41

BOLT, FLANGE (6X38) (SOURCE: VINTAGE PARTS INC.)

95801-06038-07

$3.80

42

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

43

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
