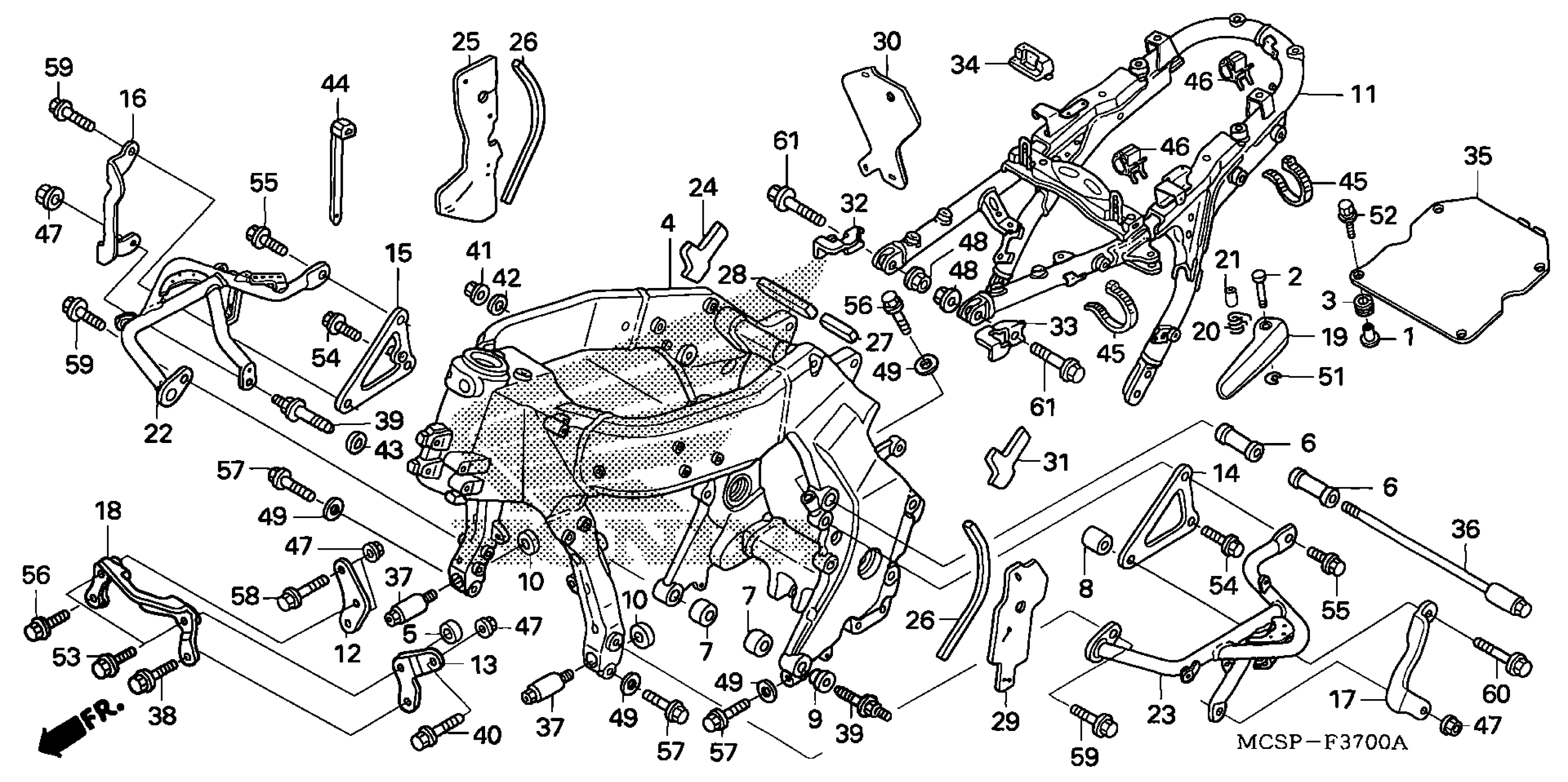

Honda ST1300PAA (07) ST1300PA, JPN, VIN# JH2SC517-7M500001 TO JH2SC517-7M599999 FRAME Diagram

#

Description
Price

1

COLLAR, THERMOSTAT STAY

19343-MAL-600

$2.46

2

PIN, KICK STARTER

28321-427-770

$7.27

3

GROMMET, HORN STAY

38119-MM8-000

$4.74

4

FRAME *NH146M* (ACCURATE SILVER METALLIC)

50100-MCS-L02ZA

$2,747.74

5

COLLAR, FR. ENGINE HANGER

50190-MCS-G00

$5.02

6

COLLAR, RR. ENGINE HANGER (UPPER)

50191-MCS-G03

$10.79

7

COLLAR, RR. ENGINE HANGER (LOWER)

50192-MCS-760

$36.11

8

COLLAR, L. RR. ENGINE HANGER CENTER

50193-MCS-G00

$3.07

9

COLLAR, L. RR. ENGINE MOUNT (LOWER)

50195-MCS-000

$8.69

10

COLLAR, FR. ENGINE HANGER (LOWER)

50216-MCS-G02

$4.26

11

RAIL, SEAT

50240-MCS-A30

$522.95

12

PLATE, R. FR. ENGINE HANGER

50310-MCS-G00

$9.41

13

PLATE, L. FR. ENGINE HANGER

50311-MCS-G00

$14.28

14

PLATE, RR. ENGINE HANGER

50312-MCS-G00

$19.33

15

PLATE, RR. ENGINE HANGER

50312-MCS-L00

$23.95

16

PLATE, R. STIFFENER

50315-MCS-A30

$27.79

17

PLATE, L. STIFFENER

50316-MCS-760

$11.28

18

PLATE, CROSS HANGER

50318-MCS-760

$39.46

19

GRIP, MAIN STAND *NH105* (MAT BLACK)

50400-MT3-000ZE

$49.30

20

SPRING, R. STEP RETURN

50617-MM5-000

$4.78

21

COLLAR, HANDLE SETTING

53103-GN5-900

$6.00

22

GUARD, R. ENGINE

64206-MCS-A30

$155.70

23

GUARD, L. ENGINE

64216-MCS-A30

$150.18

24

MAT, R. FRAME

64324-MCS-G00

$14.59

25

RUBBER B, R. HEAT

64362-MCS-G00

$23.10

26

MAT A, HEAT GUARD

64363-MCS-G00

$4.07

27

MAT B, HEAT GUARD

64364-MCS-G00

$1.87

28

MAT C, HEAT GUARD

64365-MCS-G00

$3.07

29

RUBBER, L. HEAT

64366-MCS-A30

Unavailable

30

RUBBER C, R. HEAT

64367-MCS-G00

$27.97

31

MAT, L. FRAME

64374-MCS-G00

$14.59

32

PLATE, R. SEAT STOPPER

77116-MCS-G00

$4.84

33

PLATE, L. SEAT STOPPER

77117-MCS-G00

$4.84

34

RUBBER, SEAT SETTING

77205-MCS-G00

$6.48

35

STAY, AMPLIFIER

80150-MCS-A30

$34.46

36

BOLT, ENGINE MOUNTING (10X328)

90102-MCS-G00

$50.49

37

BOLT, FLANGE (12X36)

90112-MCS-G04

$29.59

38

BOLT, SPECIAL FLANGE (8X30)

90131-MCS-760

$5.33

39

BOLT, FLANGE (12X67)

90134-MCS-G01

$13.38

40

BOLT, FLANGE (8X47)

90150-GN1-000

$5.66

41

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

42

WASHER (10.5X27)

90405-752-830

$9.04

42

WASHER (10.5X27X4)

90405-758-L00

$9.04

43

WASHER, PLAIN (12MM)

90440-GT4-970

$2.48

44

BAND, WIRE HARNESS (Honda Code 1746650)

90650-MA6-720

$4.15

45

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.73

46

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

47

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

48

NUT, FLANGE (10MM)

94050-10000

$1.59

49

WASHER, PLAIN (8MM)

94102-08000

$1.49

51

E-RING (6MM)

94540-06018

$2.75

52

BOLT-WASHER (6X25)

93404-06025-00

$1.49

53

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

54

BOLT, FLANGE (8X20) BOLT, FLANGE (8X12)

96300-08020-00

$1.57

55

BOLT, FLANGE (8X25)

96300-08025-00

$1.62

56

BOLT, FLANGE (8X35)

96300-08035-00

$1.95

57

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

57

BOLT, FLANGE (8X40) This part replaces 96300-08040-08.

95701-08040-08

$2.28

58

BOLT, FLANGE (8X50)

96300-08050-00

$2.25

59

BOLT, FLANGE (10X25)

96300-10025-00

$2.39

60

BOLT, FLANGE (10X50)

96300-10050-00

$1.61

61

BOLT, FLANGE (10X65)

96400-10065-00

$2.90
