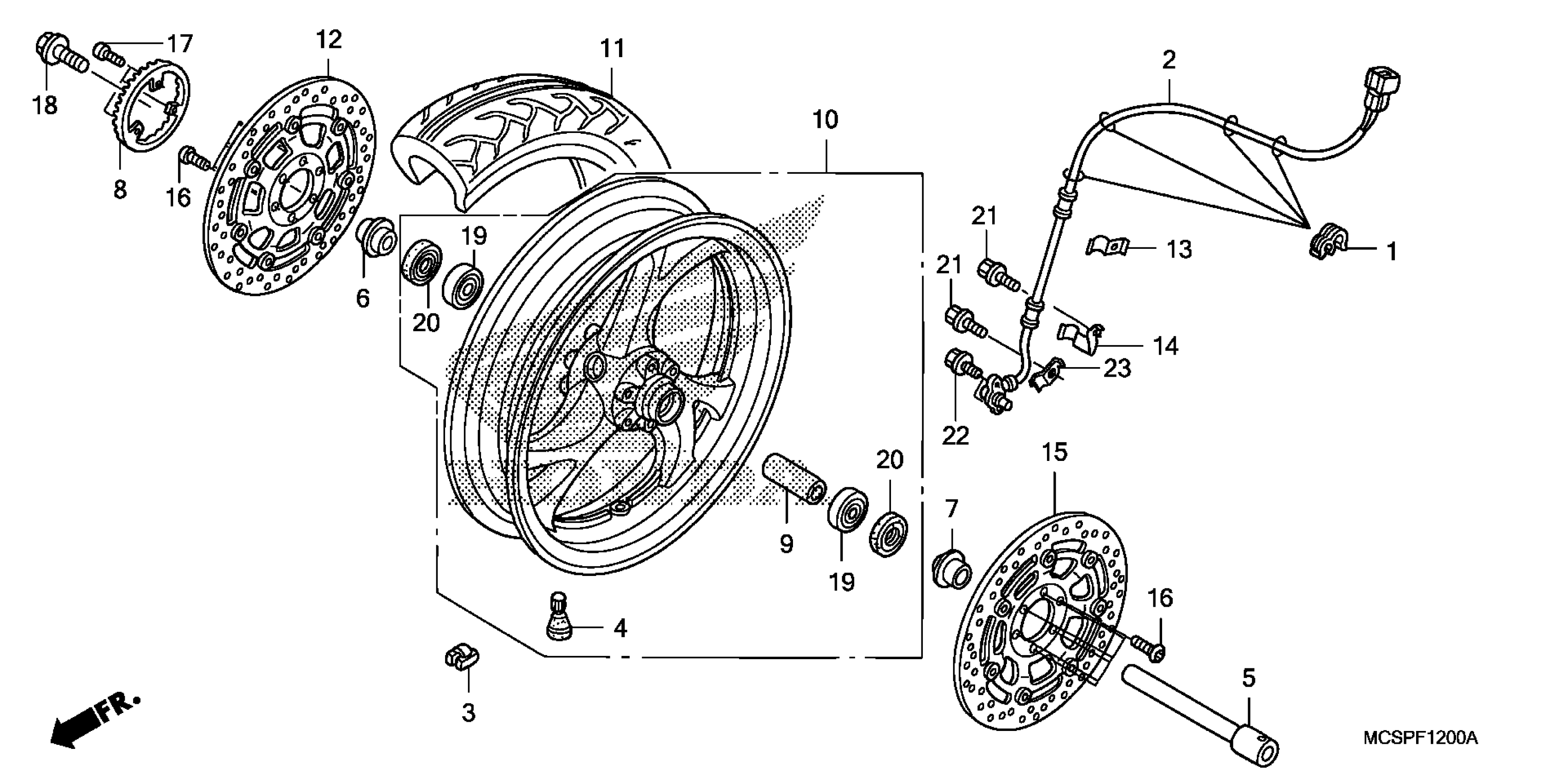

Honda ST1300PAA (06) ST1300PA, JPN, VIN# JH2SC517-6M400001 TO JH2SC517-6M499999 FRONT WHEEL Diagram

CLAMP, PIPE

17368-KV7-671

$2.22

SENSOR, FR. WHEEL SPEED

38520-MCS-G01

Unavailable

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30) WEIGHT, BALANCE (10G)

42706-MCF-D60

$14.48

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

AXLE, FR. WHEEL

44301-MCS-G01

$69.80

COLLAR, R. FR. WHEEL SIDE

44311-MCS-G00

$23.77

COLLAR, L. FR. WHEEL SIDE

44312-MCS-G00

$18.66

RING, FR. PULSER

44515-MCS-G01

Unavailable

COLLAR, FR. AXLE DISTANCE

44620-MCS-G00

$24.49

WHEEL SUB-ASSY., FR. (COO)

44650-MCS-306

$884.10

WHEEL SUB ASSY,FR This part replaces 44650-MCS-760.

44650-MCS-B90

$833.47

TIRE, FR. (120/70ZR18 M/C 59W) (BS) This part replaces 44711-MCS-G01.

44711-MCS-G04

$201.59

TIRE, FR. This part replaces 44711-MCS-G03.

44711-MCS-G08

$263.68

TIRE, FR. This part replaces 44711-MCS-G05.

44711-MCS-G08

$263.68

TIRE, FR. This part replaces 44711-MCS-G06.

44711-MCS-G08

$263.68

TIRE, FR. This part replaces 44711-MCS-G07.

44711-MCS-G08

$263.68

TIRE, FR. (120/70ZR18 M/C 59W) (BS)

44711-MCS-G04

$201.59

DISK, R. FR. BRAKE

45120-MCS-G01

$522.93

CLAMP

45158-MCP-900

$6.02

CLAMP, SPEED SENSOR CORD

45161-MCW-D10

$4.84

DISK, L. FR. BRAKE

45220-MCS-G01

$522.93

BOLT, DISK (6X17) (SAGA)

90106-MT3-003

$3.80

BOLT, TORX (5X10)

90131-KPB-751

$2.66

BOLT, FR. AXLE

90305-MCJ-000

$14.25

BEARING, RADIAL BALL (6205UU)

91053-MCS-G01

$14.29

DUST SEAL (34X52X10)

91252-MCS-G01

$11.31

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
