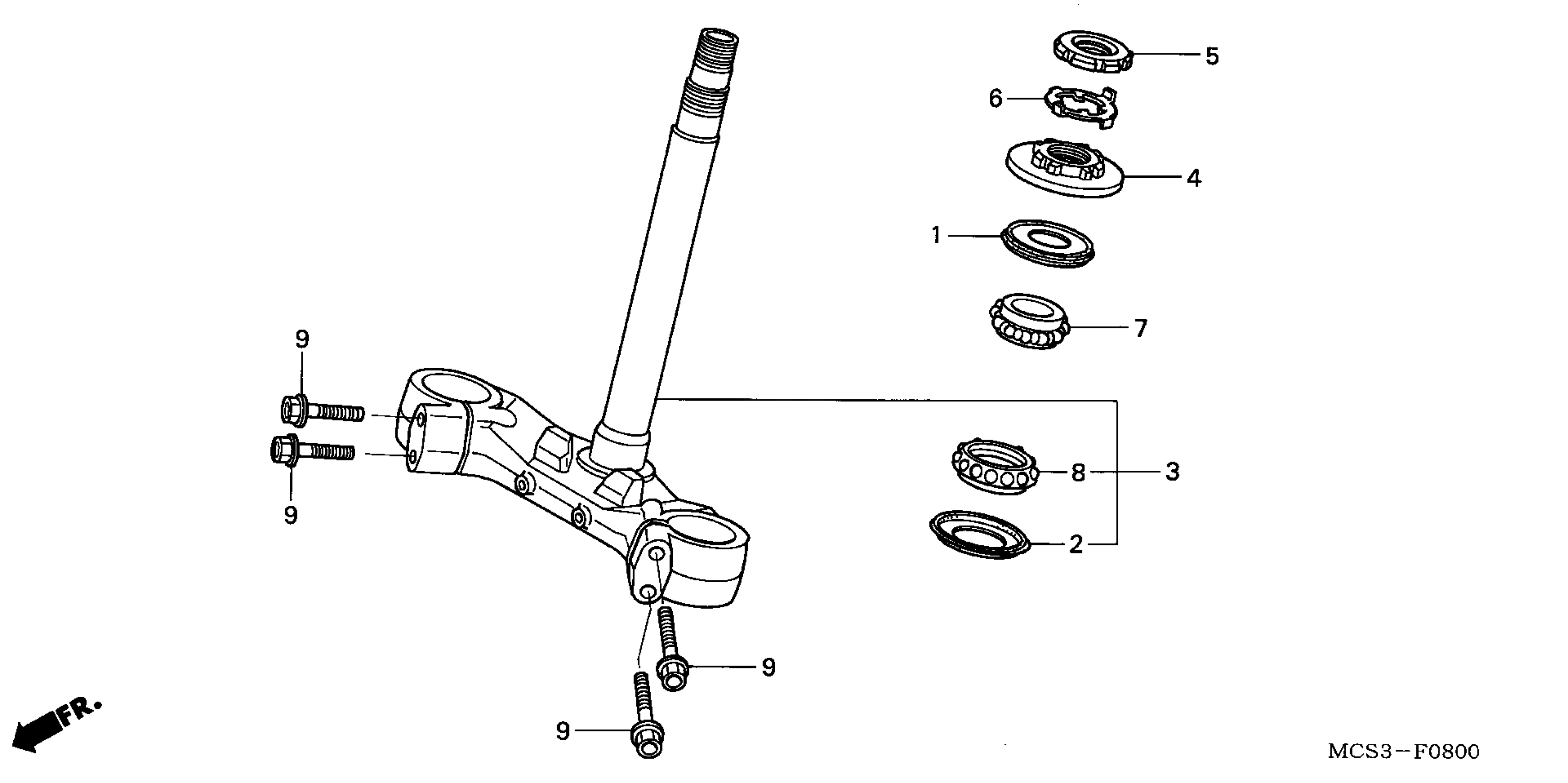

Honda ST1300AC (03) ST1300, JPN, VIN# JH2SC511-3M100001 TO JH2SC511-3M199999 STEERING STEM Diagram

#

Description

Price

1

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.32

2

DUST SEAL, STEERING HEAD

53214-371-010

$11.53

3

STEM SUB-ASSY., STEERING

53219-MCS-G00

$457.06

4

THREAD, STEERING HEAD TOP

53220-MCJ-D10

$14.69

5

THREAD, STEERING HEAD TOP (B) | Use up to Frame SN 3M100005 This part replaces 90302-MCJ-750.

90302-425-830

$19.95

5

THREAD B, STEERING HEAD TOP

90302-425-830

$19.95

6

WASHER, LOCK

90506-425-830

$6.73

7

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$32.59

8

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$32.59

9

BOLT, FLANGE (8X45) (SOURCE: VINTAGE PARTS INC.)

96300-08045-07

Unavailable
