Description

Price

1

MAINSHAFT (14T)

23211-MCS-000

$161.79

2

COUNTERSHAFT

23220-MCS-010

$152.13

3

GEAR, COUNTERSHAFT FIRST (36T)

23421-MCS-000

$114.66

4

GEAR, MAINSHAFT SECOND (18T)

23431-MCS-000

$56.10

5

GEAR, COUNTERSHAFT SECOND (31T)

23441-MCS-000

$112.39

6

COLLAR (30X11.2)

23442-MS2-610

$23.74

7

GEAR, MAINSHAFT THIRD (21T)

23451-MCS-000

$113.51

8

GEAR, COUNTERSHAFT THIRD (27T)

23461-MCS-000

$105.31

9

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

10

GEAR, MAINSHAFT FOURTH (24T)

23471-MCS-000

$102.74

11

GEAR, COUNTERSHAFT FOURTH (25T)

23481-MCS-000

$119.05

12

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$30.92

13

GEAR, MAINSHAFT FIFTH (29T)

23491-MCS-000

$107.54

14

COLLAR (28X13)

23495-MM5-000

$23.00

15

GEAR, COUNTERSHAFT FIFTH (25T)

23501-MCS-000

$113.51

16

WASHER, SPECIAL (22MM)

90451-MCS-000

$1.85

17

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

18

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

19

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

20

WASHER, THRUST (28MM)

90458-729-920

$5.34

21

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

22

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

23

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

24

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

25

CIRCLIP (28MM)

90603-MN4-000

$4.11

26

CIRCLIP (30MM)

90604-MM5-000

$4.48

27

BEARING, RADIAL BALL (31X65X16)

91002-MCS-003

$25.28

28

BEARING, SPECIAL RADIAL BALL (63/22)

91003-MCS-003

$25.74

29

BEARING, NEEDLE (22X26X11)

91026-MB4-003

$14.48

30

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49

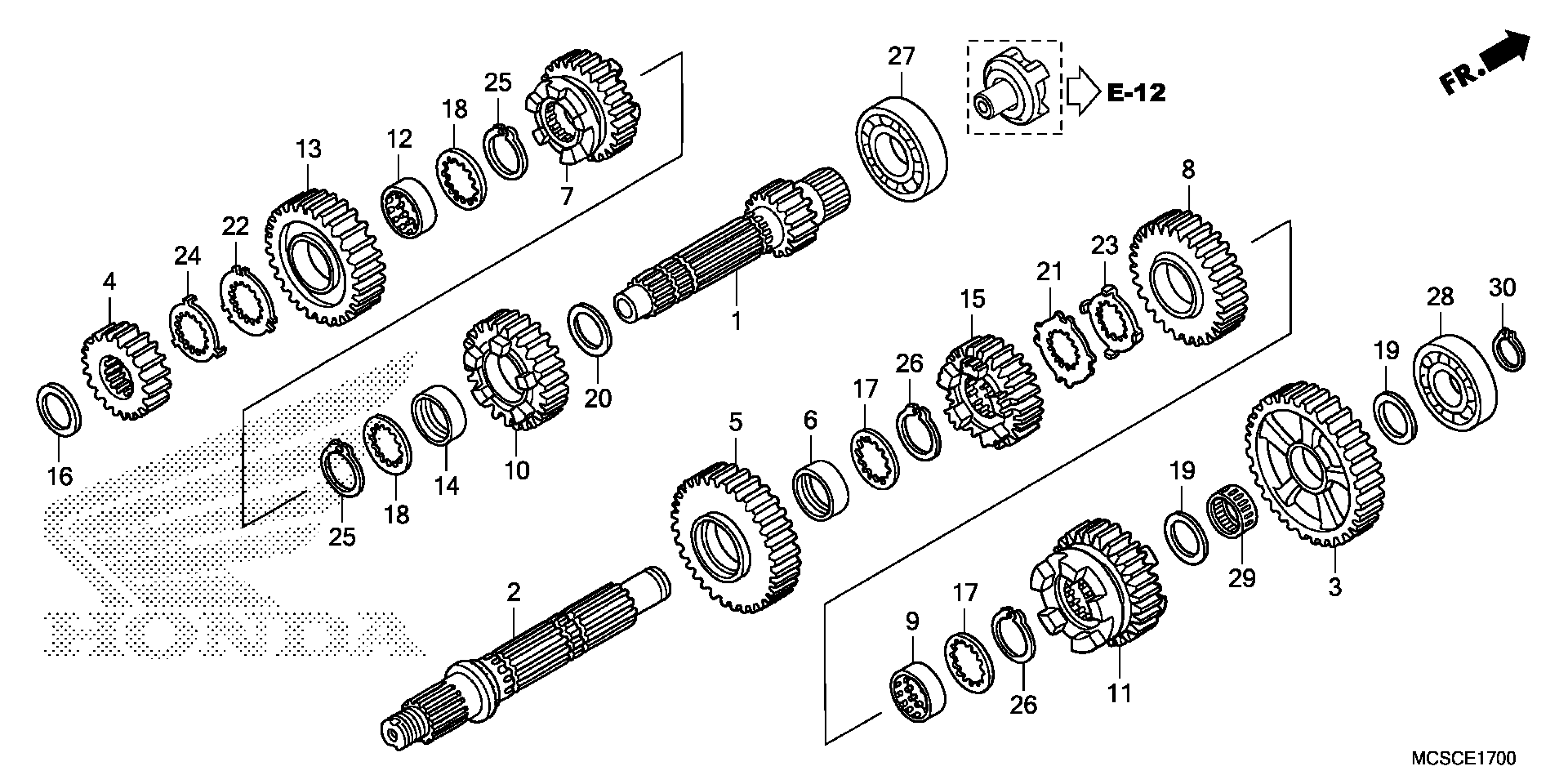

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 TRANSMISSION Diagram
