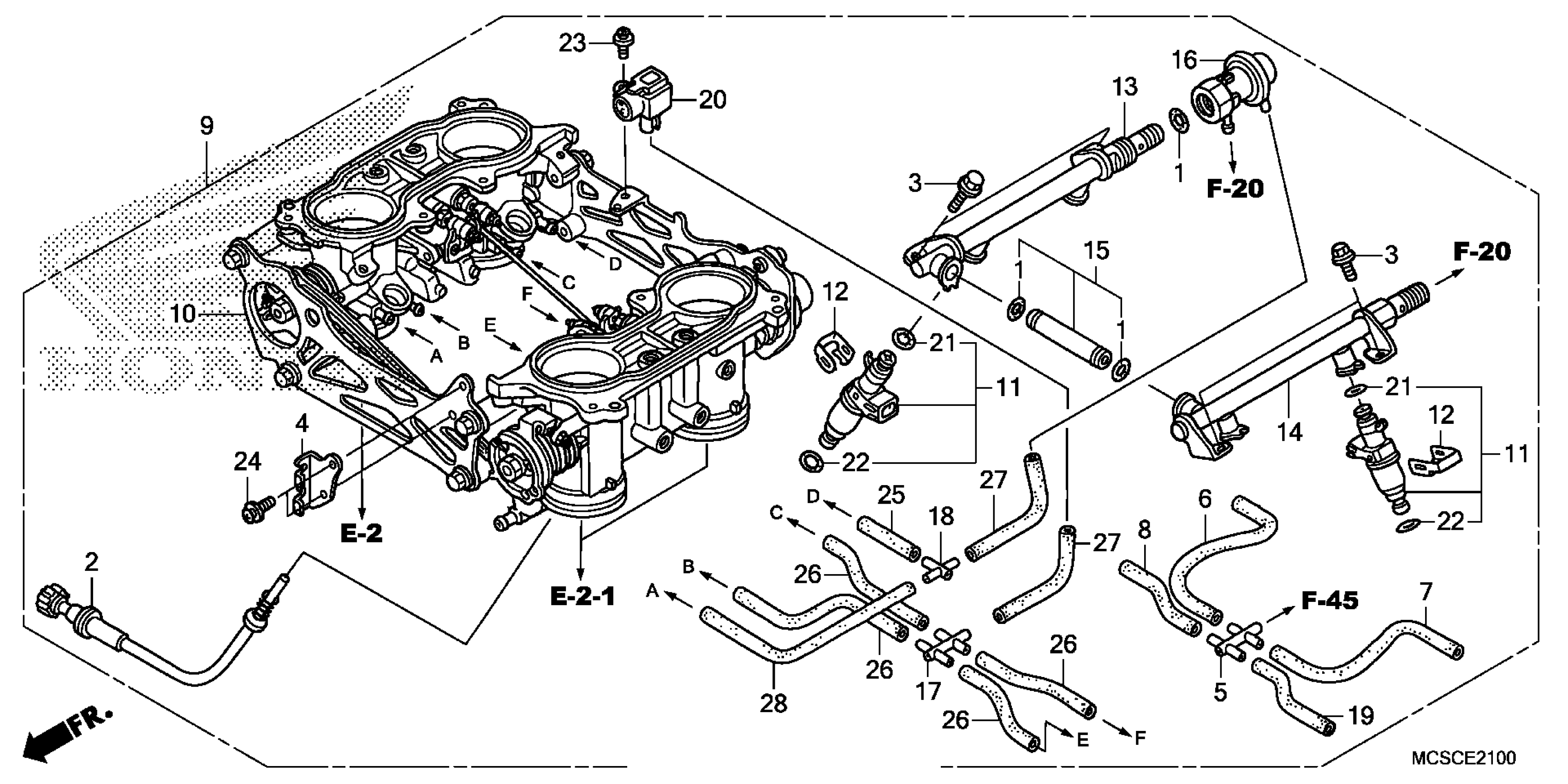

Honda ST1300AAC (13) MOTORCYCLE, JPN, VIN# JH2SC511-DK100001 THROTTLE BODY Diagram

#

Description
Price

1

GASKET SET

16010-MCS-003

$5.28

2

SCREW SET, STOP

16029-MCS-003

$36.00

3

BOLT, FLANGE (6X12)

16080-MCJ-003

$1.41

4

STAY, WIRE

16169-MCW-013

$9.41

5

T-JOINT

16180-ME5-761

$28.81

6

TUBE

16197-MBW-L11

$5.13

7

TUBE

16198-MCW-L01

$4.45

8

TUBE

16199-MCW-L01

$3.13

9

BODY ASSY., THROTTLE (GQ35B A)

16400-MCS-772

$2,086.57

10

BODY ASSY., THROTTLE

16401-MCS-771

$1,291.75

11

INJECTOR ASSY., FUEL

16450-MCS-003

$172.90

12

CLIP, INJECTOR

16451-PLC-000

$5.48

13

PIPE, R. FUEL

16610-MCS-003

$60.77

14

PIPE, L. FUEL

16620-MCS-003

$60.77

15

PIPE SET, FUEL

16630-MCS-003

$21.33

16

REGULATOR ASSY., PRESSURE

16740-MCF-013

$57.71

17

JOINT, FIVE-WAY

17201-MCJ-003

$7.73

18

JOINT A, VACUUM TUBE

17201-MG9-000

$14.31

19

TUBE

19199-MCW-L01

$2.38

20

SENSOR, MAP

37830-MCF-003

$185.50

21

O-RING (7.47X3.6)

91301-PLC-000

$2.89

22

O-RING (7.45X3.61) (NOK)

91302-PNA-003

$2.65

23

SCREW-WASHER (4X12)

93892-04012-00

$0.61

23

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$0.61

24

SCREW-WASHER (5X10)

93892-05010-00

$0.46

24

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$0.46

25

BULK HOSE, VACUUM (3.5X1000) (3.5X40)

95005-35001-20M

$8.69

26

BULK HOSE, VACUUM (3.5X1000) (3.5X90)

95005-35001-20M

$8.69

27

BULK HOSE, VACUUM (3.5X1000) (3.5X110)

95005-35001-20M

$8.69

28

BULK HOSE, VACUUM (3.5X1000) (3.5X150)

95005-35001-20M

$8.69
